Dome Event Marquees Range

The Extreme Marquee Dome is a visually striking marquee with an innovative space age design. The frame is made from strong tubular powder coated steel. Connectors join the tubular bars to form triangular cross sections, which join together to give this structure both its enormous strength and futuristic outer appearance. The dome tent has been engineered to be used in strong winds and adverse weather conditions. The interlocking sections form a grid that allows for exceptional stability and strength. The dome tent can be anchored to the ground by putting concrete weights on steel base plates or can be bolted into position when a more permanent installation is required. Due to the strength of this marquee lights and machinery can be easily attached to the frame. Other props and displays can also be attached to any part of the 180 degree arch. The dome tents skin is made from our highest quality imported Sioen PVC to ensure years of trouble free use. The dome tent canopy is made from literally hundreds of pieces of PVC that are welded together with state of the art PVC welding equipment. The PVC has flame retardant and is 100% waterproof. We have a large range of colours and can also make custom coloured fabric if required.

Dome Tents

  • 4m Diameter Dome Tent

    The 4m Dome offers a contemporary solution for your next event.

    Frame Specifications
    Size: 4m
    Ceiling Height: 2.4m
    Floor Space: 12.5 sq.m
    Stand up Capacity: 15
    Sit down Capacity: 10
    Door Size: 1.2mx1.8m
    Frame Material: Steel
    Frame Size: 20mm Diameter x 1.5mm thickness
    Installation Time (Hours): 4
    Personnel Required: 3
    Equipment Scaffold: 2.5m



    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    4m / 118Kg / 41Kg / 11Kg
    TOTAL 170Kg

    Printing

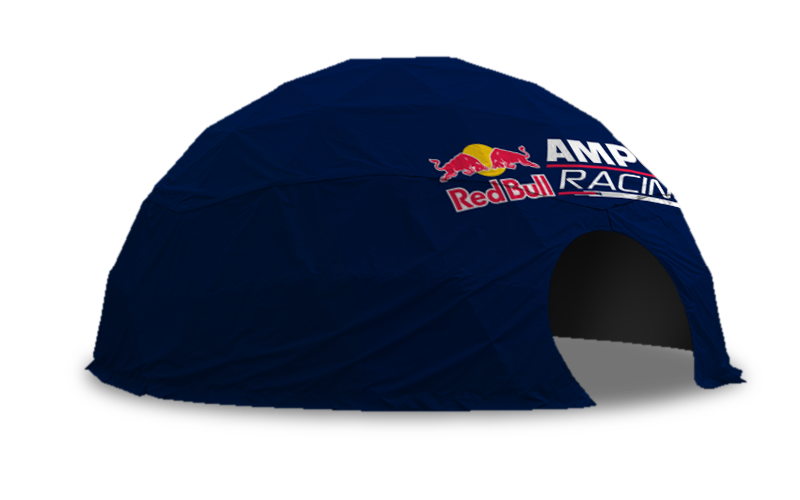

    Full Roof Digital Printing
    Please enquire

    Download PDF
    Dome Specification Sheet

  • 5m Diameter Dome Tent

    The 5m Dome offers a modern alternative for outdoor shelter.

    Frame Specifications
    Size: 5m
    Ceiling Height: 3m
    Floor Space: 17.8 sq.m
    Stand up Capacity: 24
    Sit down Capacity: 16
    Door Size: 1.2×1.8m
    Frame Material: Steel
    Frame Size: 20mm Diameter x 1.5mm thickness
    Installation Time (Hours): 4
    Personnel Required: 3
    Equipment Scaffold: 2.5m


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    5m / 141Kg / 64Kg / 14Kg
    TOTAL 218Kg

    Printing
    Full Roof Digital Printing
    Please enquire

    Download PDF
    Dome Specification Sheet

  • 6m Diameter Dome Tent

    The 6m Dome is a unique designed structure that provides a special look that is unlike any other. The framework provides a solid foundation for adverse weather conditions and creates a large open space within.

    Frame Specifications
    Size: 6m
    Ceiling Height: 3m
    Floor Space: 28 sq.m
    Stand up Capacity: 34
    Sit down Capacity: 23
    Door Size: 1.2×1.8m
    Frame Material: Steel
    Frame Size: 20mm Diameter x 1.5mm thickness
    Installation Time (Hours): 4
    Personnel Required: 4
    Equipment Scaffold: 2.5m


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    6m / 186Kg / 77Kg / 17Kg
    TOTAL 279Kg

    Printing
    Full Roof Digital Printing
    Please enquire

    Download PDF
    Dome Specification Sheet6m Instruction Manual

  • 7m Diameter Dome Tent

    The 7m Dome presents absolutely immaculate high quality finishes in a semi-permanent structure.

    Frame Specifications
    Size: 7m
    Ceiling Height: 3.5m
    Floor Space: 38 sq.m
    Stand up Capacity: 46
    Sit down Capacity: 31
    Door Size: 1.5×2.1m
    Frame Material: Steel
    Frame Size: 20mm Diameter x 1.5mm thickness
    Installation Time (Hours): 5
    Personnel Required: 4
    Equipment Scaffold: 2.5m


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    7m / 220Kg / 105Kg / 19Kg
    TOTAL 344Kg

    Printing
    Full Roof Digital Printing
    Please enquire

    Download PDF
    Dome Specification Sheet

  • 8m Diameter Dome Tent

    The 8m Dome offers a functional area with no redundant corners. The sturdy frame is functional and creates an incredible visual presence at every event it hosts.

    Frame Specifications
    Size: 8m
    Ceiling Height: 4m
    Floor Space: 50 sq.m
    Stand up Capacity: 60
    Sit down Capacity: 40
    Door Size: 1.5×2.1m
    Frame Material: Steel
    Frame Size: 25mm Diameter x 1.5mm thickness
    Installation Time (Hours): 5
    Personnel Required: 5
    Equipment Scaffold: 2.5m


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    8m / 321Kg / 137Kg / 22Kg
    TOTAL 479Kg

    Printing
    8m Dome Artwork Template

    Download PDF
    Dome Specification Sheet
    Dome Engineer Certification
    8m Instruction Manual

  • 9m Diameter Dome Tent

    The 9m Dome offers a innovative, functional area, creating an incredible visual presence at every event it hosts.

    Frame Specifications
    Size: 9m
    Ceiling Height: 4m
    Floor Space: 63 sq.m
    Stand up Capacity: 76
    Sit down Capacity: 51
    Door Size: 1.5mx2.1m
    Frame Material: Steel
    Frame Size: 25mm Diameter x 1.5mm thickness
    Installation Time (Hours): 5
    Personnel Required: 5
    Equipment Scaffold: 3m


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    9m / 397Kg / 155Kg / 25Kg
    TOTAL 576Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 10m Diameter Dome Tent

    The 10m Dome sits in the middle of the range and covers a huge 10m diameter. The solid framework and tough PVC cover work together to create a visually striking structure that is never short of attention.

    Frame Specifications
    Size: 10m
    Ceiling Height: 4.5m
    Floor Space: 78 sq.m
    Stand up Capacity: 94
    Sit down Capacity: 63
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 25mm Diameter x 1.5mm thickness
    Installation Time (Hours): 6
    Personnel Required: 6
    Equipment Scaffold: 3.5m


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    10m / 498Kg / 191Kg / 27Kg
    TOTAL 716Kg

    Printing
    Full Roof Digital Printing
    Please enquire

    Download PDF
    Dome Engineer Certification
    Dome Specification Sheet
    10m Instruction Manual

  • 11m Diameter Dome Tent

    The solid framework of the 11m Dome combined with a strong PVC cover work together to create a visually striking structure.

    Frame Specifications
    Size: 11m
    Ceiling Height: 4.9m
    Floor Space: 95 sq.m
    Stand up Capacity: 114
    Sit down Capacity: 76
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 25mm Diameter x 1.5mm thickness
    Installation Time (Hours): 7
    Personnel Required: 6
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    11m / 534Kg / 231Kg / 30Kg
    TOTAL 795Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 12m Diameter Dome Tent

    The 12m Dome offers great street presence and creates a magnificent first impression.

    Frame Specifications
    Size: 12m
    Ceiling Height: 6m
    Floor Space: 113 sq.m
    Stand up Capacity: 136
    Sit down Capacity: 90
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 25mm Diameter x 1.5mm thickness
    Installation Time (Hours): 8
    Personnel Required: 6
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    12m / 736Kg / 308Kg / 33Kg
    TOTAL 1076Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 13m Diameter Dome Tent

    The 13m Dome is perfect for those desiring a structure with spacious interiors and impeccable quality.

    Frame Specifications
    Size: 13m
    Ceiling Height: 5.8m
    Floor Space: 132 sq.m
    Stand up Capacity: 156
    Sit down Capacity: 106
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 32mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 6
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    13m / 940Kg / 322Kg / 35Kg
    TOTAL 1297Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 14m Diameter Dome Tent

    The 14m Dome is impeccably designed, presenting quality finishes and the flexibility to create multiple layouts inside for your next event.

    Frame Specifications
    Size: 14m
    Ceiling Height: 7m
    Floor Space: 154 sq.m
    Stand up Capacity: 185
    Sit down Capacity: 123
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 32mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 6
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    14m / 1308Kg / 419Kg / 38Kg
    TOTAL 1765Kg

    Printing
    Full Roof Digital Printing
    Please enquire

    Download PDF
    Dome Engineer Certification
    Dome Specification Sheet
    14m Instruction Manual

  • 15m Diameter Dome Tent

    The 15m Dome is a huge hemisphere structure designed to generate attention, provide a sturdy shade solution and offer generous space.

    Frame Specifications
    Size: 15m
    Ceiling Height: 6.19m
    Floor Space: 176 sq.m
    Stand up Capacity: 212
    Sit down Capacity: 141
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 32mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 6
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    15m / 1201Kg / 397Kg / 40Kg
    TOTAL 1637Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 16m Diameter Dome Tent

    The impressive engineered designed 16m Dome boasts style and sophistication, creating an incredible atmosphere for your functions.

    Frame Specifications
    Size: 16m
    Ceiling Height: 6.59m
    Floor Space: 200 sq.m
    Stand up Capacity: 241
    Sit down Capacity: 161
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 32mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 8 (Frame) 12 (Fabric)
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    16m / 1269Kg / 451Kg / 43Kg
    TOTAL 1763Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 17m Diameter Dome Tent

    The 17m Dome showcases clever, modern design focusing on stylish, spacious entertaining.

    Frame Specifications
    Size: 17m
    Ceiling Height: 6.62m
    Floor Space: 243 sq.m
    Stand up Capacity: 272
    Sit down Capacity: 182
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 32mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 8 (Frame) 12 (Fabric)
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    17m / 1474Kg / 481Kg / 45Kg
    TOTAL 2000Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 18m Diameter Dome Tent

    The 18m Dome is an exquisitely designed structure offering superb modern comfort, guaranteed to impress.

    Frame Specifications
    Size: 18m
    Ceiling Height: 7.42m
    Floor Space: 254 sq.m
    Stand up Capacity: 305
    Sit down Capacity: 204
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 38mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 8 (Frame) 12 (Fabric)
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    18m / 1653Kg / 571Kg / 48Kg
    TOTAL 2272Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 19m Diameter Dome Tent

    The 19m Dome has generous 283sqm with abundant opportunity to create a sensational event.

    Frame Specifications
    Size: 19m
    Ceiling Height: 7.84m
    Floor Space: 283 sq.m
    Stand up Capacity: 340
    Sit down Capacity: 227
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 38mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 8 (Frame) 12 (Fabric)
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    19m / 1735Kg / 636Kg / 51Kg
    TOTAL 2421Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification Sheet

  • 20m Diameter Dome Tent

    The 20m Dome is an immense structure that commands attention. Covering a clear span diameter of 20m across, this dome structure is a sight to behold.

    Frame Specifications
    Size: 20m
    Ceiling Height: 8.27m
    Floor Space: 314 sq.m
    Stand up Capacity: 377
    Sit down Capacity: 251
    Door Size: 2.4mx2.4m
    Frame Material: Steel
    Frame Size: 38mm Diameter x 2mm thickness
    Installation Time (Hours): 8
    Personnel Required: 8 (Frame) 12 (Fabric)
    Equipment Scaffold Crane: 20 Ton Crane


    Package Includes
    Steel Pins


    Roof Fabrics
    580GSM PVC


    PVC Standard Colours

    Frame Colour

    Size / Frame / Roof PVC / Bearing Bar Weight;
    20m / 1882Kg / 707Kg / 54Kg
    TOTAL 2642Kg

    Printing
    Full Roof Digital Printing

    Download PDF
    Dome Specification SheetDome Engineer Certification

Dome Tents Dimensions

Spec Sheets & Certification

Product Specification Sheets
Dome Specification Sheet

Engineer Certification
Dome Engineer Certification

Fabric Certification

Instruction Manuals
6m Instruction Manual
8m Instruction Manual
10m Instruction Manual
14m Instruction Manual

Why choose Dome Tents?

Our Dome tent range has proven to be one of our most robust and unique looking event marquees ever produced. Used on Mt Everest this structure offers incredible stability and usable space. Its diametrical tetrahedral design means the structure can withstand adverse weather conditions where standard structures cannot. The Dome marquee can be branded for those wanting to promote their brand.

Speak to us and discover
our products today

Pick up the phone and call us on 1300 850 832 to talk to one of our helpful and friendly staff
if you are in Sydney, Melbourne, Brisbane, Adelaide, Canberra, Perth or anywhere else in Australia!




Order a hard copy of our Product Brochure - It's Free
