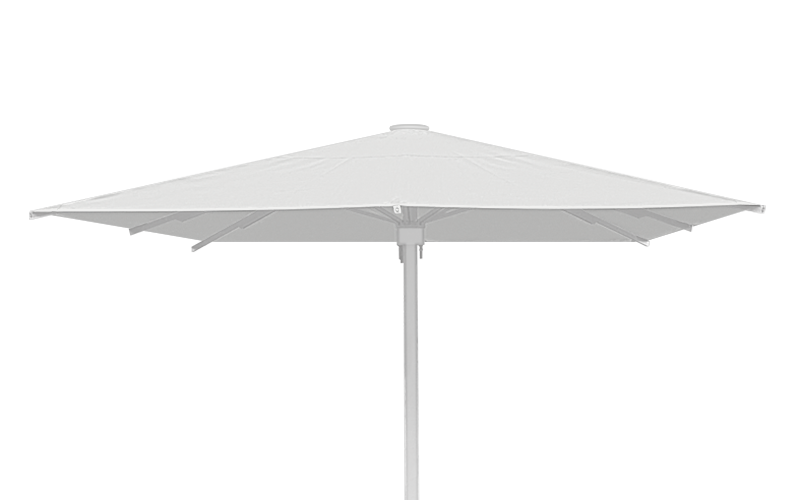

100 Series Umbrella
The Spanish 100 Series is a commercial grade umbrella. Starting with its unique 90 degree hinged base plate. This series is a large and heavy structure; however, due to this innovative hinged base design, umbrella installation is a breeze. The 100mm diameter pole offers exceptional strength and is visually stunning. The 100 Series is available in Recasens fabric, a 130 year established company that designs, engineers and produces some of the highest quality outdoor textiles internationally available. Custom printing is also available to print logos and restaurant and resorts names.
Sizes
3m x 3m Square
FROM $3,745
Frame: Aluminium
Frame Colour: White
Pole Size: 100 x 100 x 3mm
Inner Pole: 72 x 72 x 1.8mm
Ribs: 12pcs
Rib Size: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 10kg Steel Plate
Height: 3.8m
Clearance: 2.3m
Arm Span: 2m
Frame Weight: 88kg
Roof Weight: 11kg
4m x 4m Square
FROM $4,525
Frame: Aluminium
Frame Colour: White
Pole Size: 100 x 100 x 3mm
Inner Pole: 72 x 72 x 1.8mm
Ribs: 12pcs
Rib Size: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 10kg Steel Plate
Height: 3.8m
Clearance: 2.3m
Arm Span: 2m
Frame Weight: 88kg
Roof Weight: 11kg
5m x 5m Square
FROM $5,040
Frame: Aluminium
Frame Colour: White
Pole Size: 100 x 100 x 3mm
Inner Pole: 72 x 72 x 1.8mm
Ribs: 12pcs
Rib Size: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 10kg Steel Plate
Height: 4.2m
Clearance: 2.3m
Arm Span: 2m
Frame Weight: 120kg
Roof Weight: 12kg
Octagonal 4m Diameter
FROM $3,930
Frame: Aluminium
Frame Colour: White
Pole Size: 100 x 100 x 3mm
Inner Pole: 72 x 72 x 1.8mm
Ribs: 12pcs
Rib Size: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 10kg Steel Plate
Height: 3.8m
Clearance: 2.3m
Arm Span: 1.9m
Frame Weight: 88kg
Roof Weight: 11kg
Octagonal 5m Diameter
FROM $4,400
Frame: Aluminium
Frame Colour: White
Pole Size: 100 x 100 x 3mm
Inner Pole: 72 x 72 x 1.8mm
Ribs: 12pcs
Rib Size: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 10kg Steel Plate
Height: 3.8m
Clearance: 2.3m
Arm Span: 2.5m
Frame Weight: 120kg
Roof Weight: 12kg
Printing and Fabrics

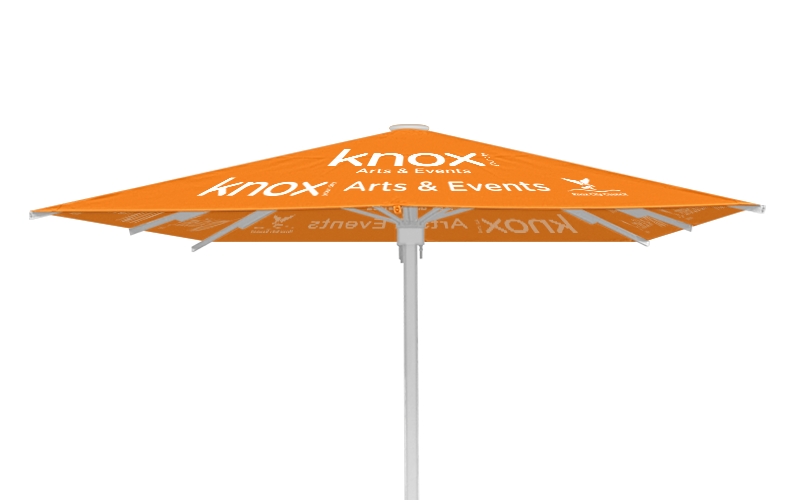

We offer custom printing on a wide range of products. Don’t forget to checkout our available print packages!
Spanish Recasens
Extreme Marquees imports the highest quality fabric from the Recasens brand located in Spain. The fabric is a high-performance solution-dyed and fade resistant canvas that has been optimized for high tensile and tear strength. The Recasens brand has been manufacturing high quality fabrics in Spain since 1886.
Screen Printing
Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities. Extreme Marquees charges the same price for all printing methods. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.
UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design.
Sublimination Printing
Sublimation printing, also known as dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the marquee fabric and exposed to a temperature of 200 degrees celsius. The artwork is then transferred from the paper to the marquee fabric.
Ready to find out more?
Videos
Extreme Marquees have an extensive range of commercial and residential outdoor umbrella solutions. We design and manufacture premium, high quality umbrellas, built strong and robust to guarantee years of use under the hot Australian sun. There is an umbrella to suit all needs. Extreme Marquees offers an extensive range of extruded marine grade aluminium umbrellas ranging from our 2×2 metres heavy duty PVC umbrella all the way up to our 200 series 6 metre diameter umbrella. The quality of the frames are evident at a glance with the imported commercial grade fabrics enhancing both style and visual appeal.
A variety of frame strengths and fabrics provides the perfect blend for your customised bespoke umbrella. Choose from the popular circular 100mm diameter pole of the 100 Series to the heavy duty 200 series 105mm diameter pole.
Also available in our commercial range of umbrellas is the HD PVC. This series is constructed with white blockout heavy duty PVC used in the construction of large event marquees. The PVC canopy will last more than a decade enduring the harsh Australian weather 24/7, 365 days a year. The blockout PVC can be washed clean regularly, leaving it looking as good as the day it was purchased. The HD PVC range and the 200 Series commercial grade umbrellas both have structural engineer’s certification which is necessary if installation is in a public place. The HD PVC commercial umbrella has an advanced, internal, reinforced frame. The distinctively engineered pole design offers incredible strength resulting in safety of operation and long term durability.
