Description

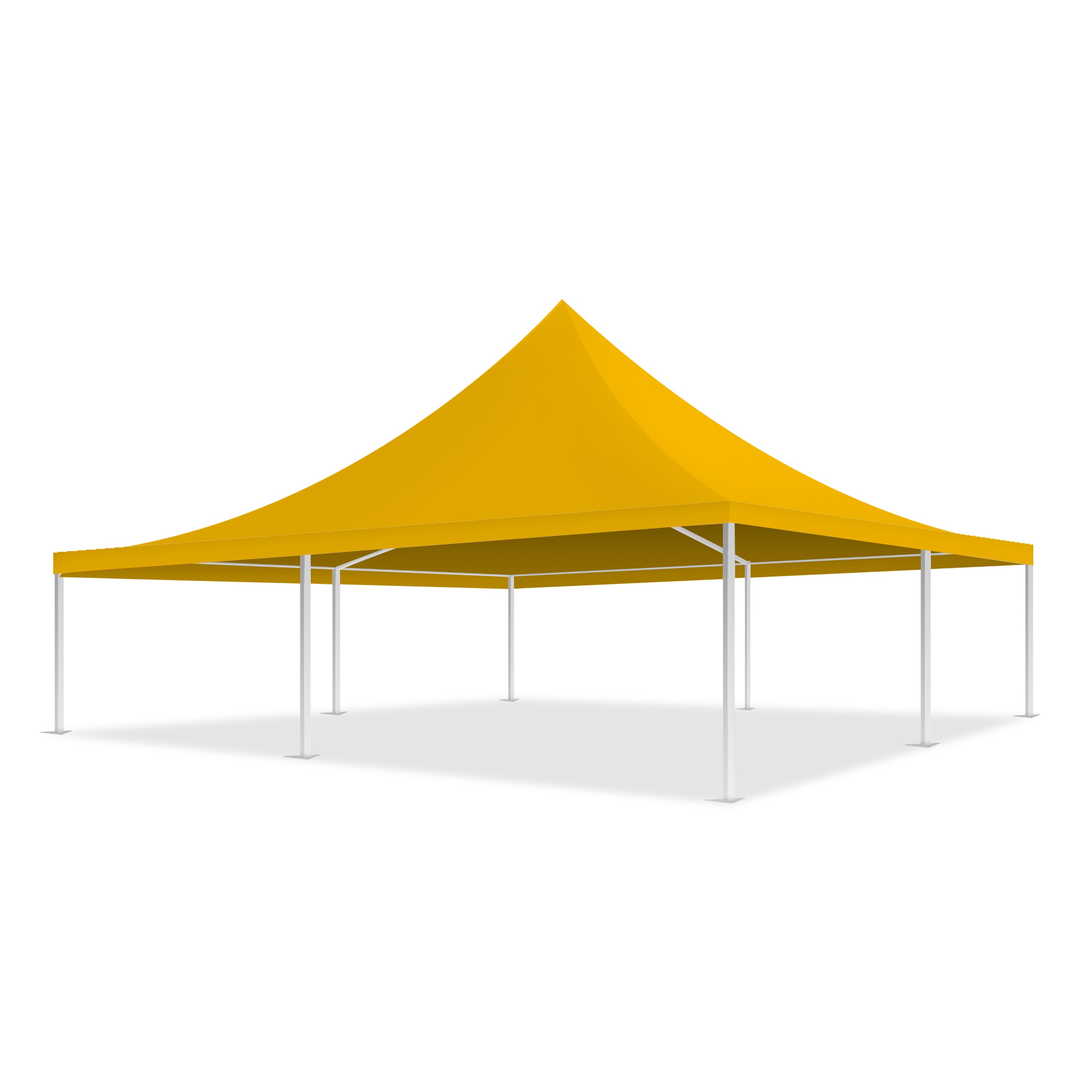

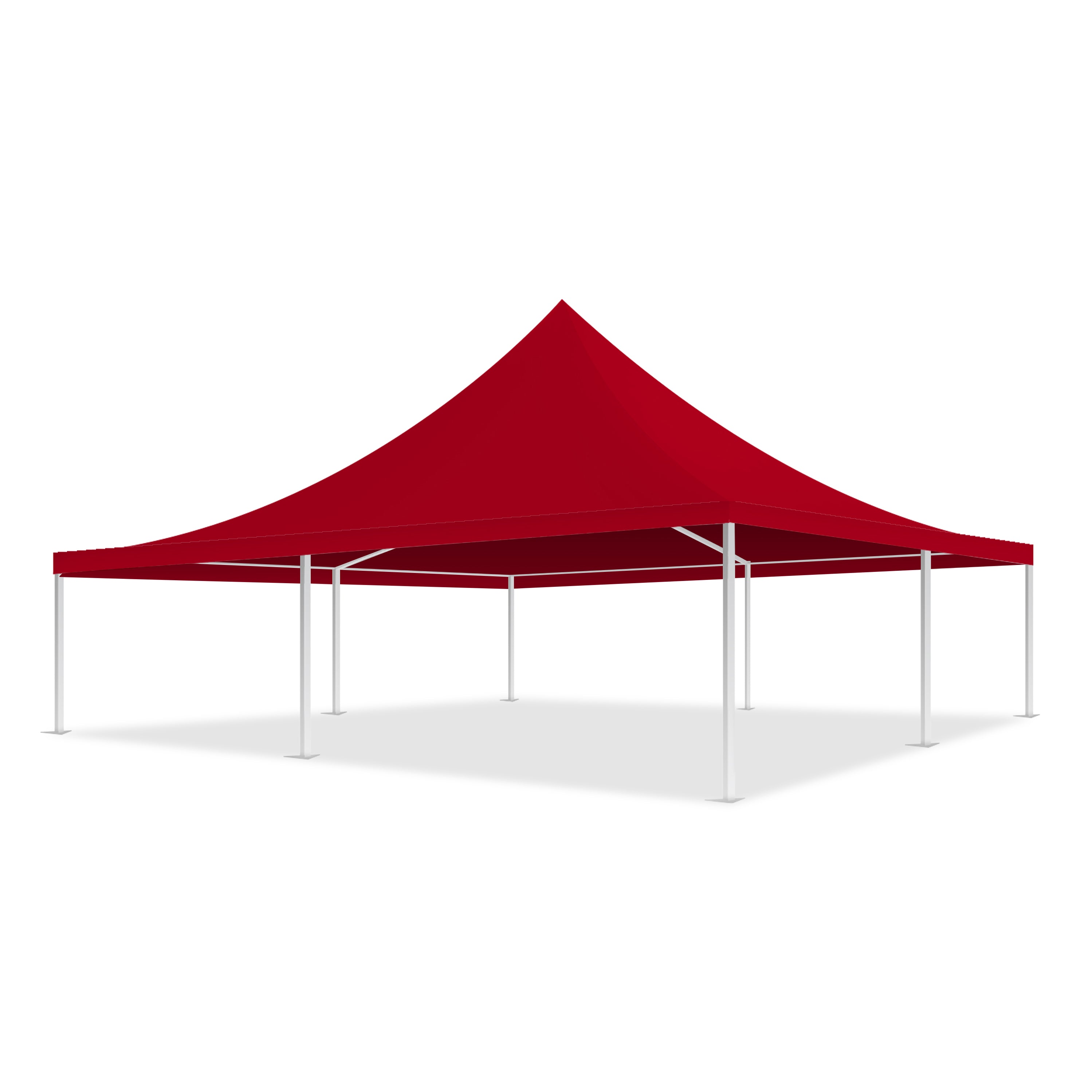

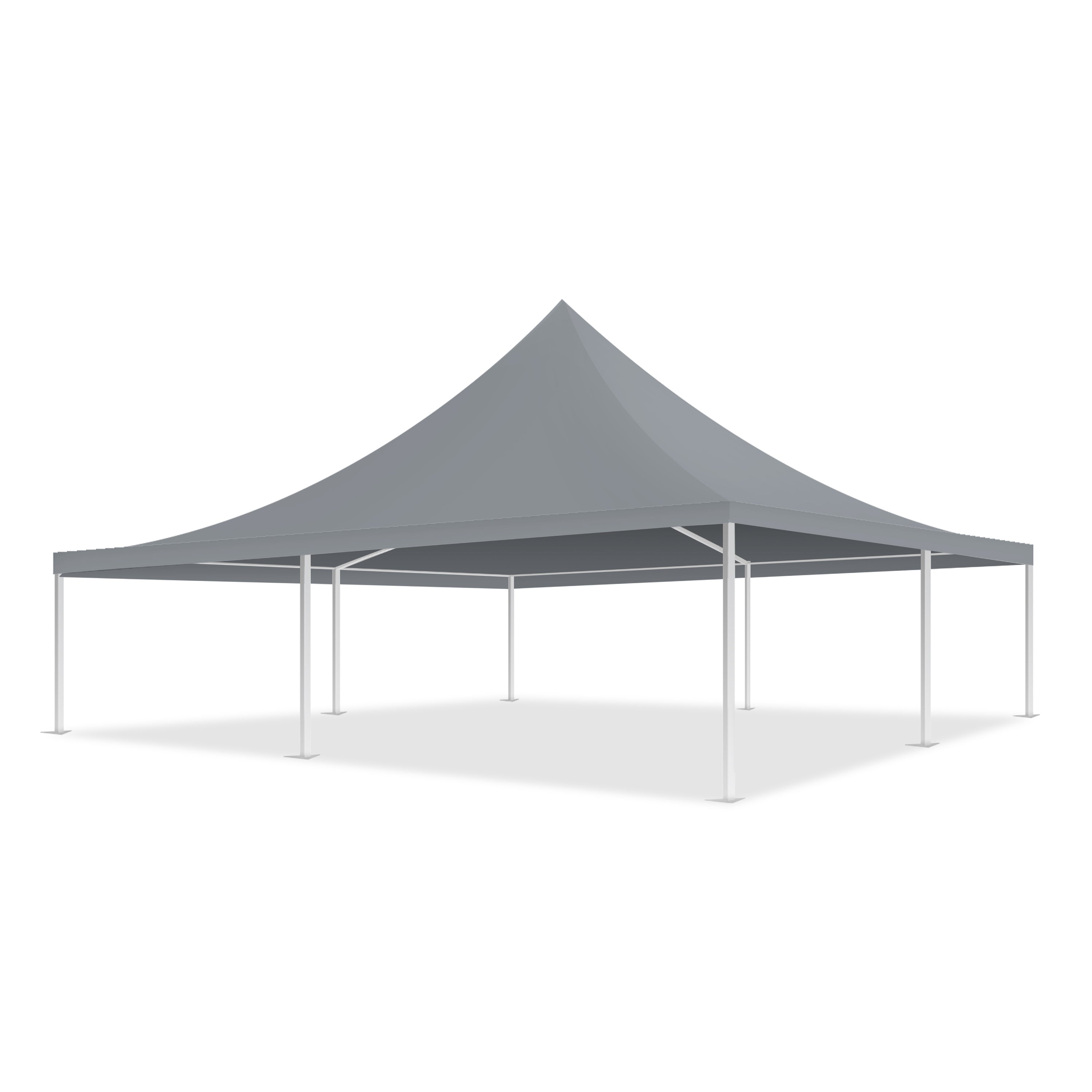

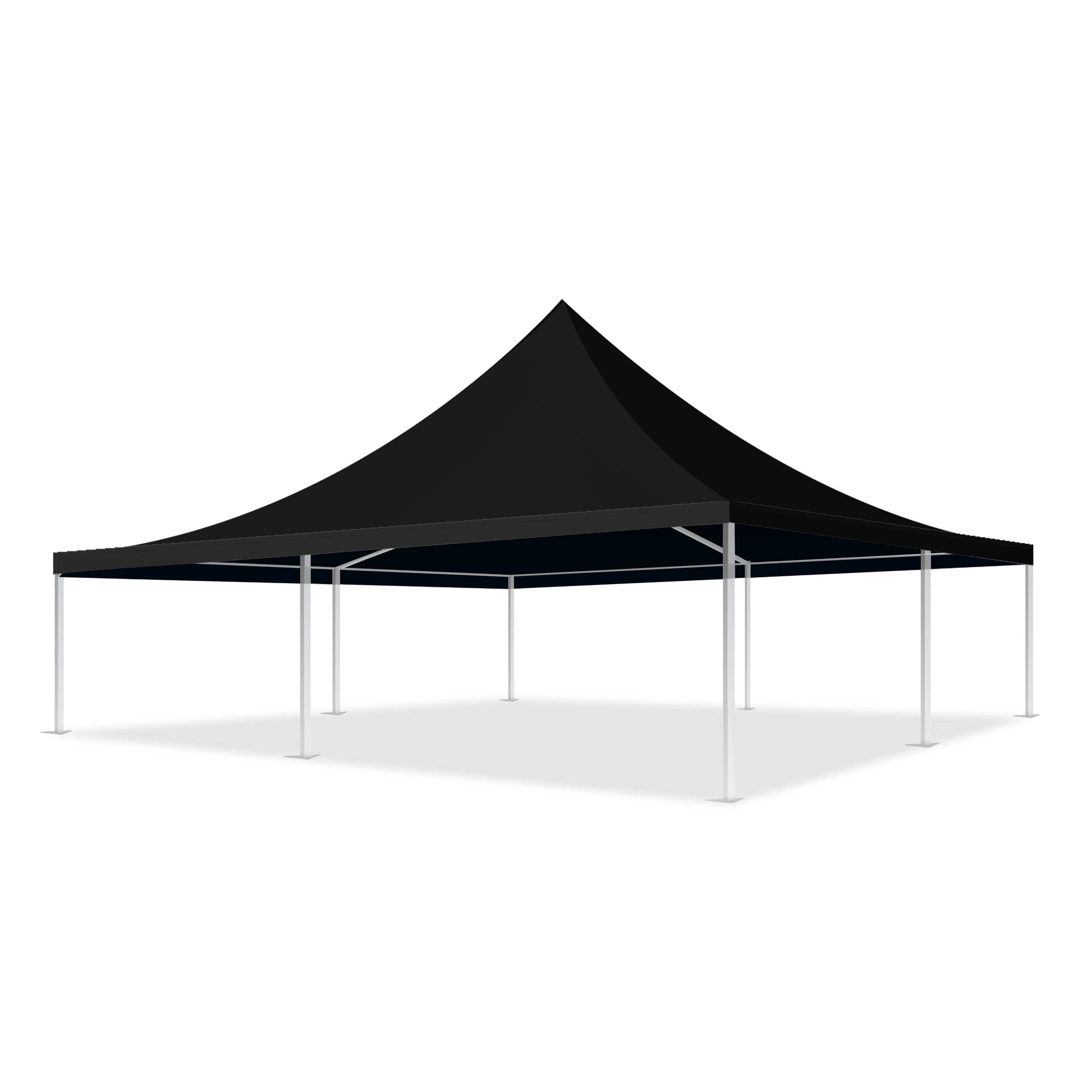

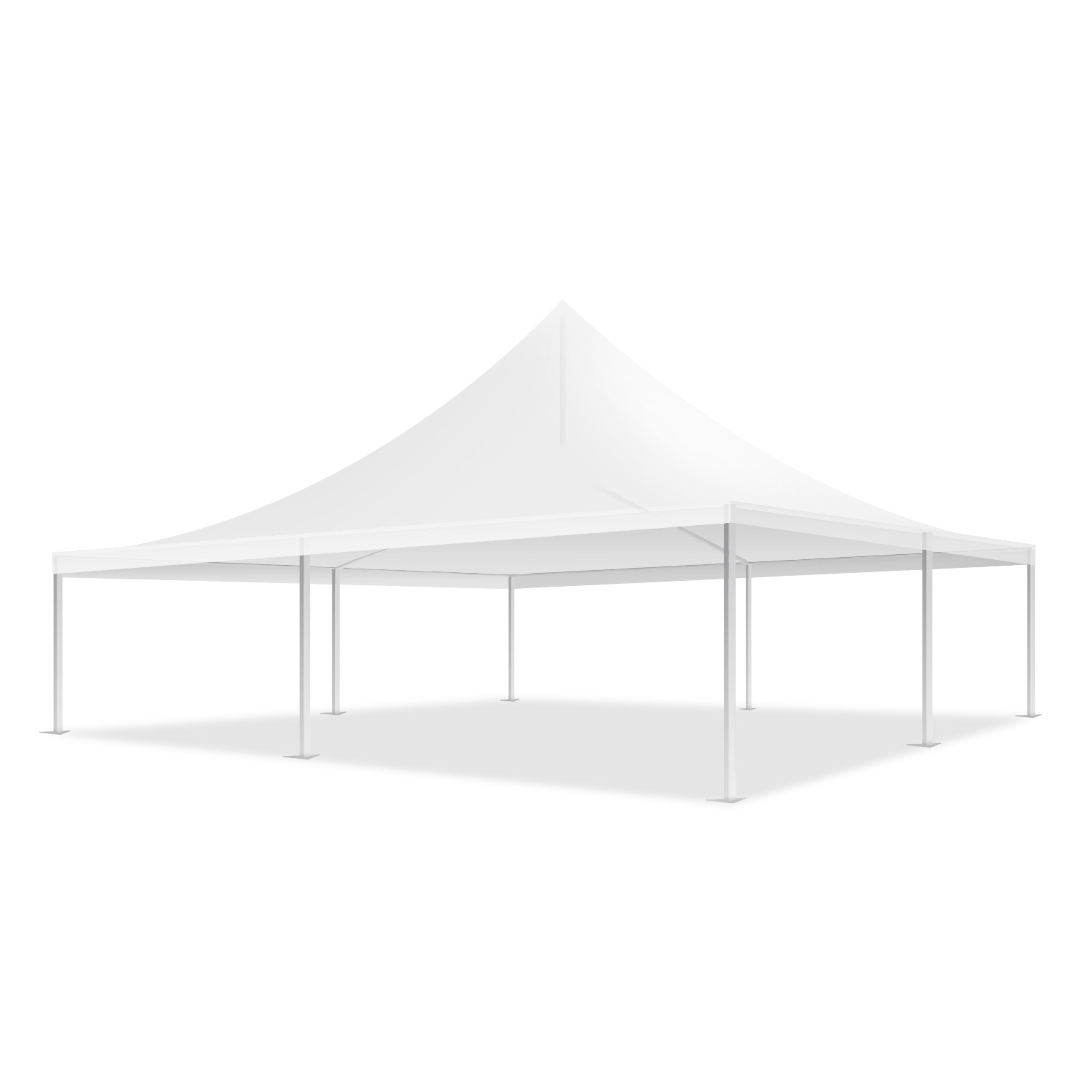

Pinnacle 10m x 10m
The 10m x 10m Pinnacle Semi-Permanent Tent offers a durable, all-weather shelter for long-term outdoor use. Built with a heavy-duty aluminium frame and premium roofing, it’s ideal for hospitality, resort, and commercial event spaces seeking a stylish, low-maintenance, and reliable outdoor structure.
Oversize product. Forklift or HIAB required for delivery.
Package Includes: Frame, roof, steel pins & steel pin pullers.
Features
• 122mm aluminium frame profile
• Iconic pagoda-style design
• Threaded rod tensioner
Specification Sheet Download > Instruction > 10m Engineer Cert >
| Specifications | 10m x 10m |
| Eave Height | 2.6m |
| Ridge Height | 6.8m |
| Clearance | 2m |
| Pitch Height | 2.2m |
| Frame Profile | 122 x 68 x 5.5mm |
| Max Allowed Windspeed | 80km/hr | 0.3kn/m2 |
| Eave Connection | Hot-dip galvanized steel insert |
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13Hw) |
| Frame Weight | 567kg |
| Roof Weight | 70.5kg |
| Roof Fabric | 950gsm clear PVC 850gsm white PVC 750gsm coloured PVC 650gsm white PVC walls |
| Frame Warranty | 10 years |
| Roof Warranty | 2 years clear PVC / 5 years white & coloured PVC |
