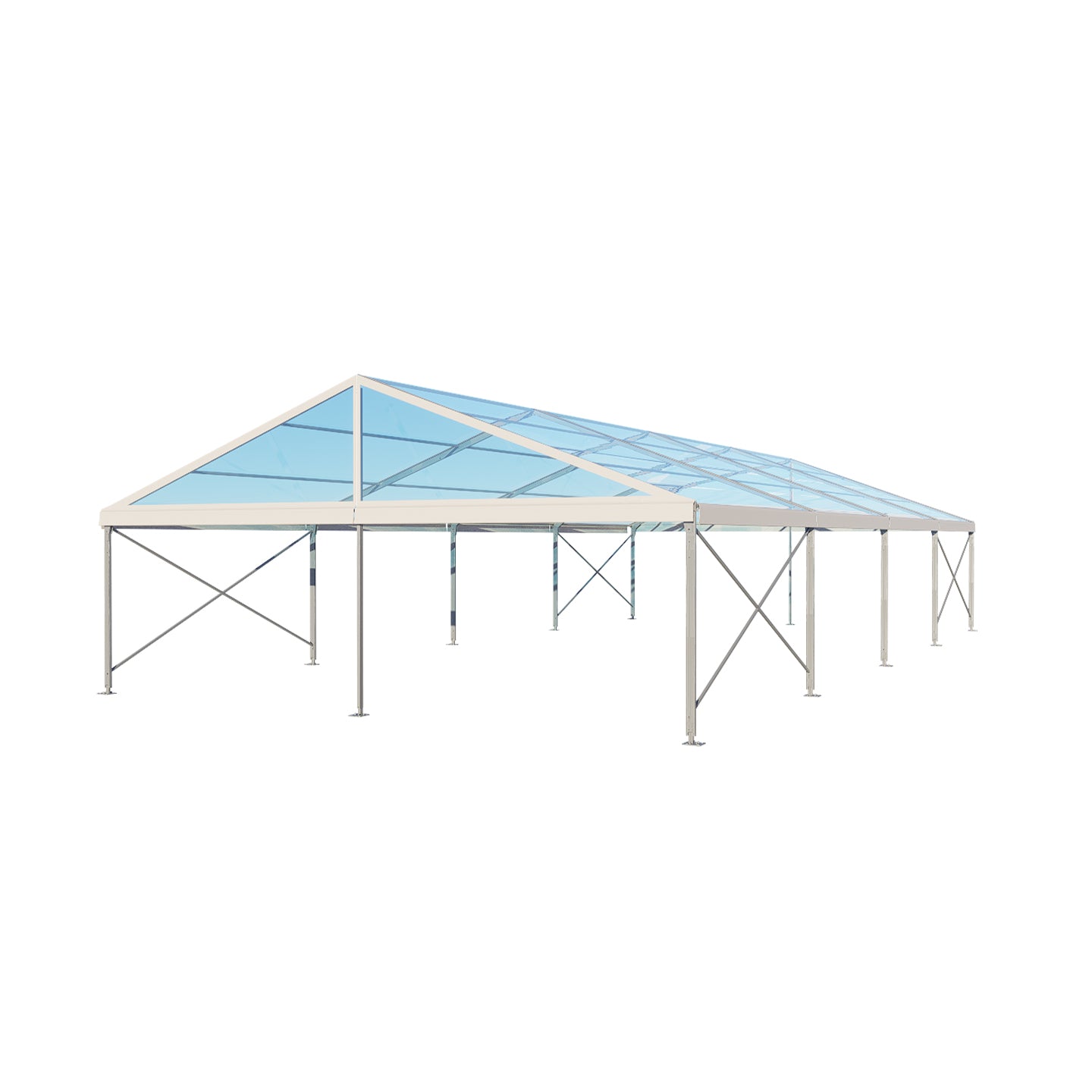

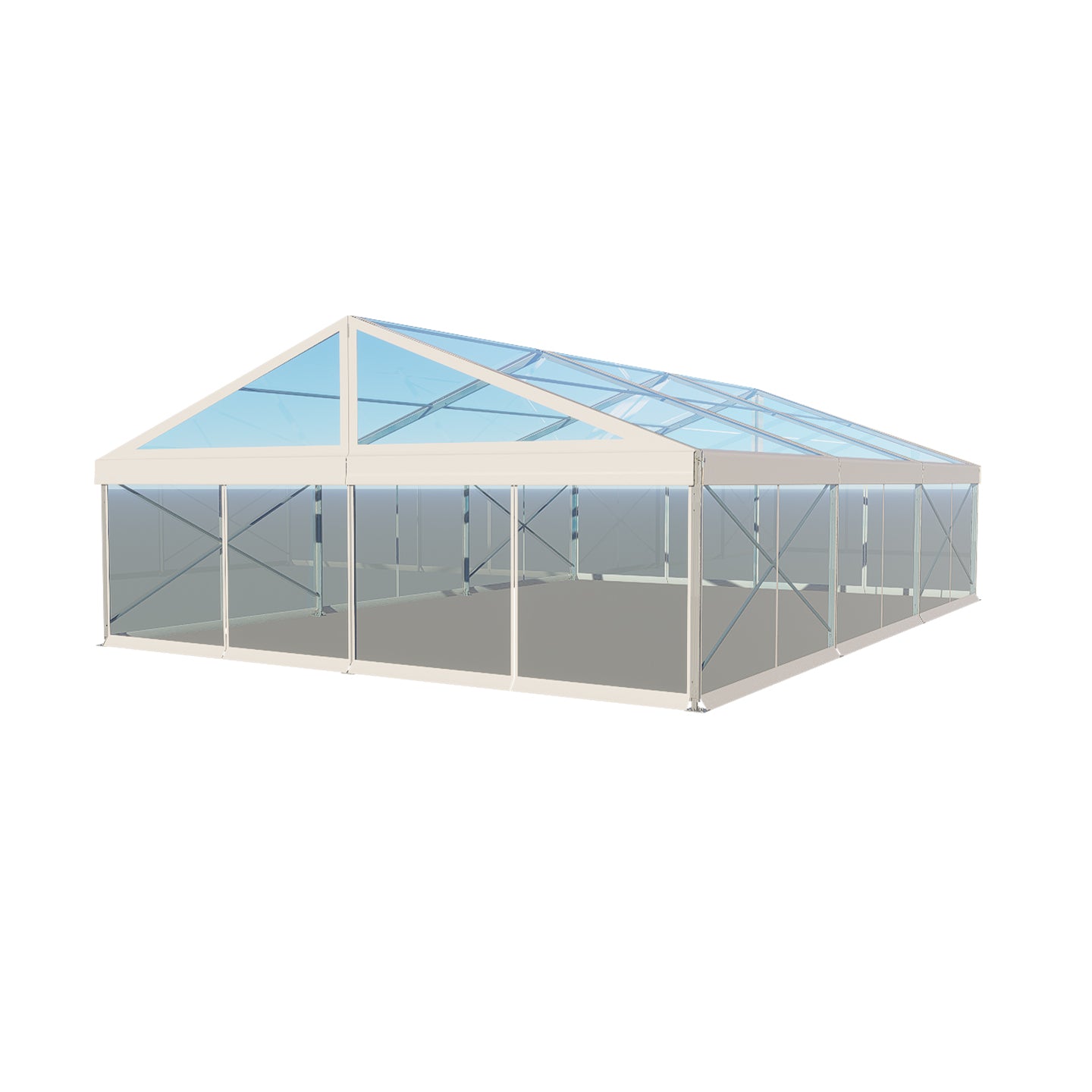

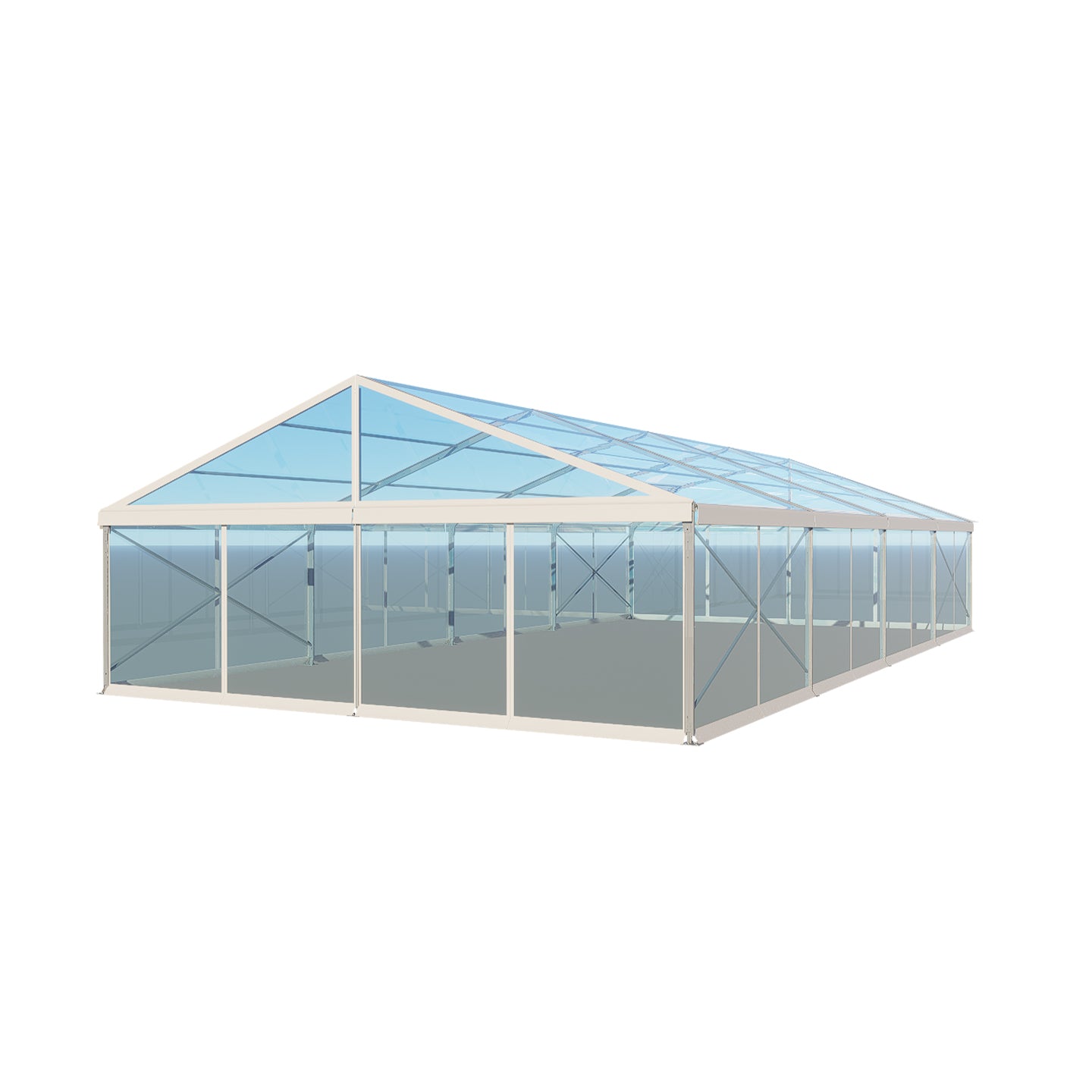

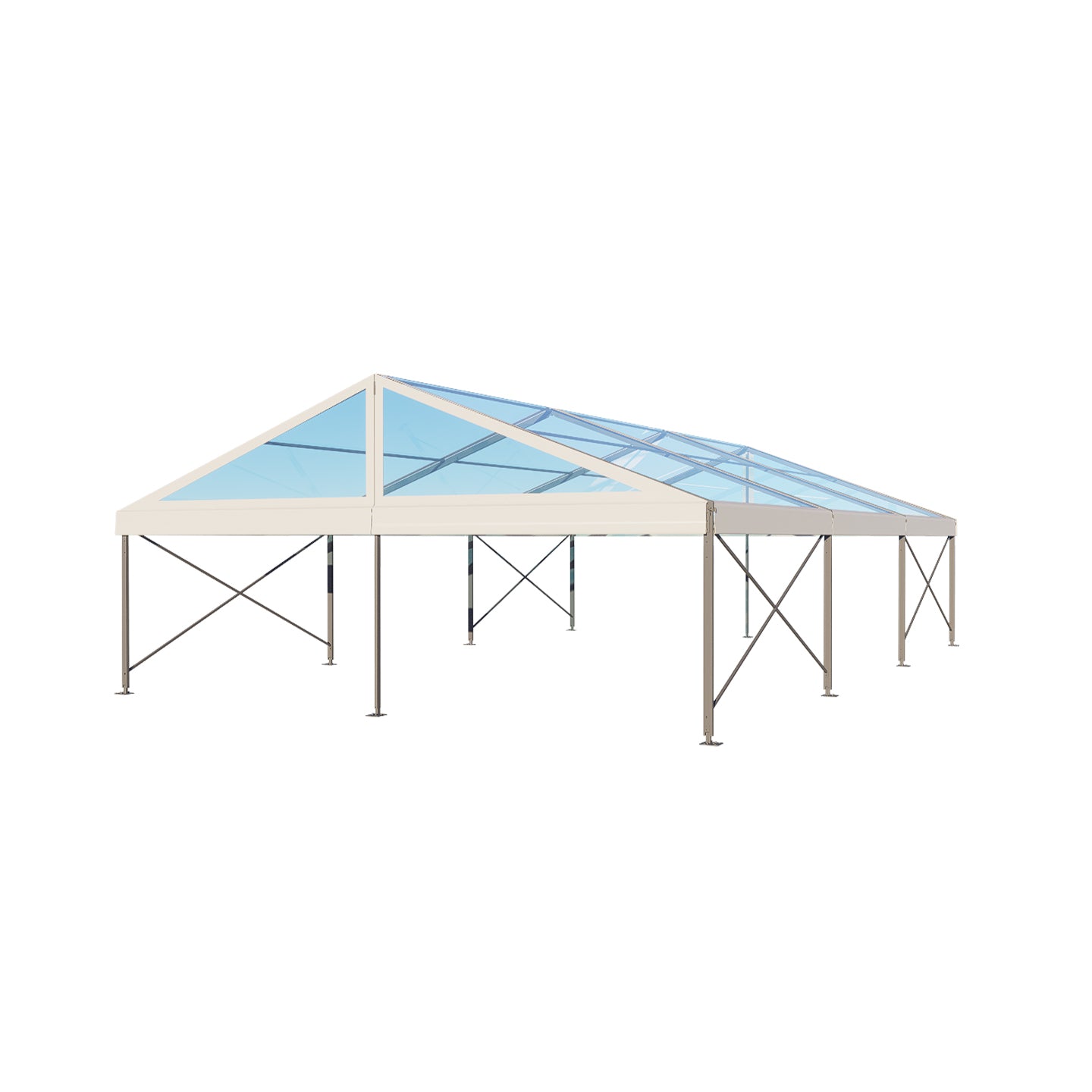

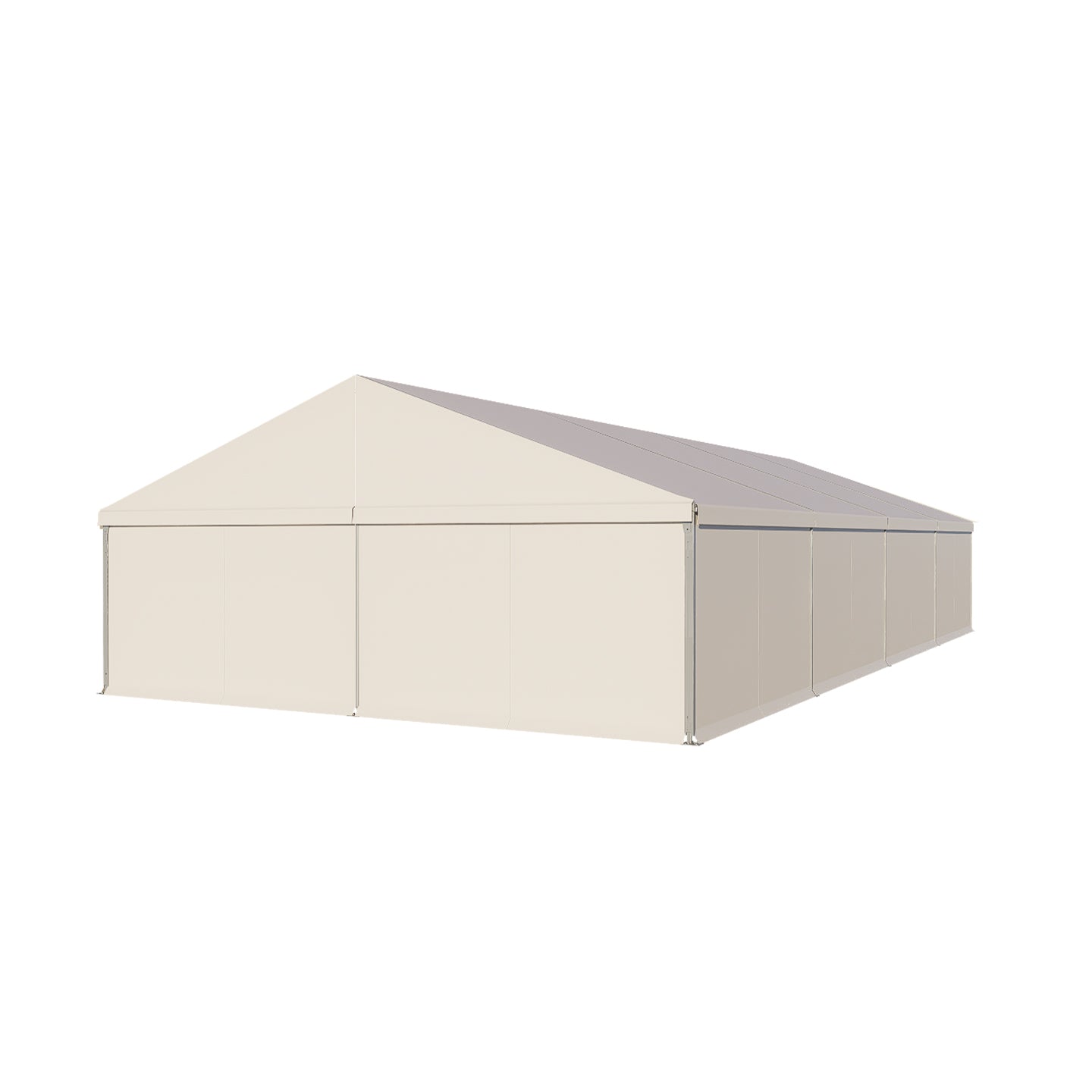

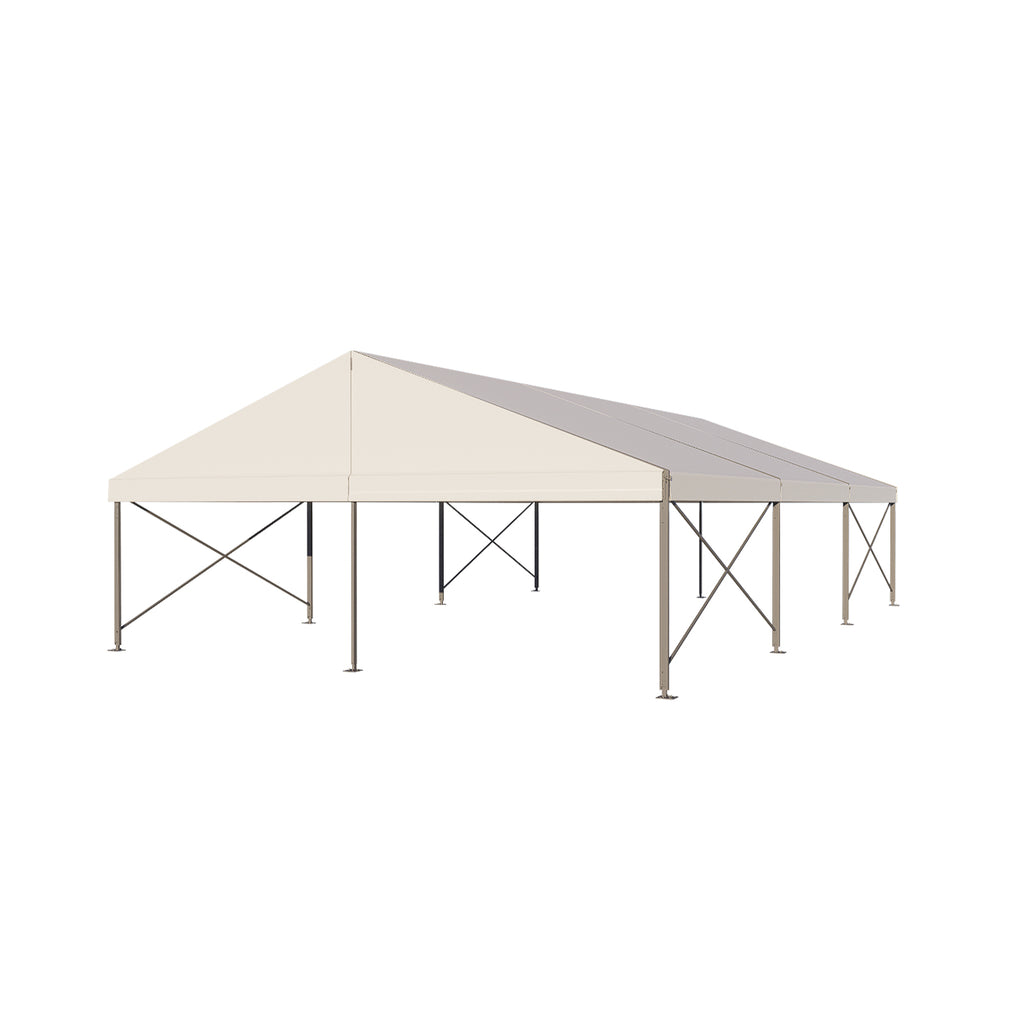

10m Wide (5m Bay) Event Standard

The 10m Wide (5m Bay) Clear Span A-Frame – Event Standard (ES) Series is a premium event structure designed for large-scale, high-impact occasions. Featuring a reinforced aluminium frame and a true clear-span design, it delivers exceptional strength, safety, and uninterrupted internal space. Ideal for weddings, corporate events, exhibitions, and festivals, it offers a sleek appearance with maximum weather resistance.

Oversize product. Forklift or HIAB required for delivery.

Specification Sheet >    Instruction >   Product Comparison >   8m 10m 12m Engineer Cert >    PVC Fire Retardant Certification >

Clear Span Width	10m
Eave Height	3m
Ridge Height	4.76m
Roof Pitch	20º
Bay Distance	5m
Roof Fixing	Bar tensioning
Frame Profile	122 x 68 x 3mm (4-channel)
Max Allowed Windspeed	80km/hr 0.3kn/m2
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)
Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC



Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table
10m x 15m	150	200	160	120	100-120
10m x 20m	200	264	224	160	160-180

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
