Description

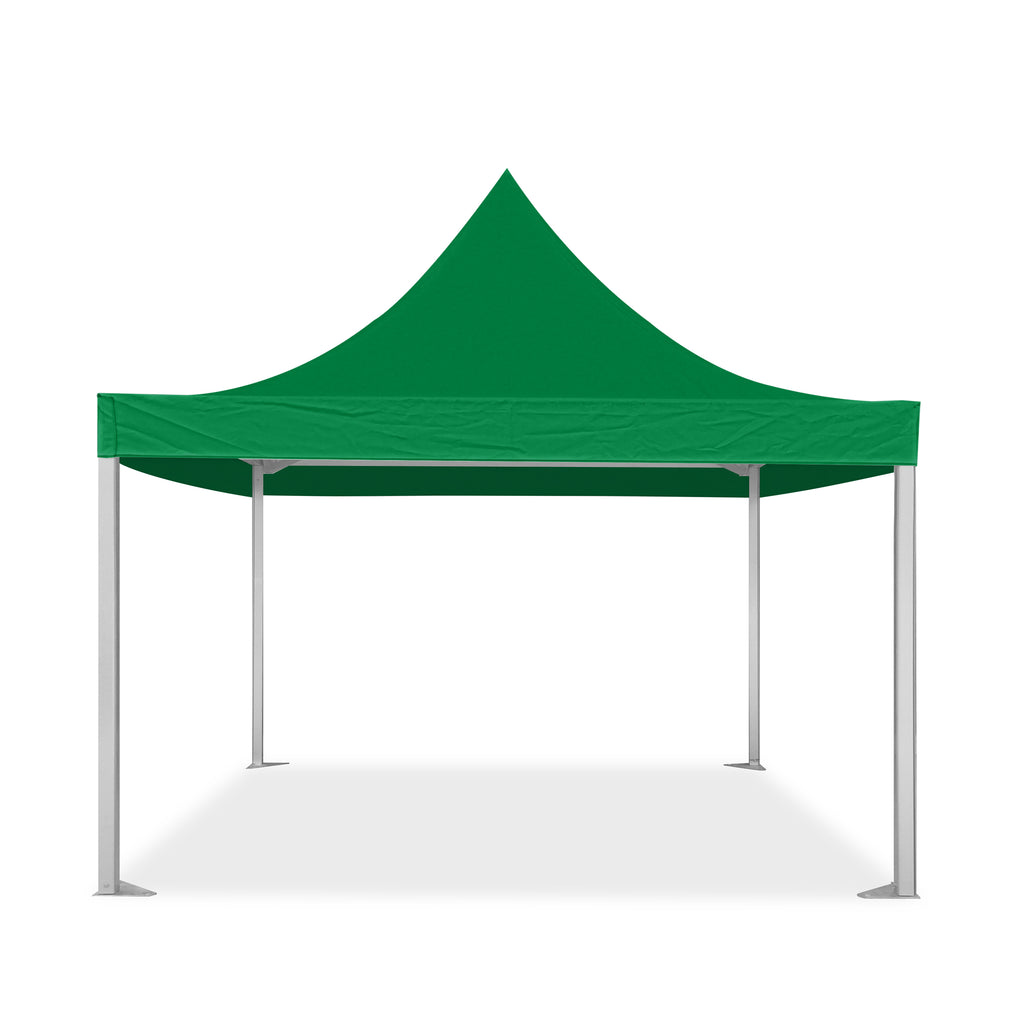

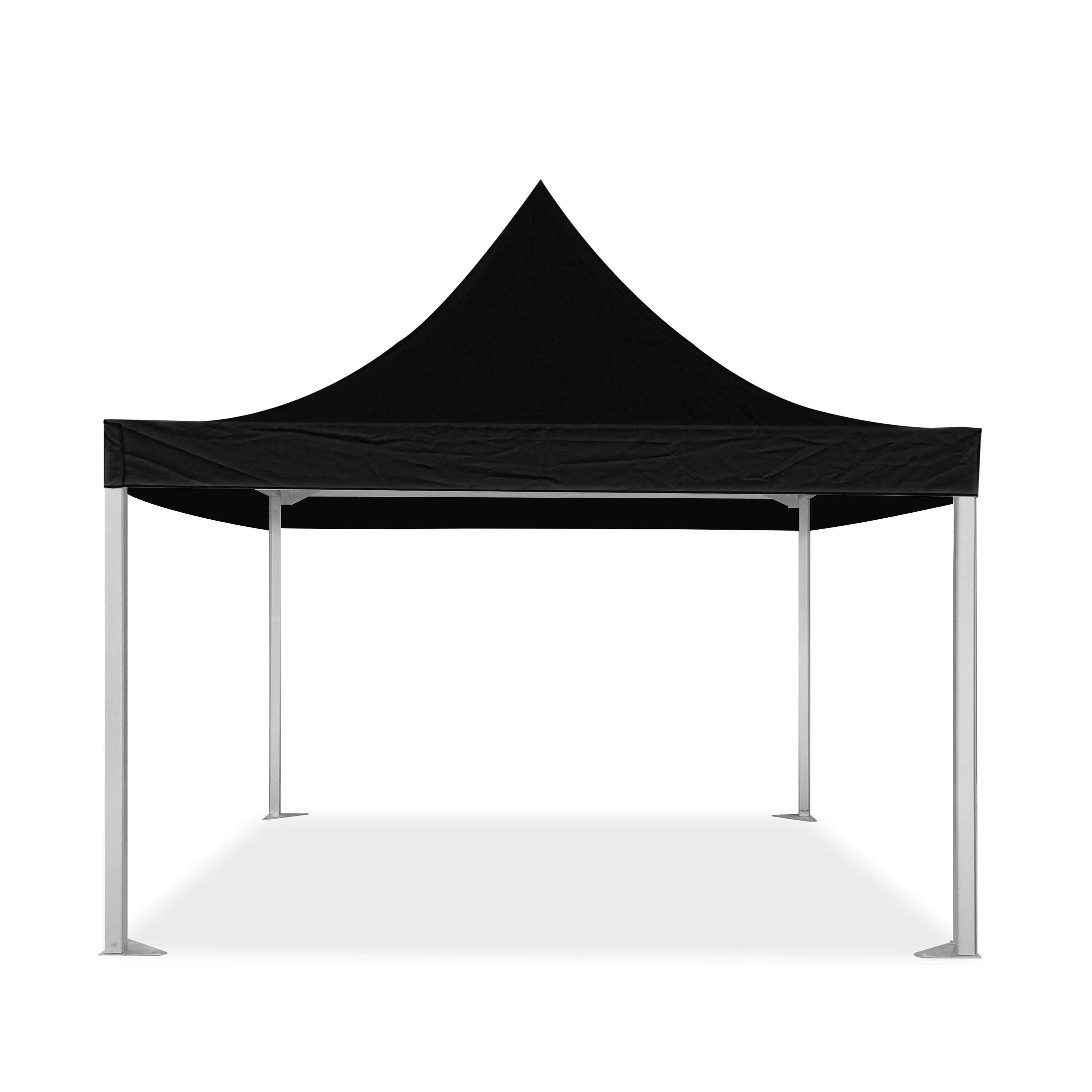

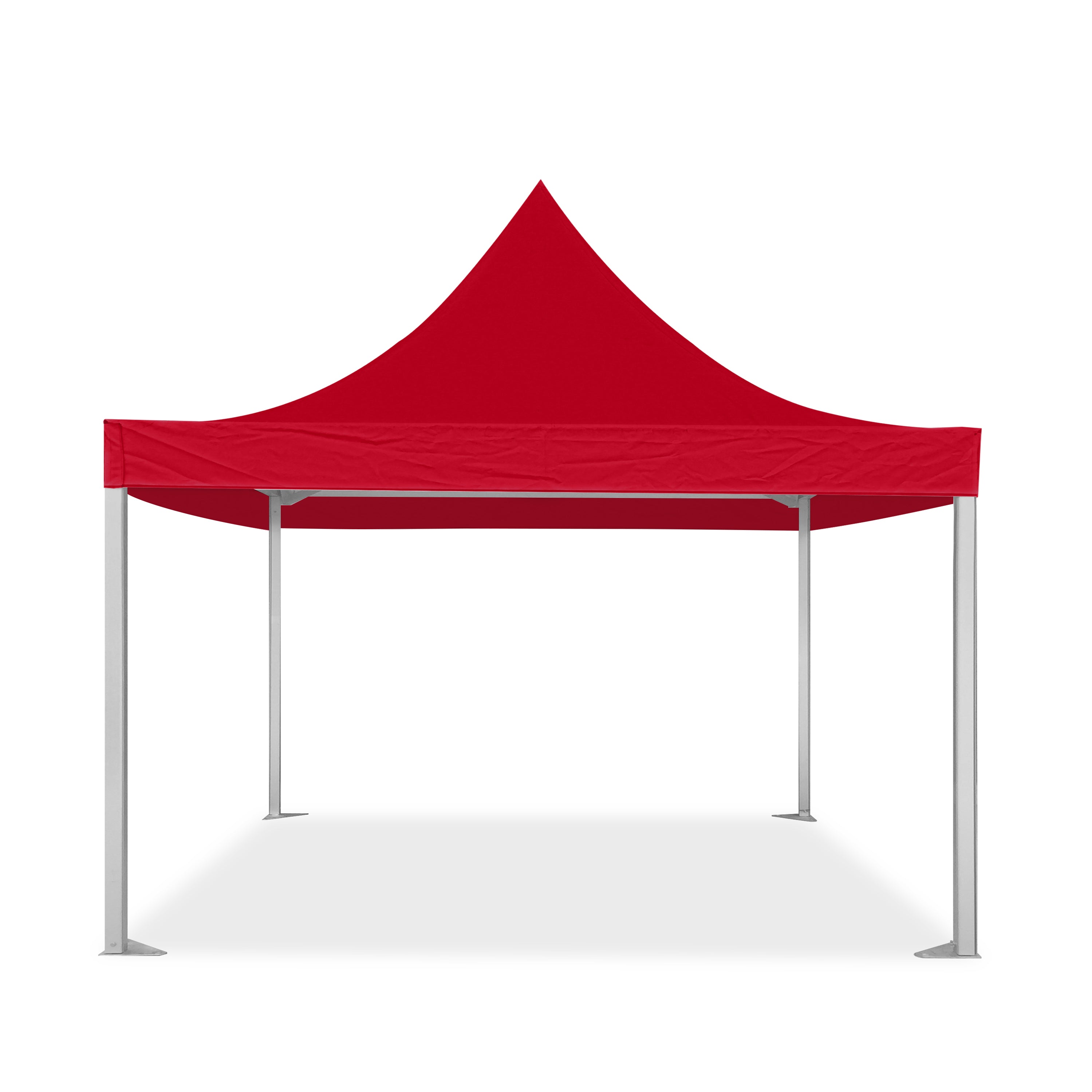

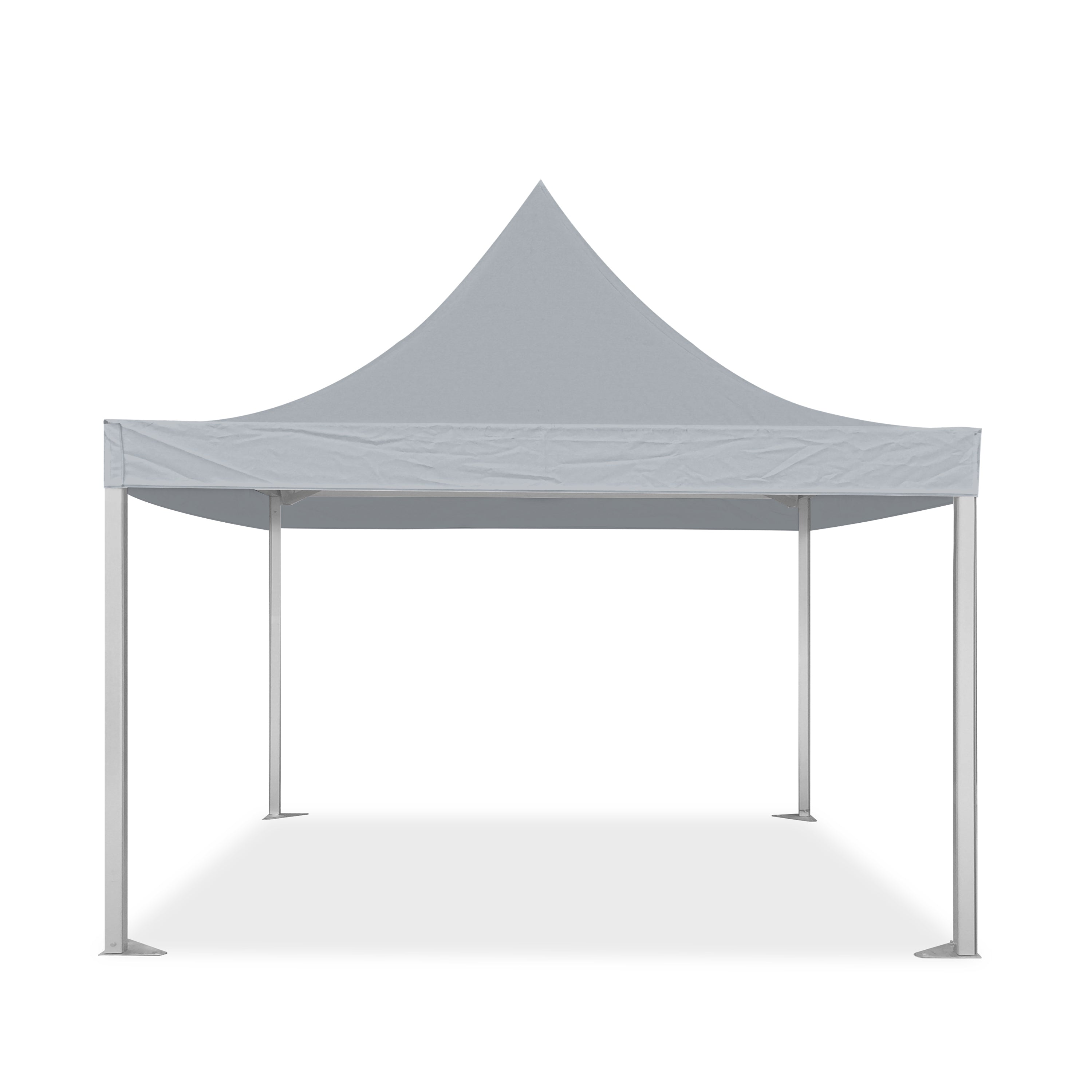

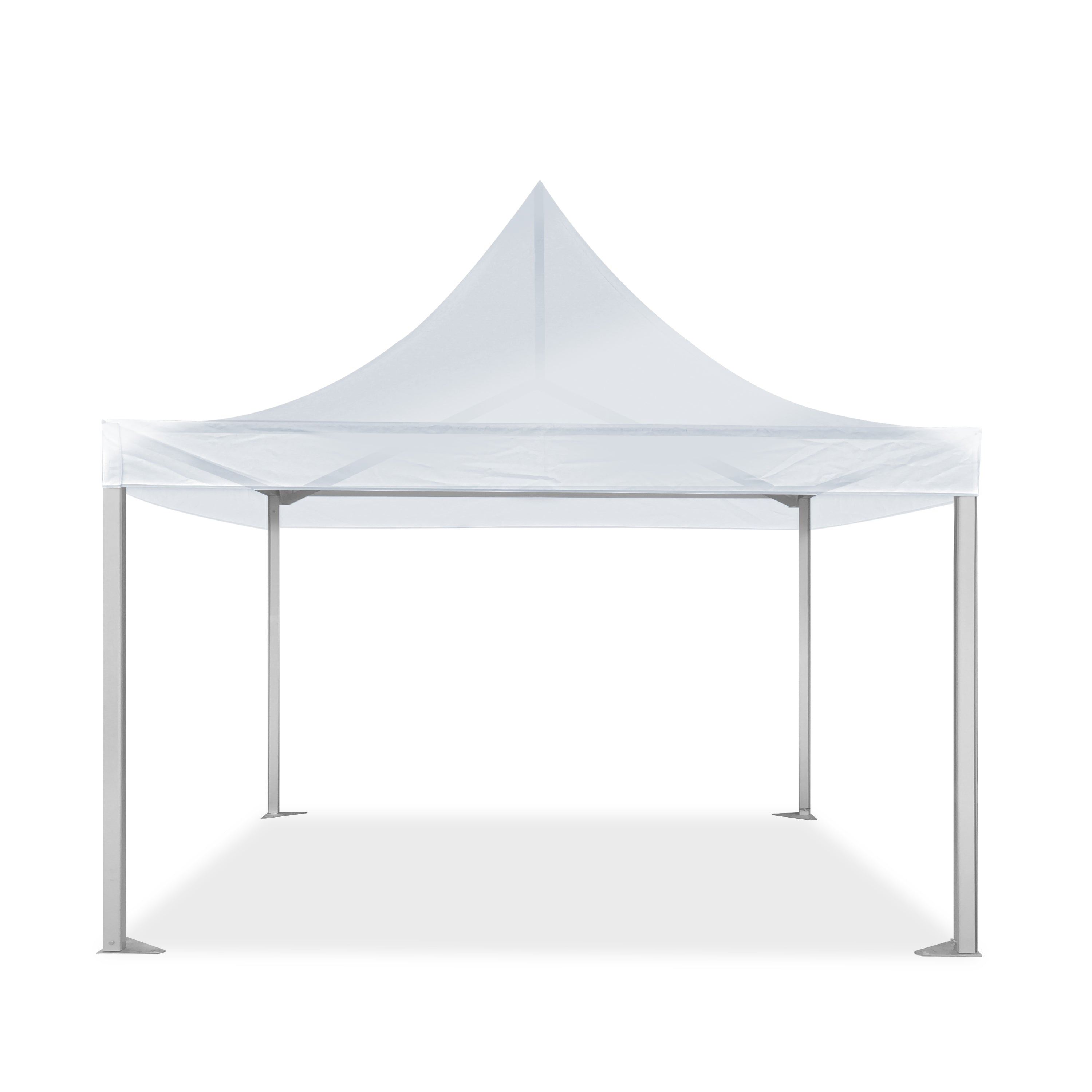

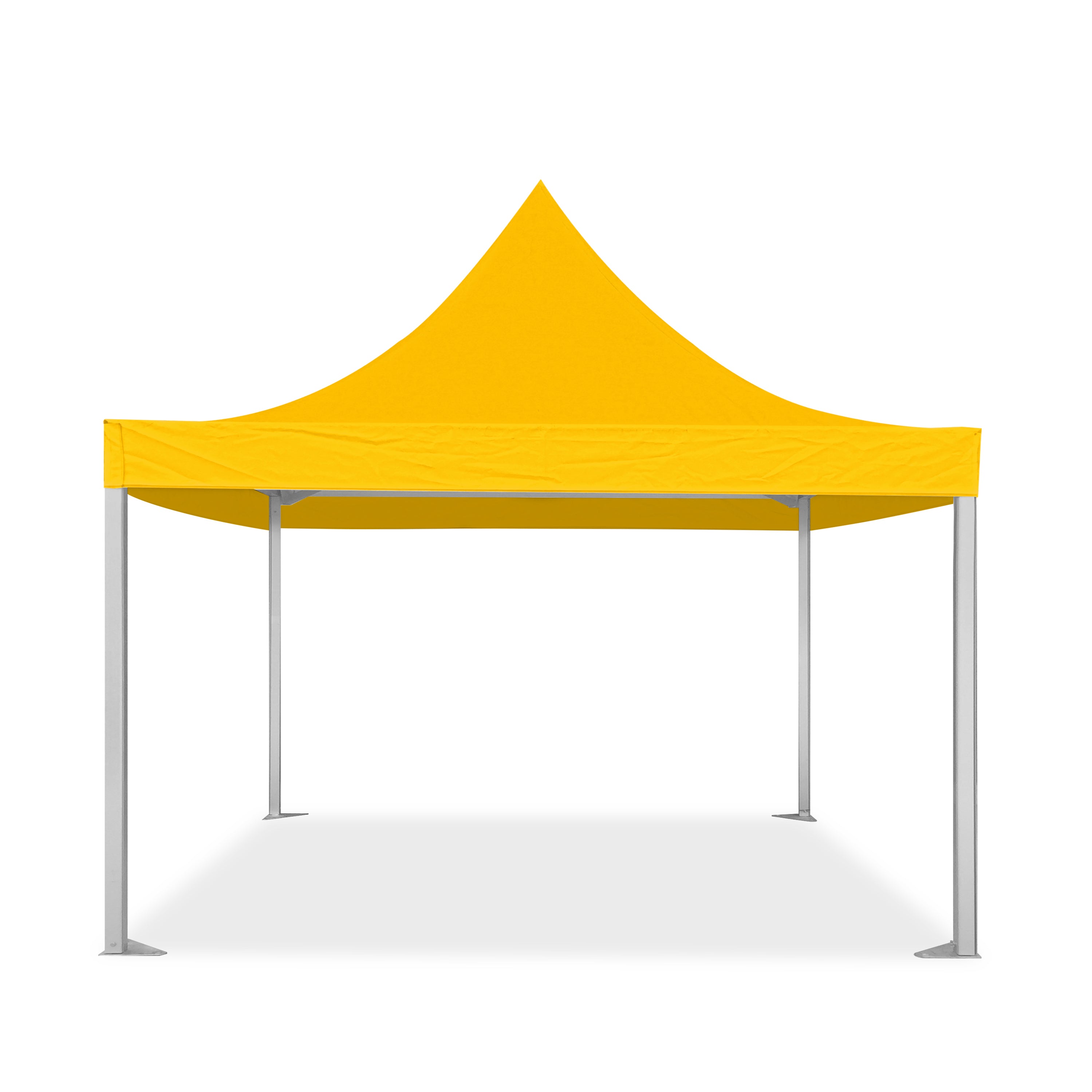

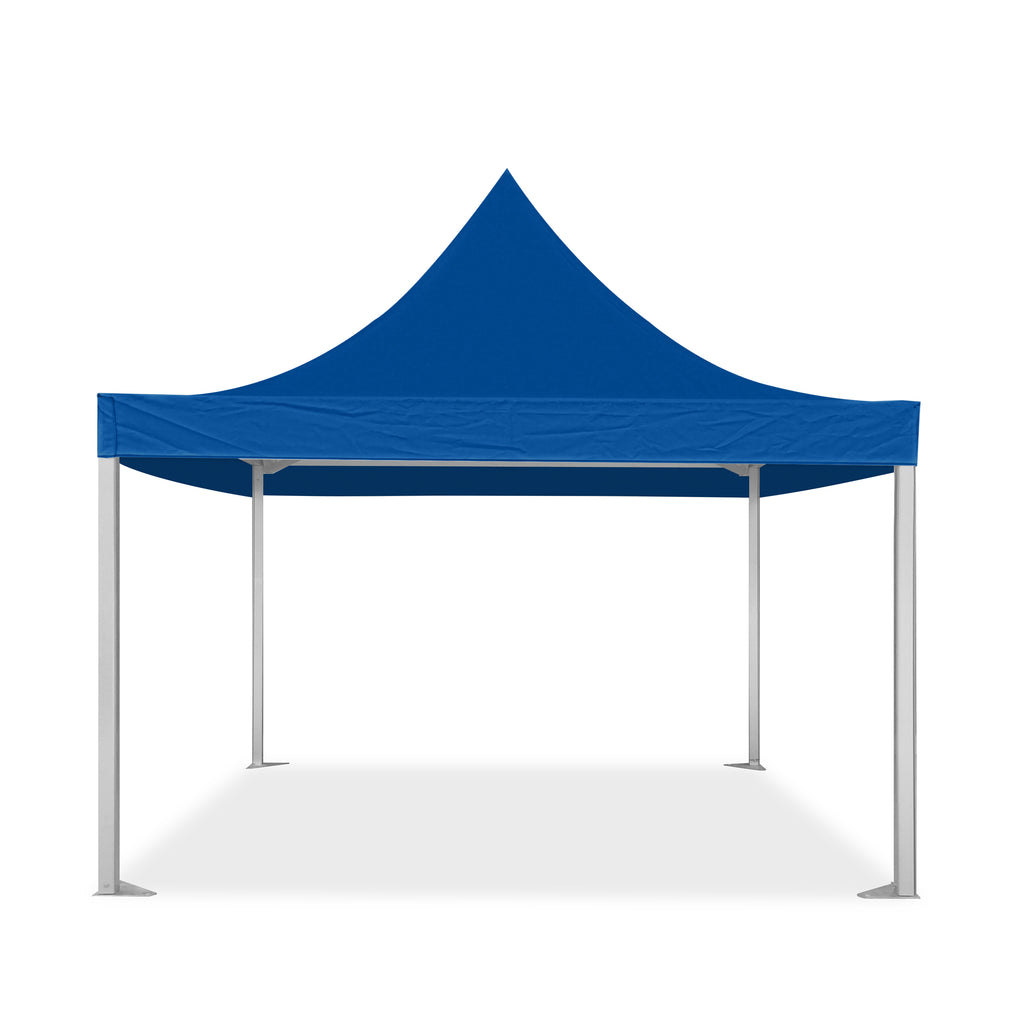

Pinnacle 5m x 5m
The 5m x 5m Pinnacle Semi-Permanent Tent is a premium outdoor shelter engineered for long-term use. Featuring a heavy-duty aluminium frame and commercial-grade roof fabric, it delivers outstanding weather resistance, stability, and style. Ideal for hospitality venues, resorts, alfresco dining areas, and semi-permanent event spaces.
Oversize product. Forklift or HIAB required for delivery.
Package Includes: Frame, roof, steel pins & steel pin pullers.
Features
• 64mm aluminium frame profile
• Iconic pagoda-style design
• Threaded rod tensioner
Specification Sheet Download > Instruction > Wind Rating Cert > Fire Test Cert > 5m Engineer Cert >
| Specifications | 5m x 5m |
| Eave Height | 2.5m |
| Ridge Height | 5.5m |
| Clearance | 2m |
| Pitch Height | 2m |
| Frame Profile | 64.4 x 64.4 x 2.5mm |
| Max Allowed Windspeed | 80km/hr | 0.3kn/m2 |
| Eave Connection | Hot-dip galvanized steel insert |
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13Hw) |
| Frame Weight | 139kg |
| Roof Weight | 19.5kg |
| Roof Fabric | 950gsm clear PVC 850gsm white PVC 750gsm coloured PVC 650gsm white PVC walls |
| Frame Warranty | 10 years |
| Roof Warranty | 2 years clear PVC / 5 years white & coloured PVC |
