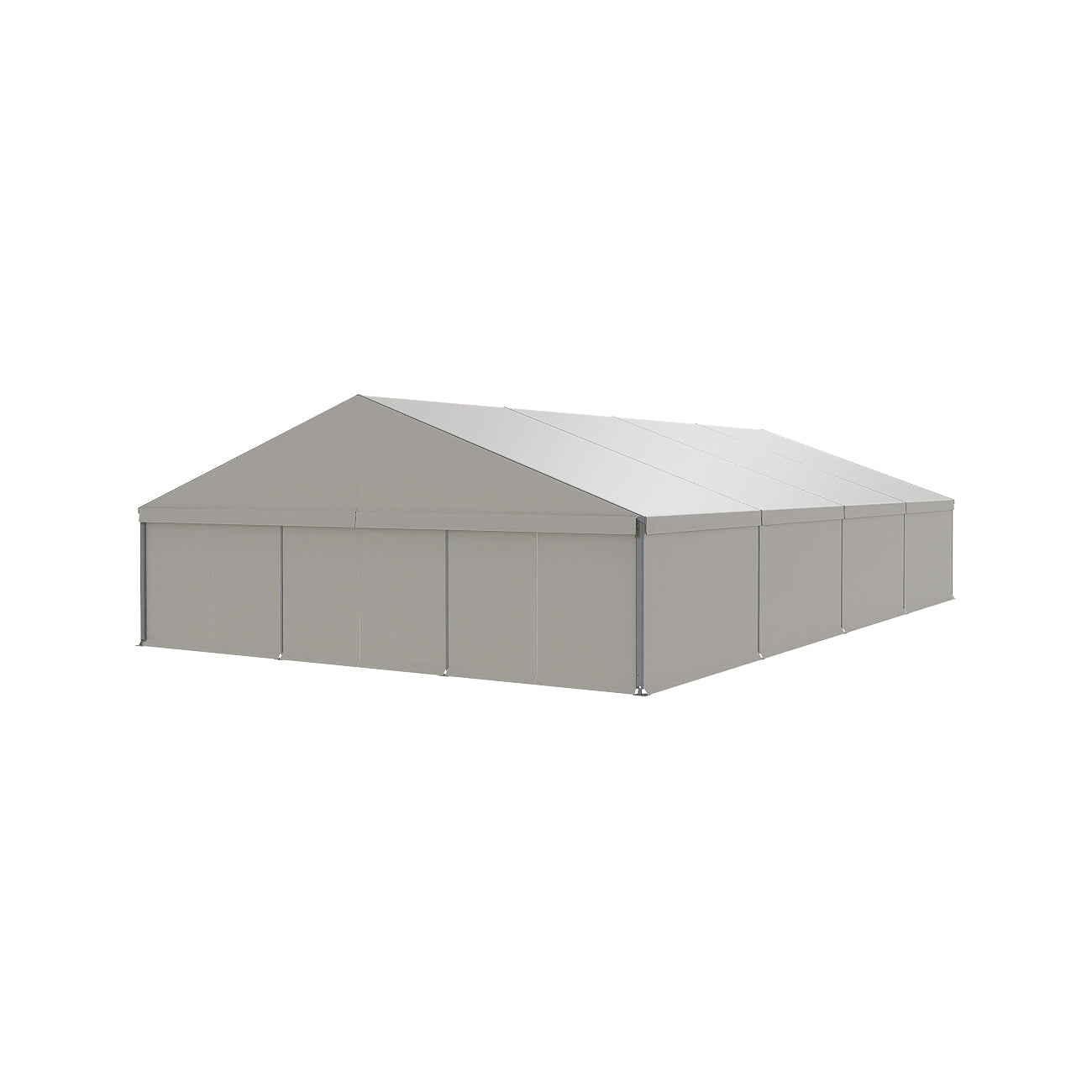

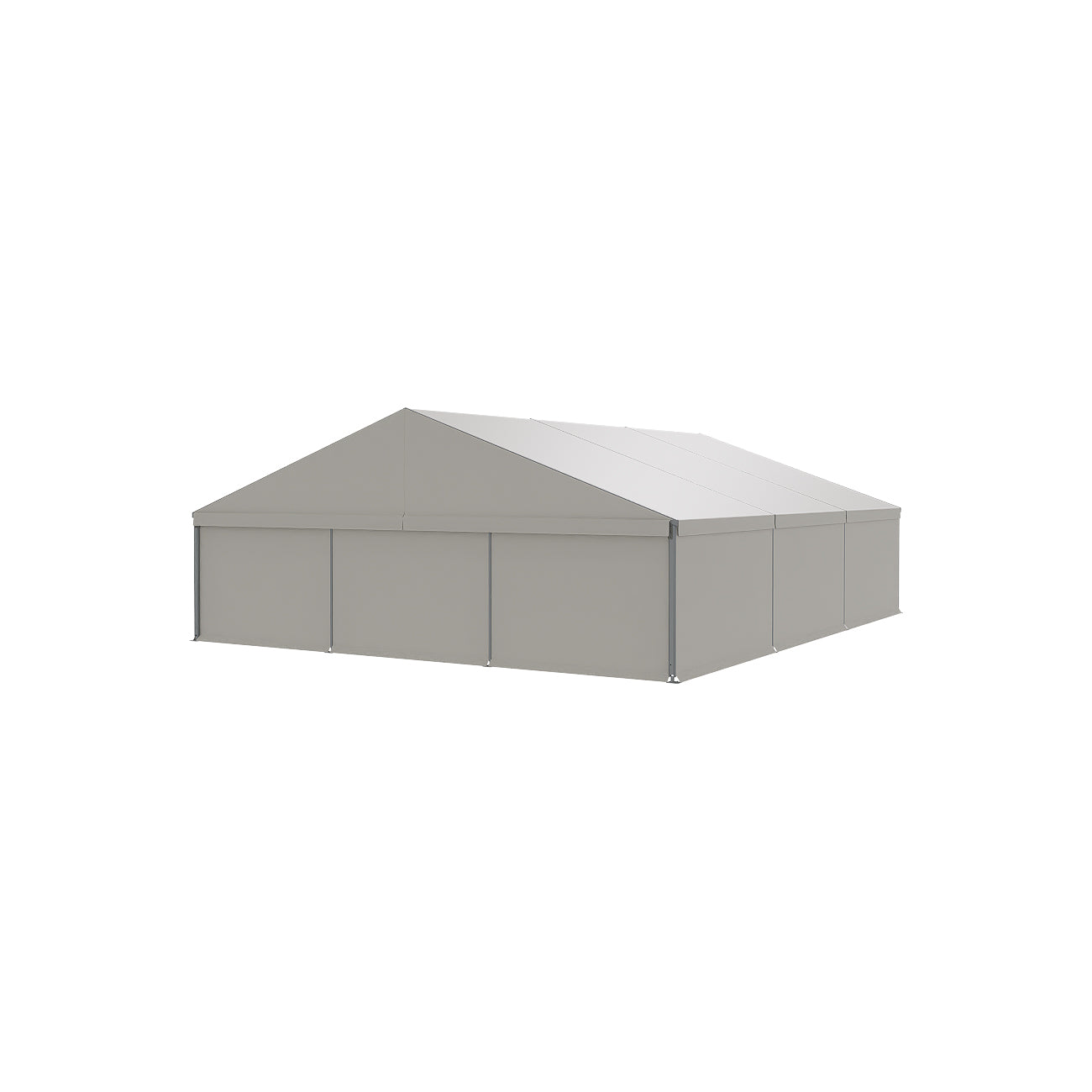

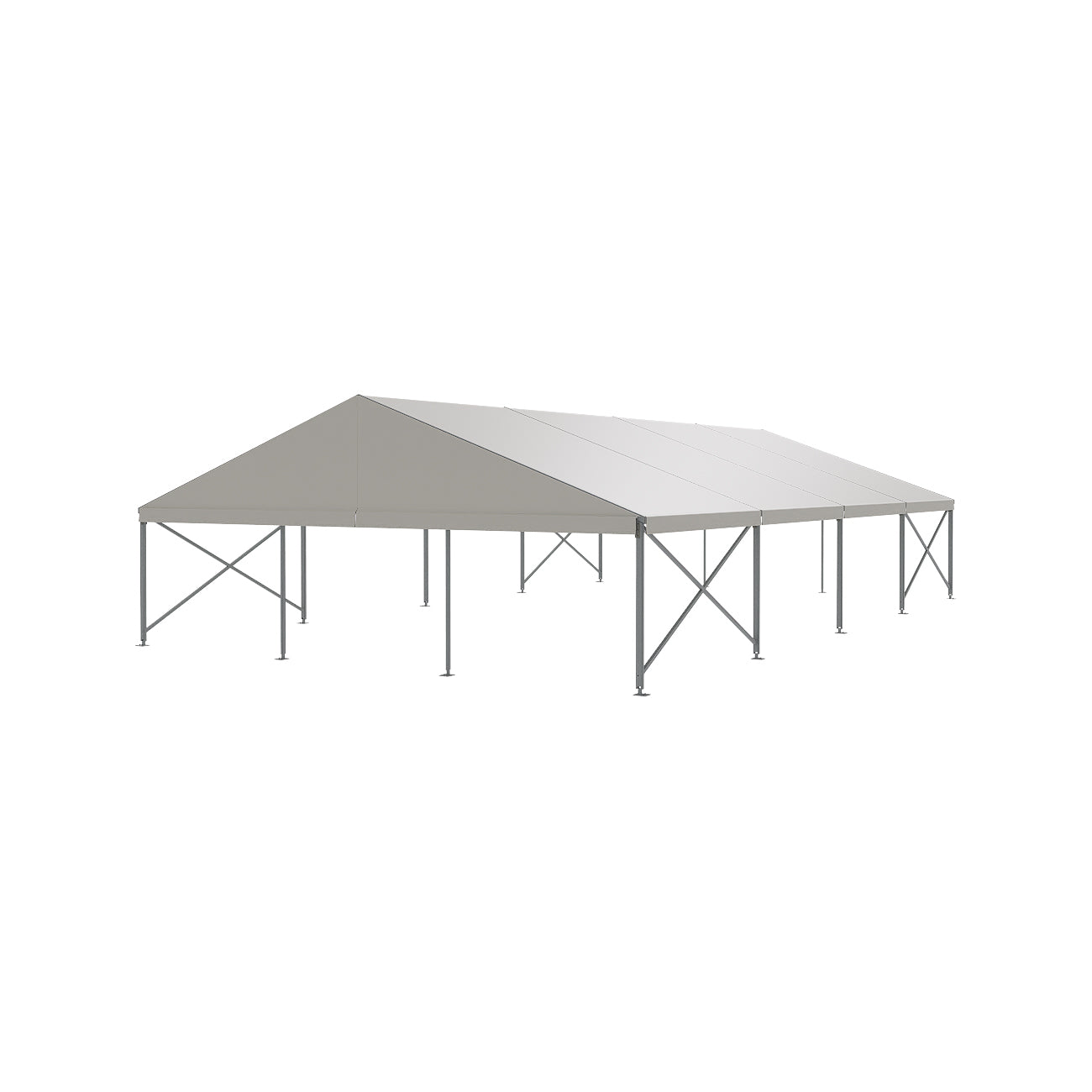

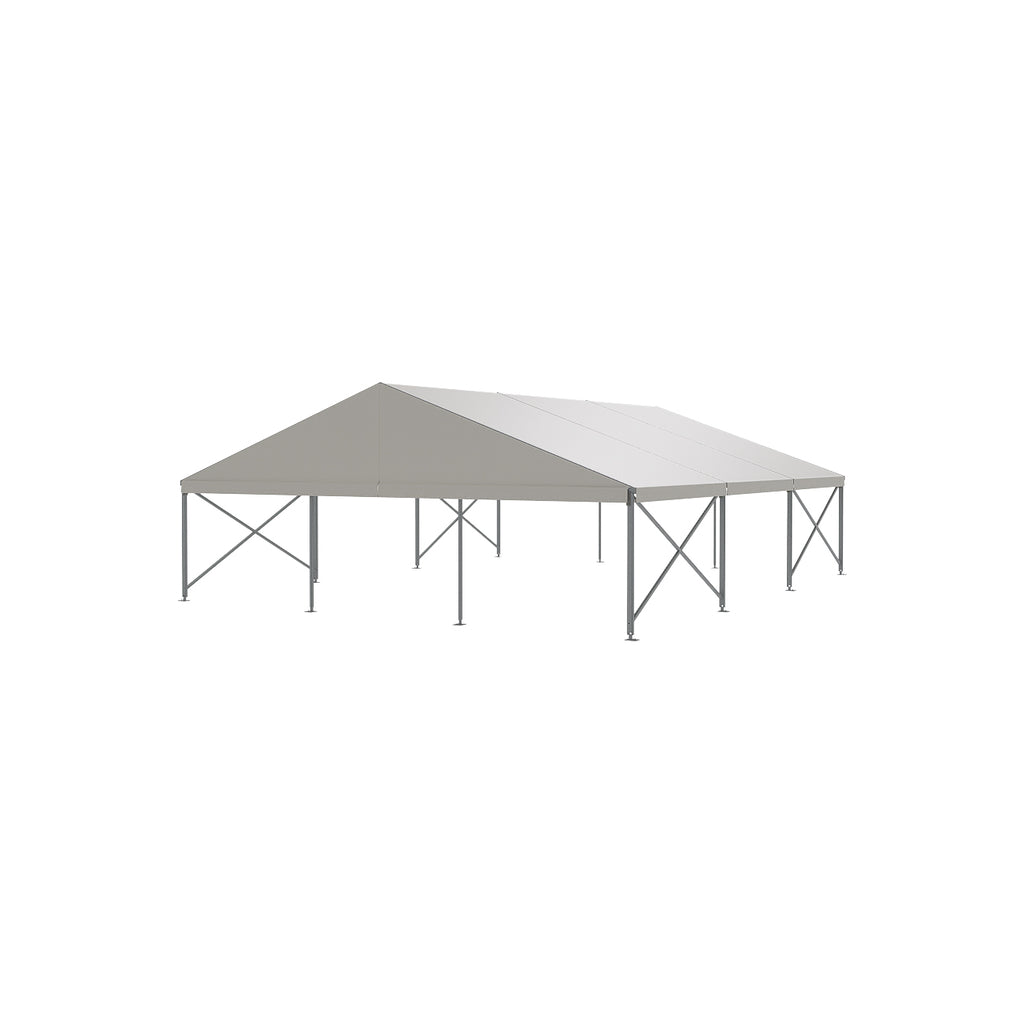

12m Wide Event Standard

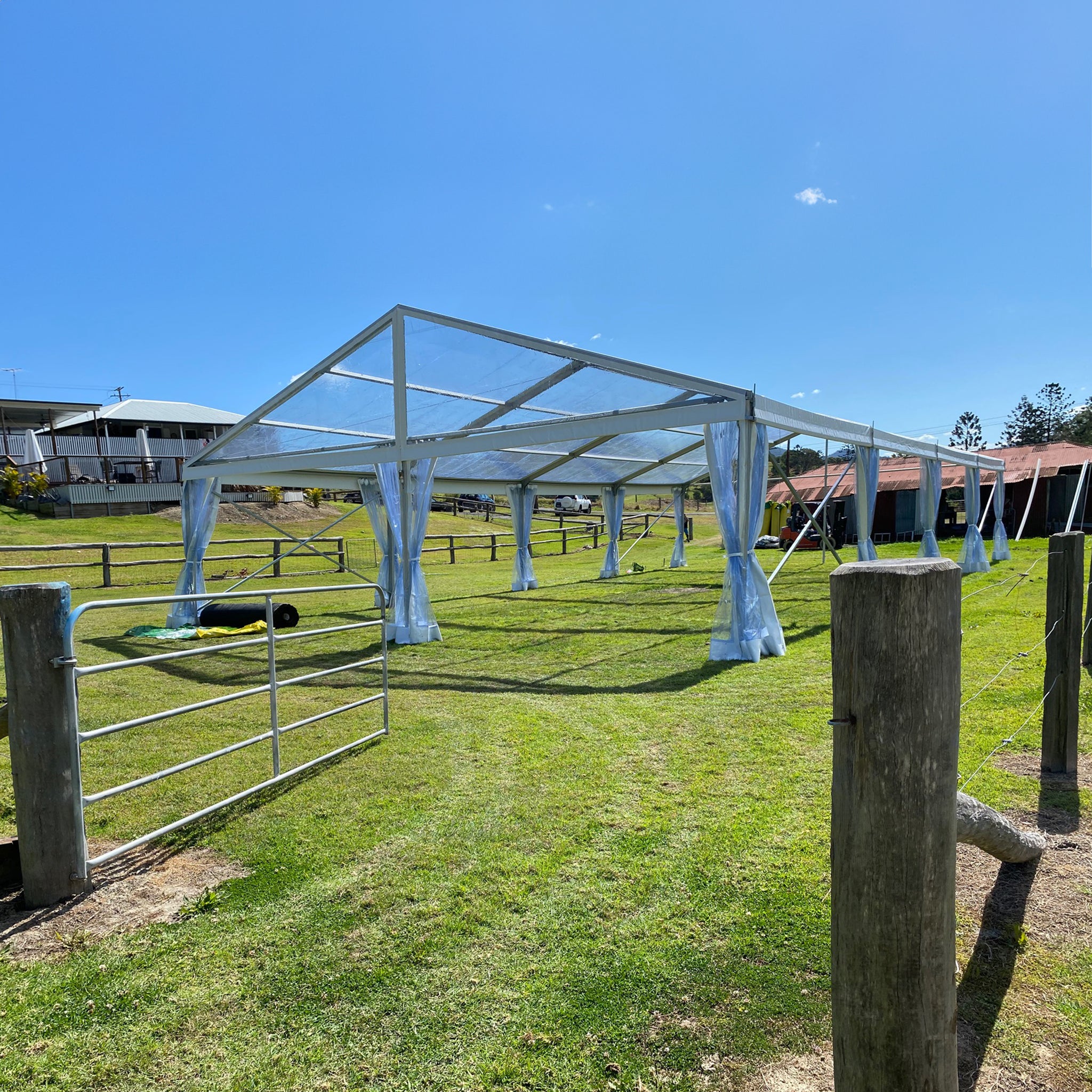

The 12m Wide Clear Span A-Frame (ES Series) is a premium event structure designed for large-scale Australian events. Featuring a reinforced aluminium frame and unobstructed interior, it delivers maximum usable space, superior stability, and a clean architectural finish. Ideal for weddings, exhibitions, and corporate functions, this event-standard marquee is engineered for durability, safety, and professional presentation.

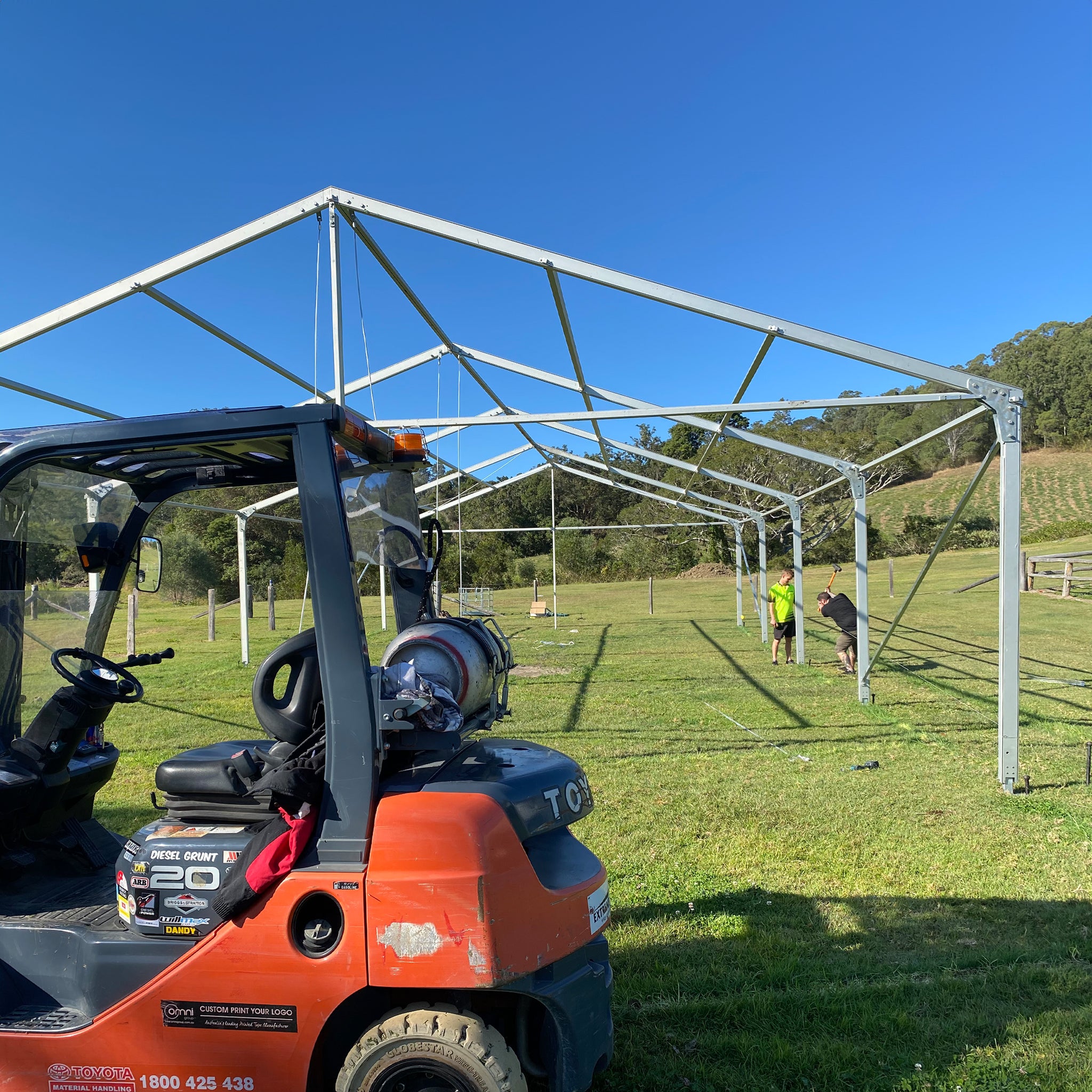

Oversize product. Forklift or HIAB required for delivery.

Specification Sheet >    Instruction >     8m 10m 12m Engineer Cert >    PVC Fire Retardant Certification >

Clear Span Width	12m
Eave Height	3m
Ridge Height	5.2m
Roof Pitch	20º
Bay Distance	5m
Roof Fixing	Bar tensioning
Frame Profile	122 x 68 x 3mm (4-channel)
Max Allowed Windspeed	80km/hr 0.3kn/m2
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)

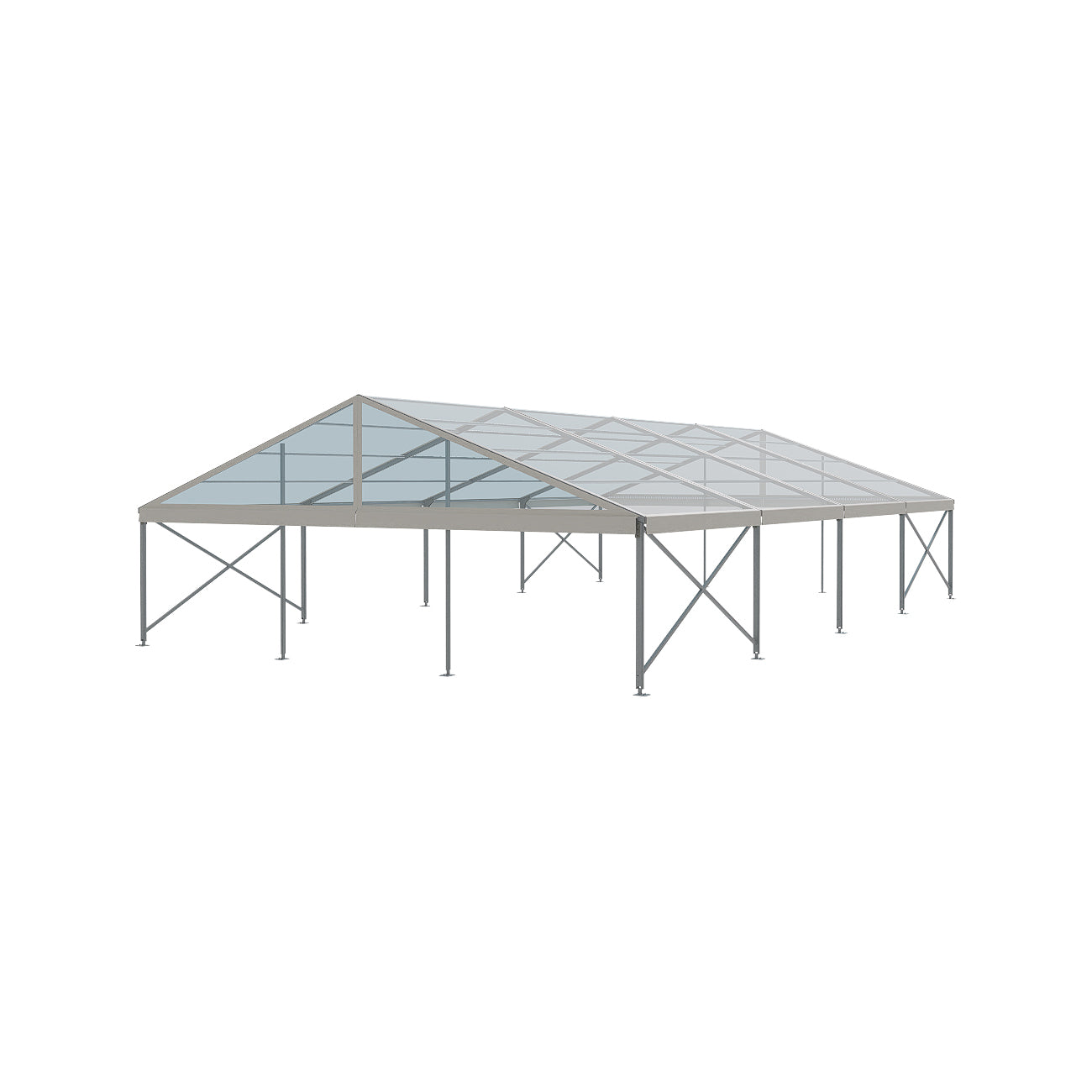

Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC



Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

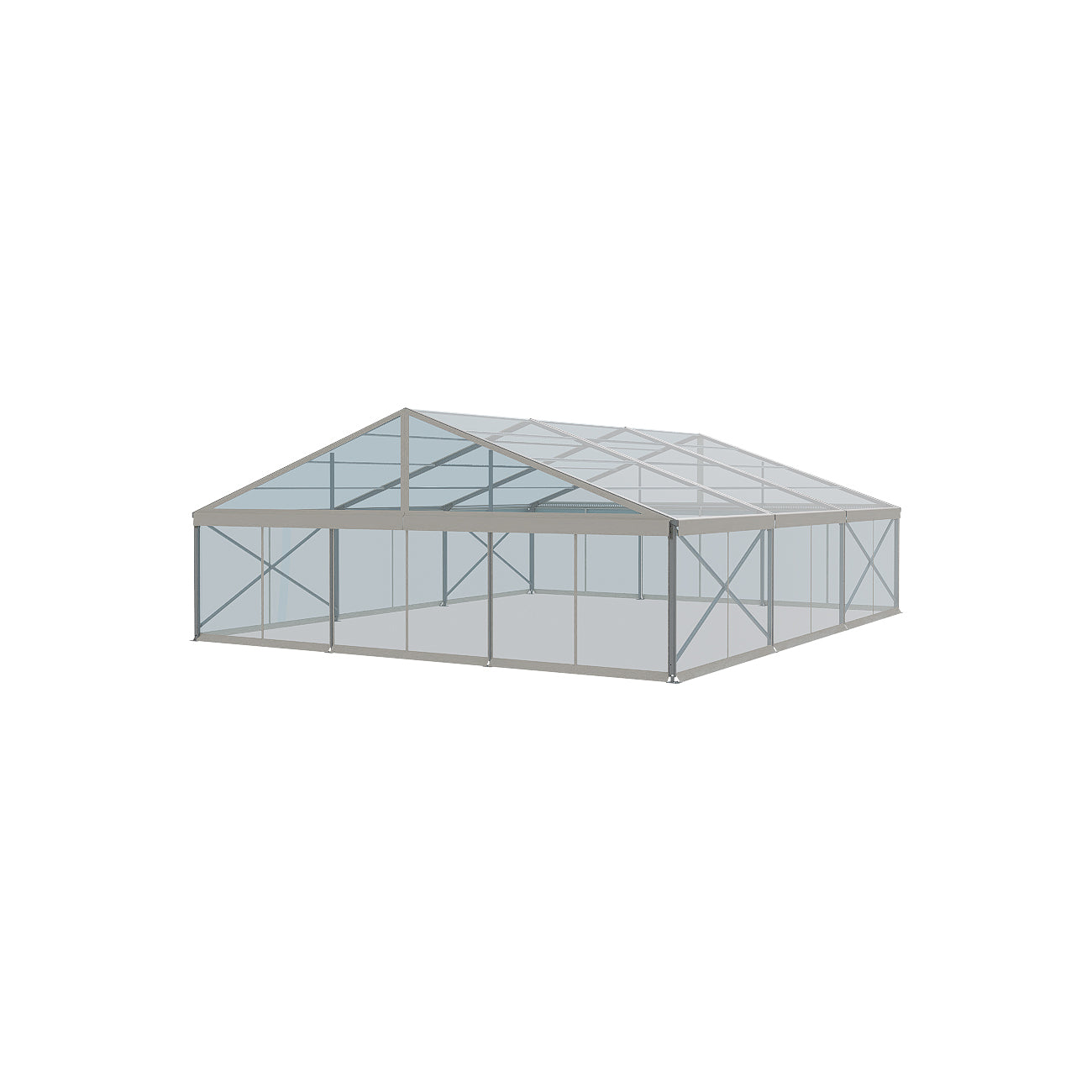

12m x 15m	180	240	200	144	120-144

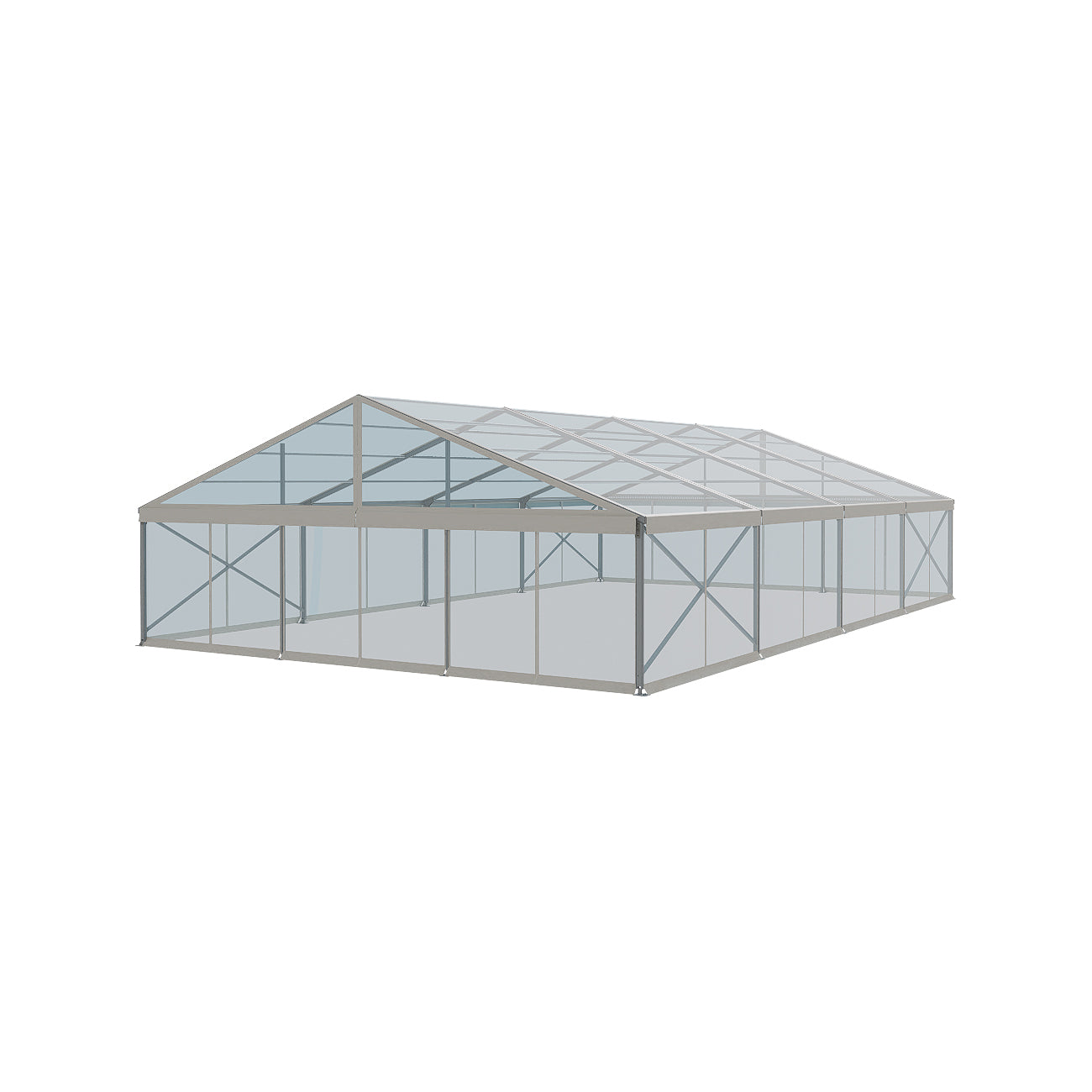

12m x 20m	240	320	256	192	160-192

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

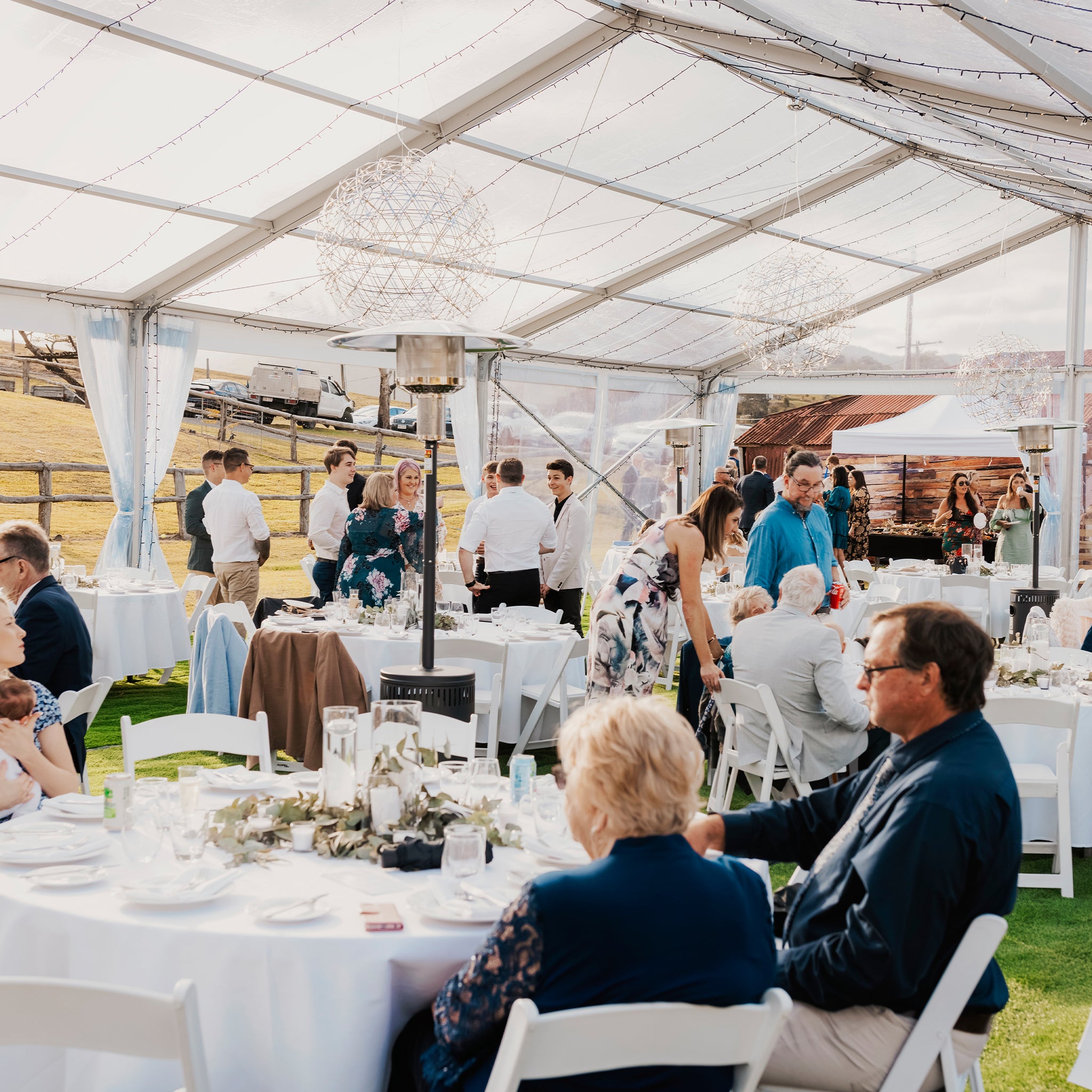

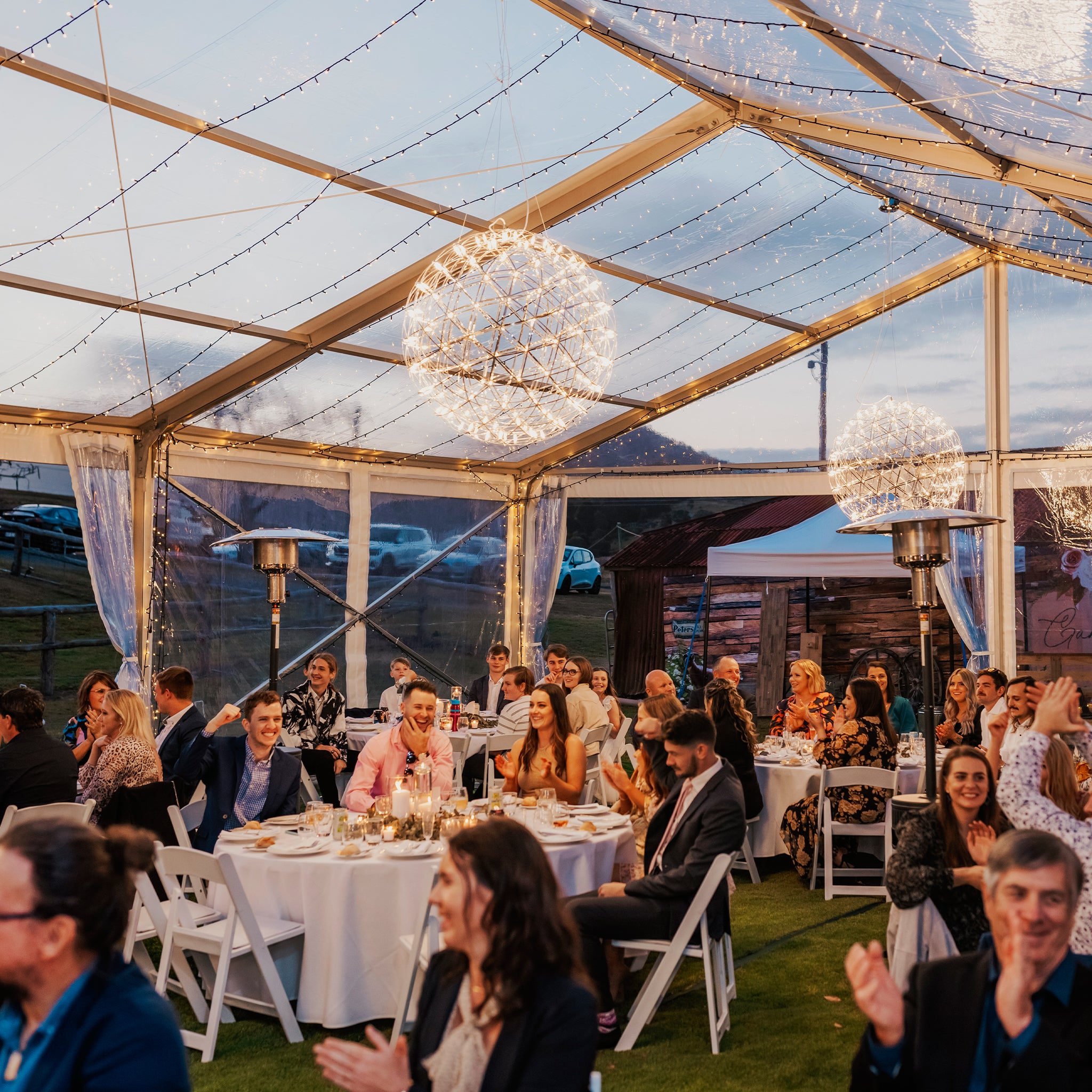

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
