Description

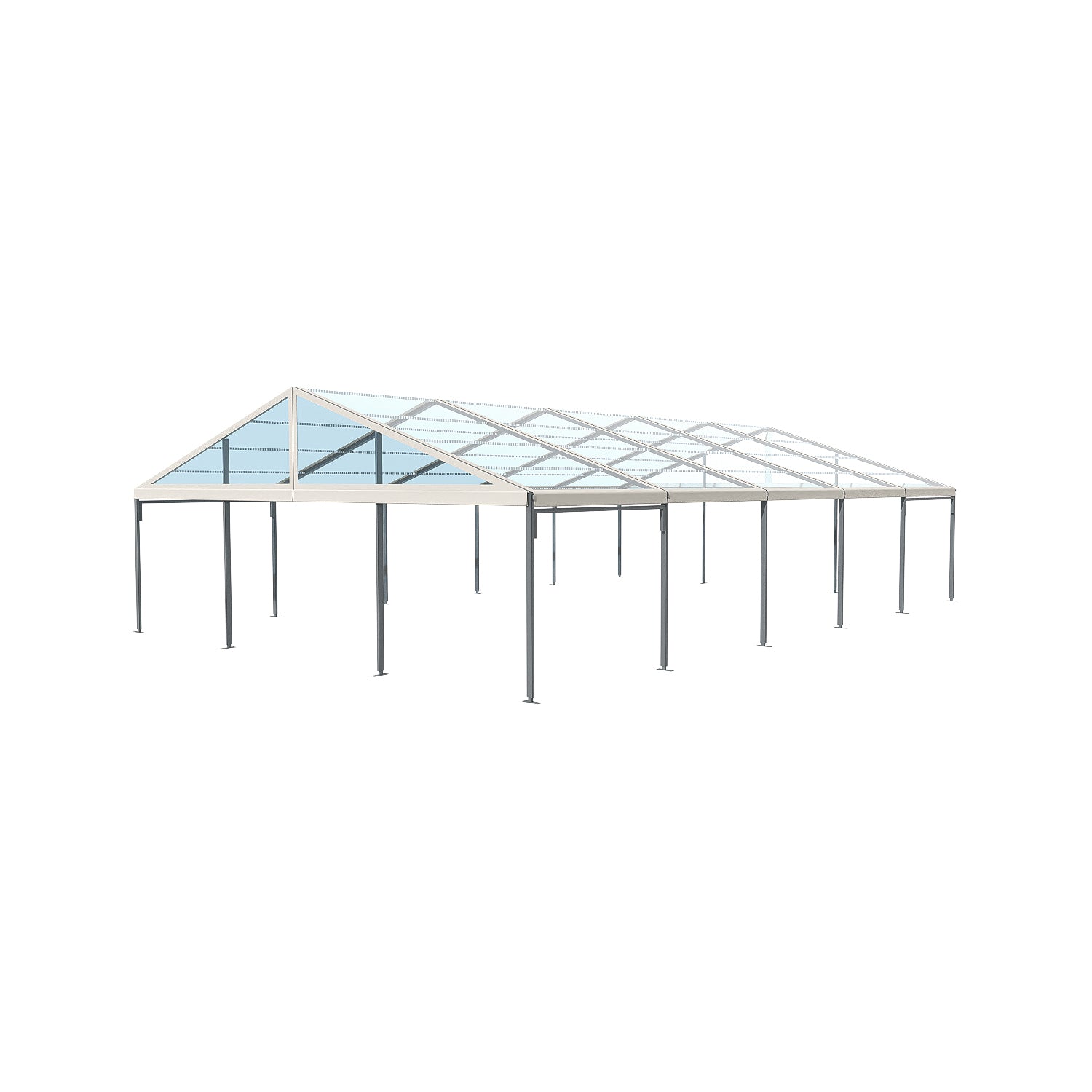

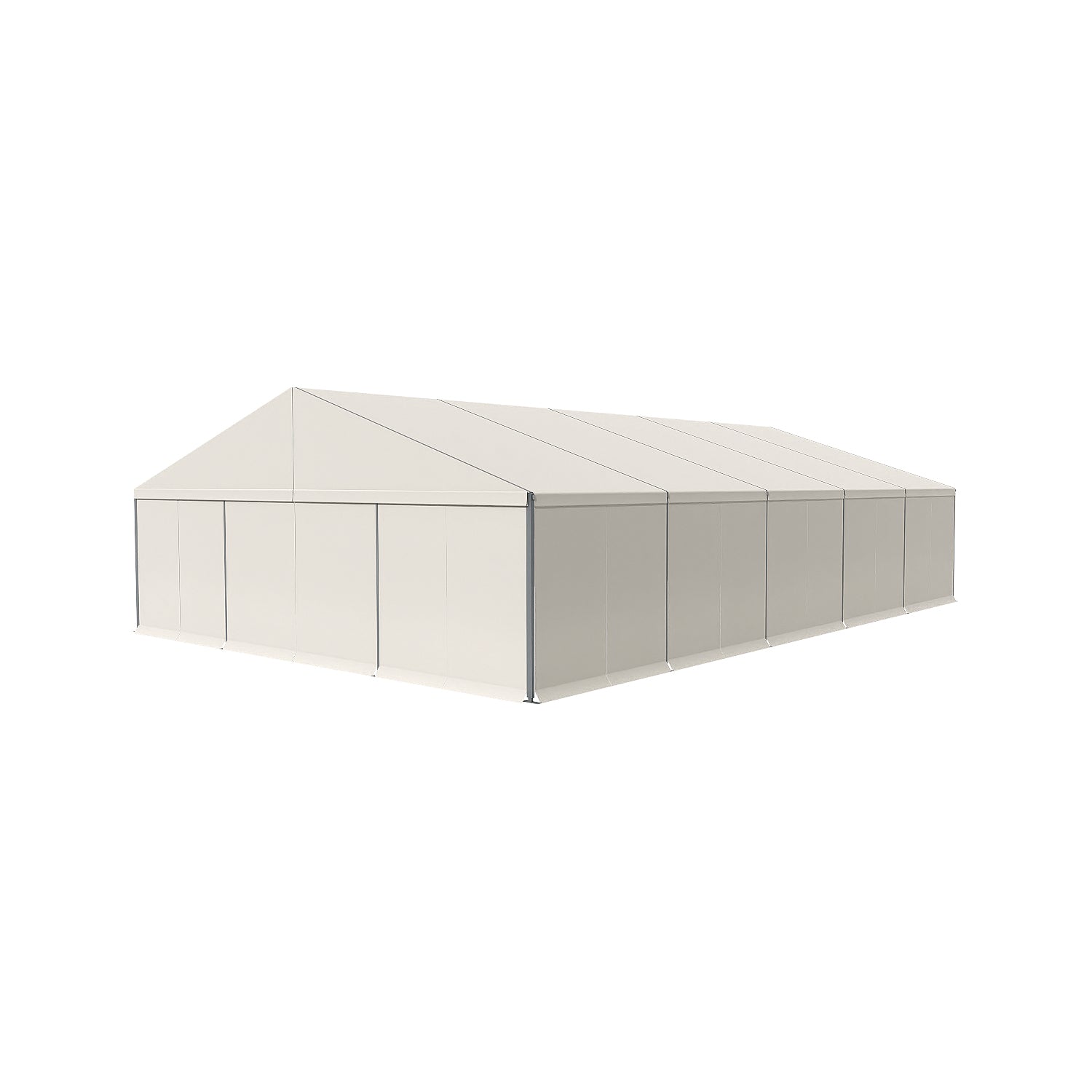

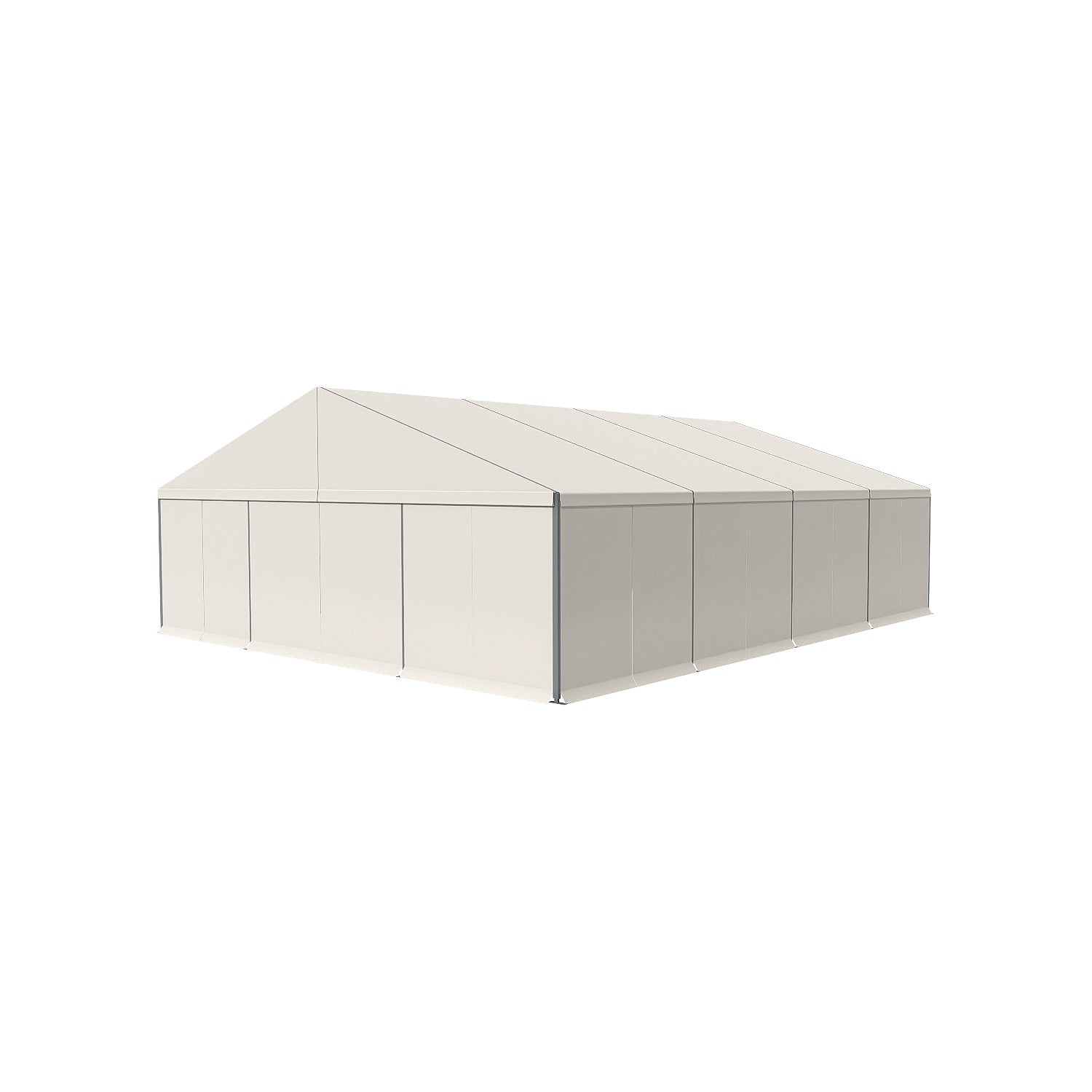

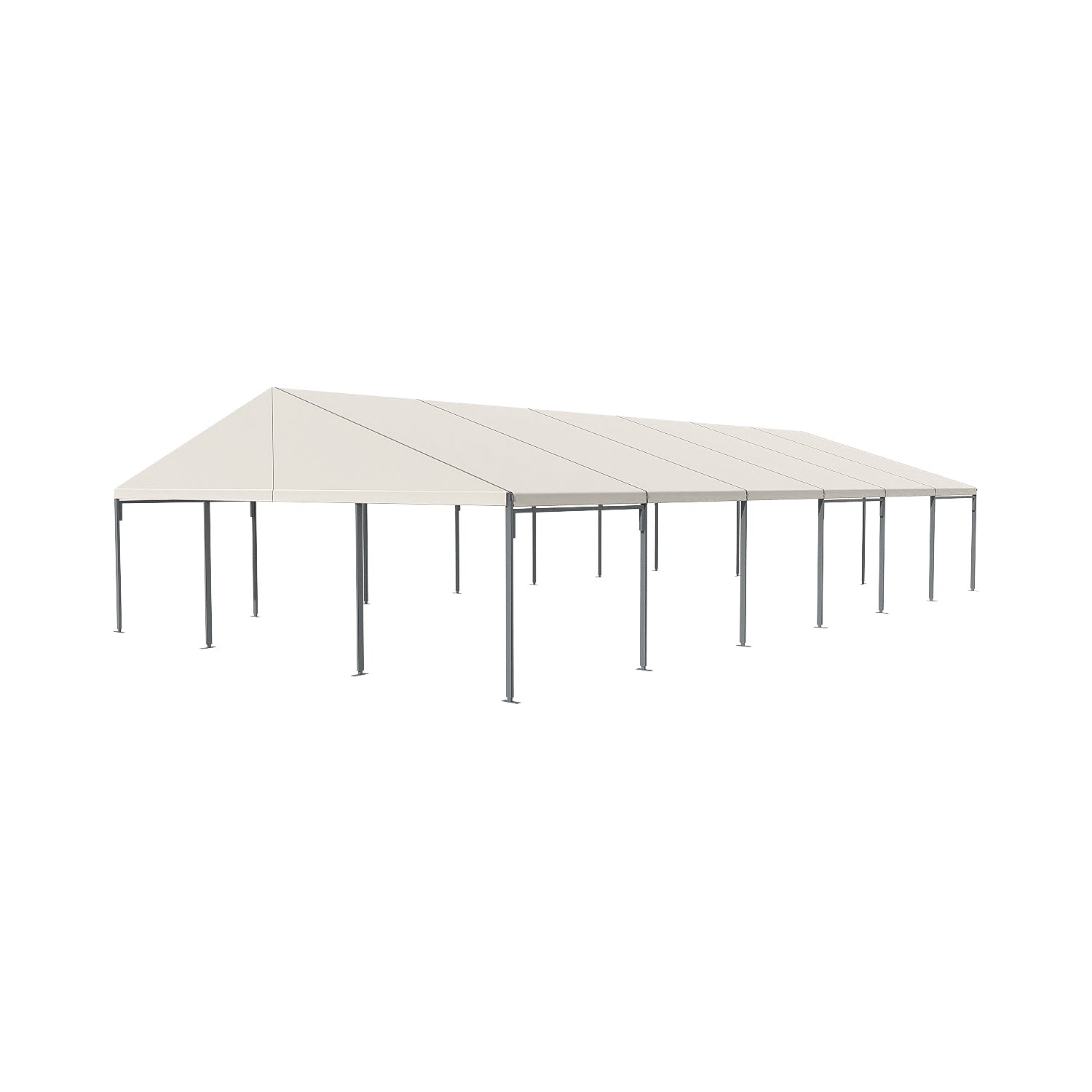

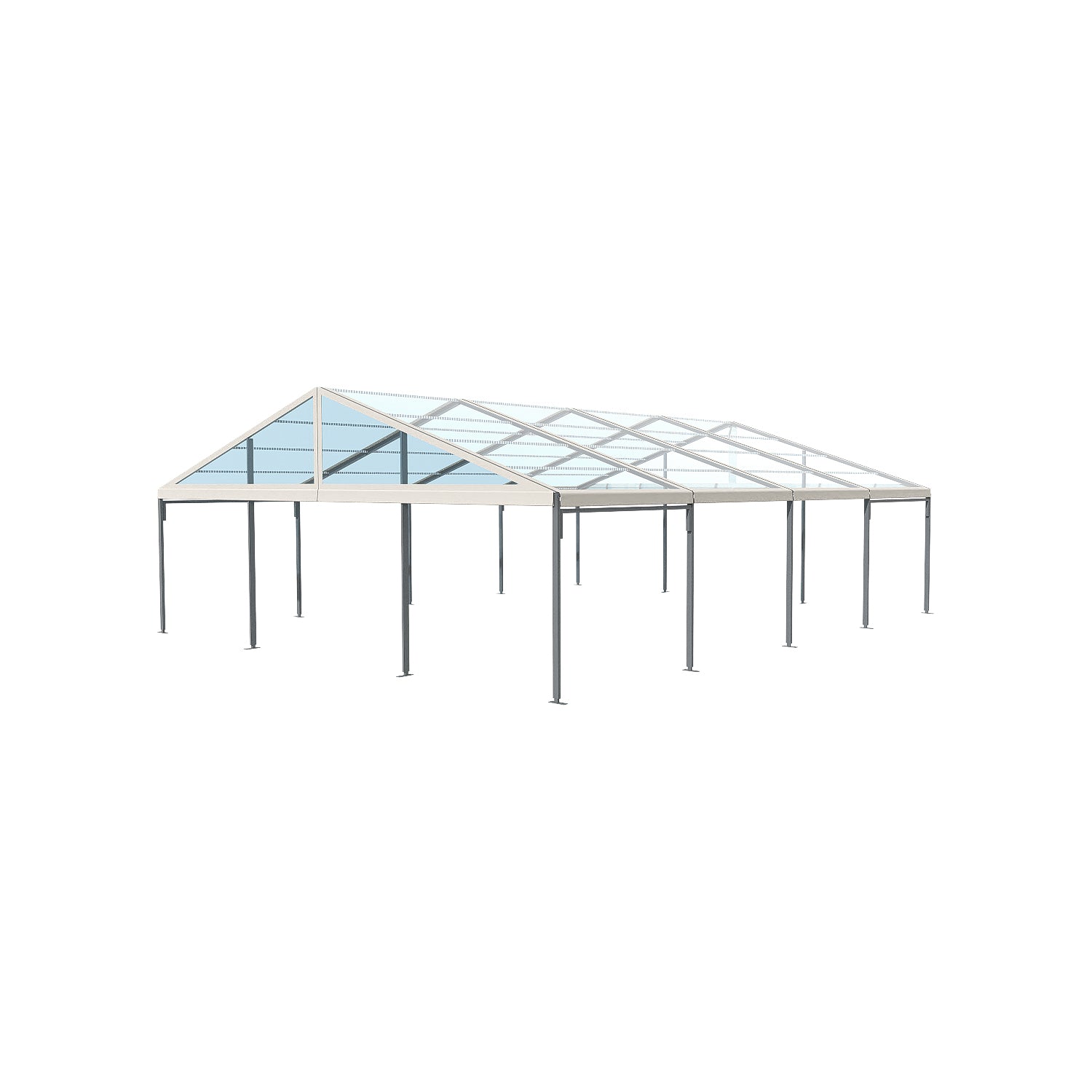

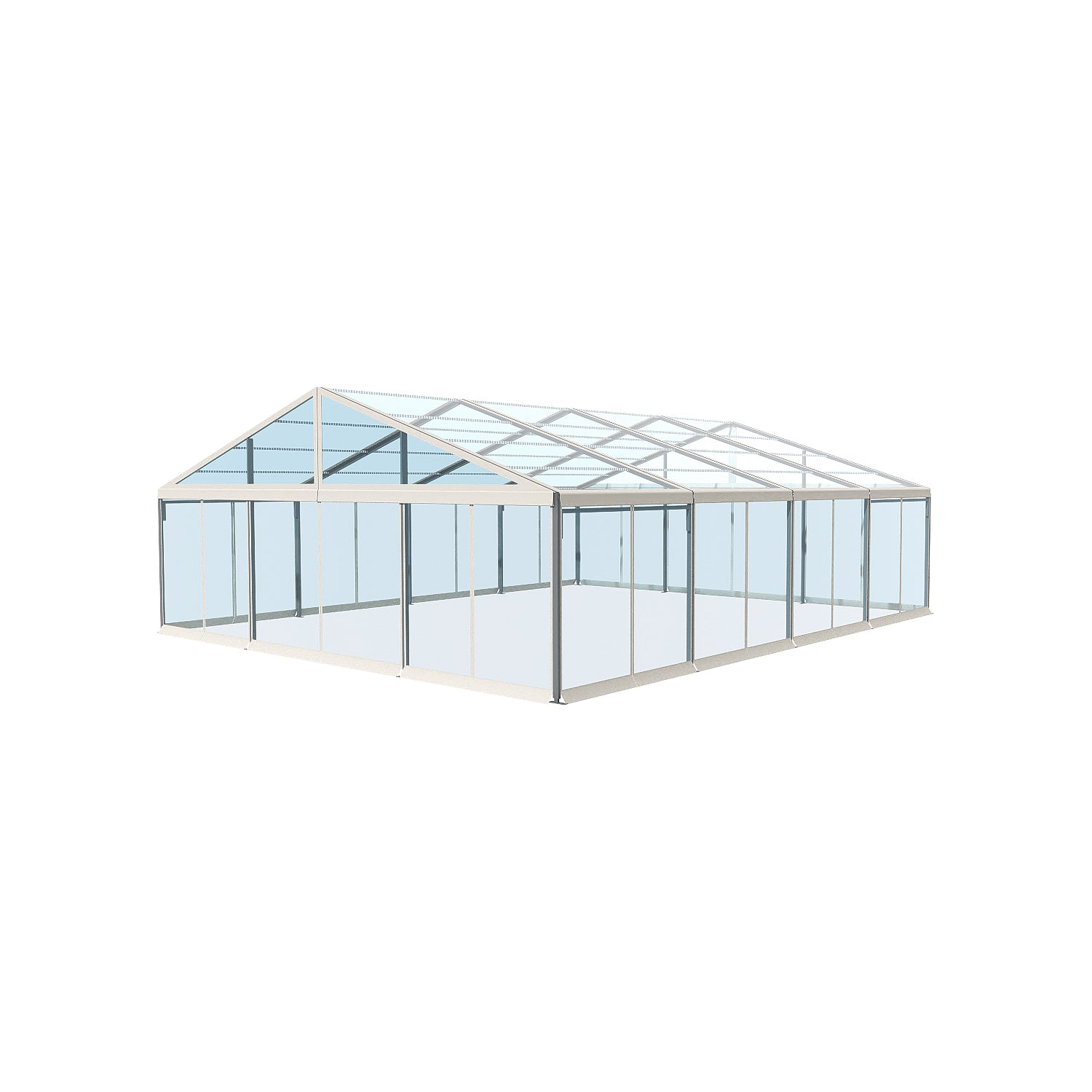

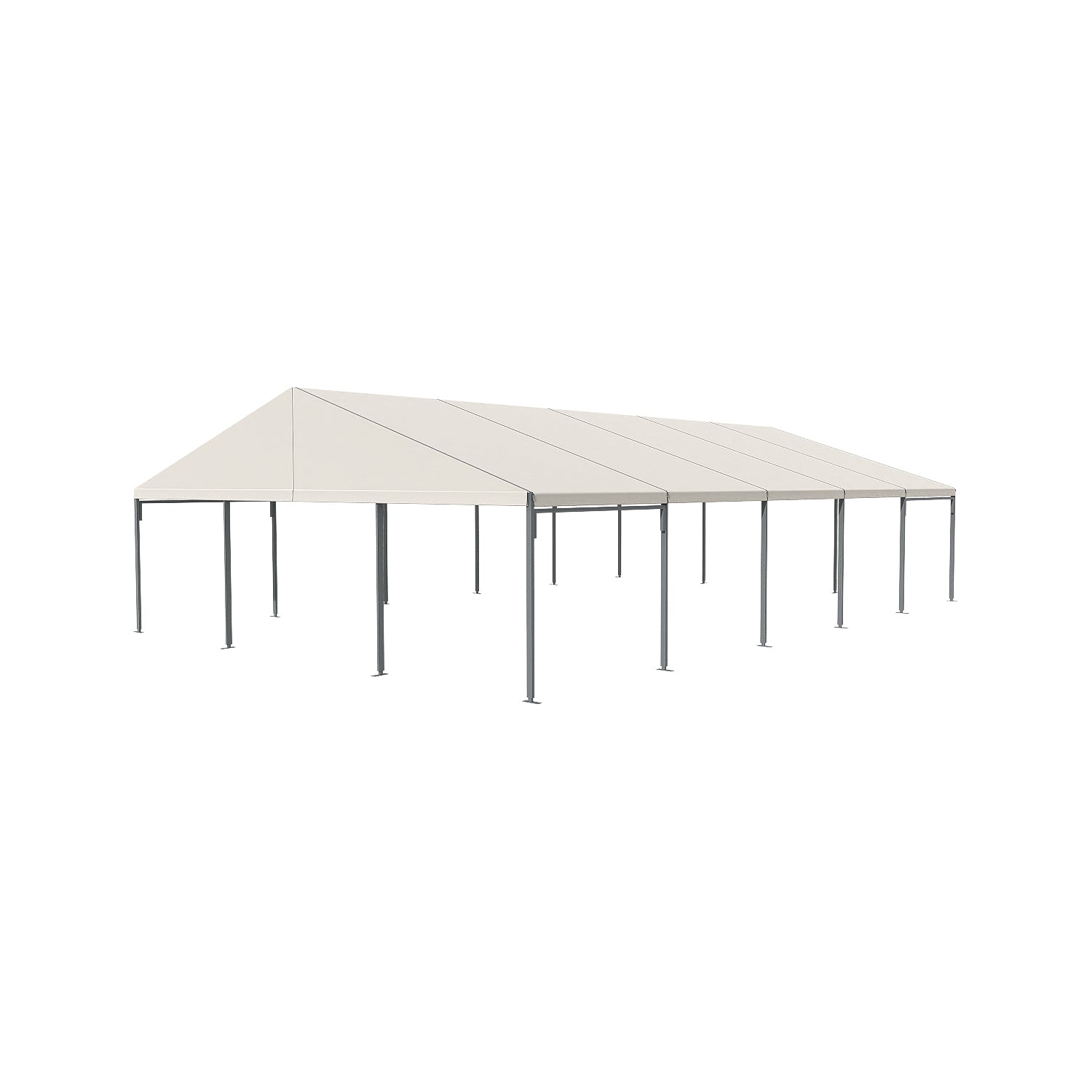

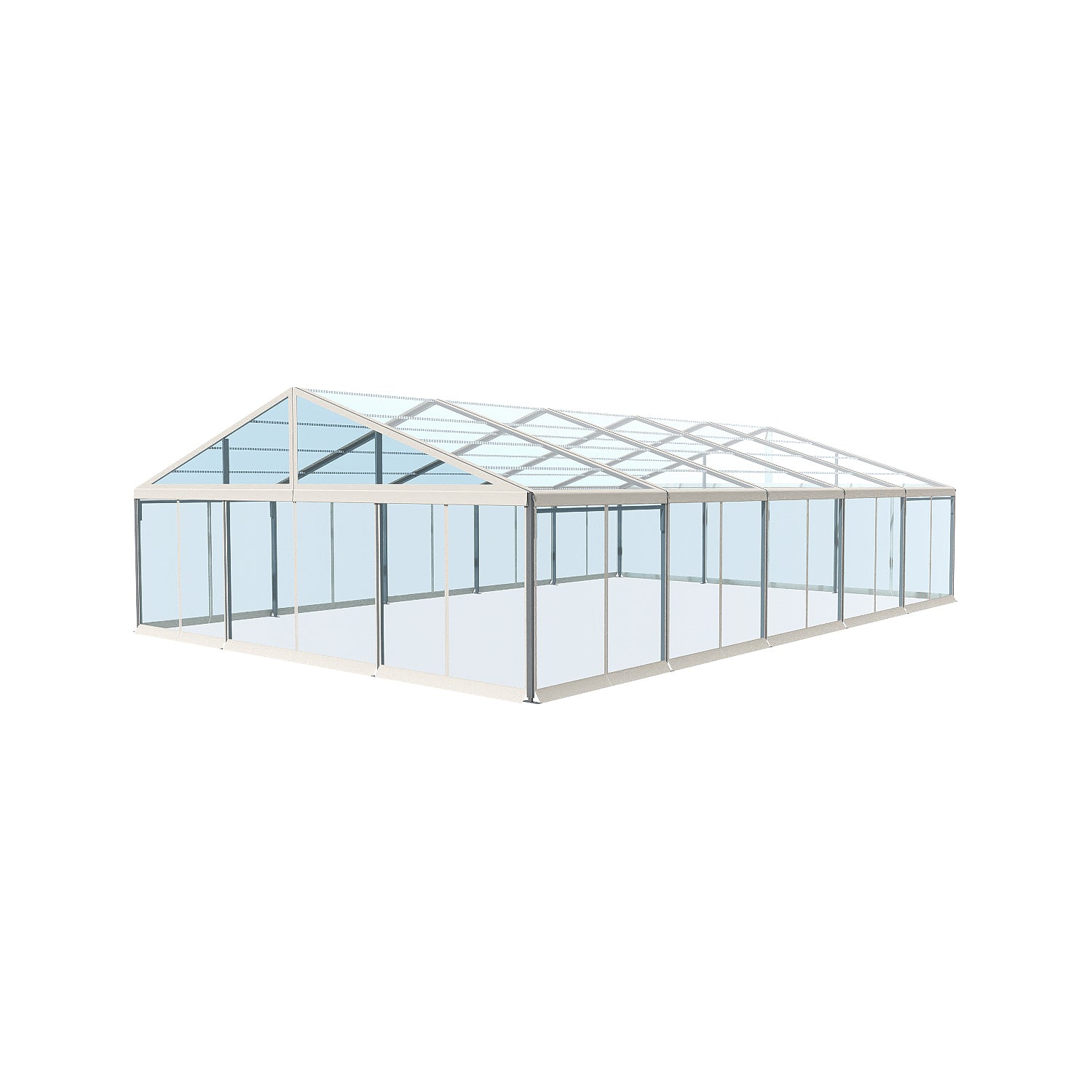

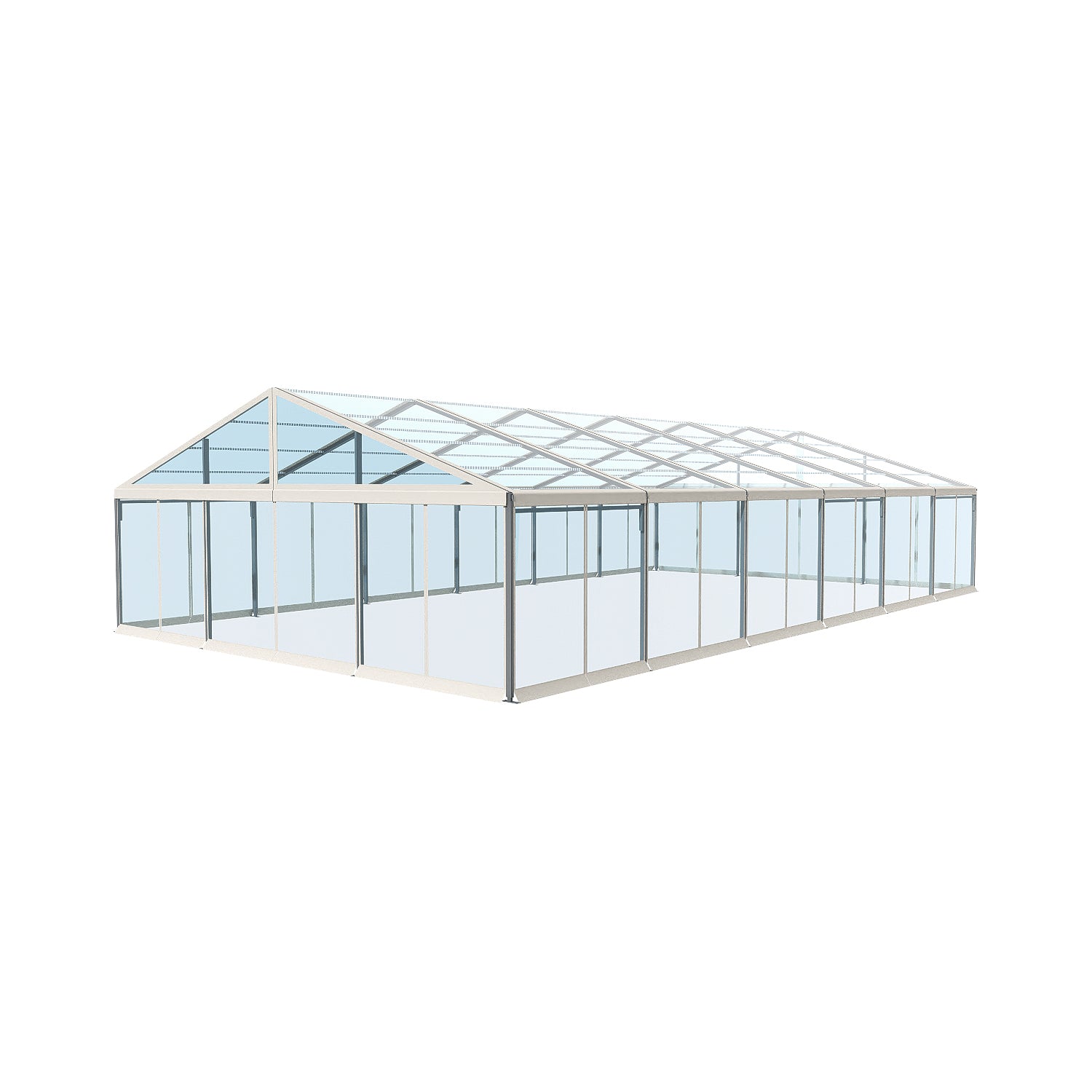

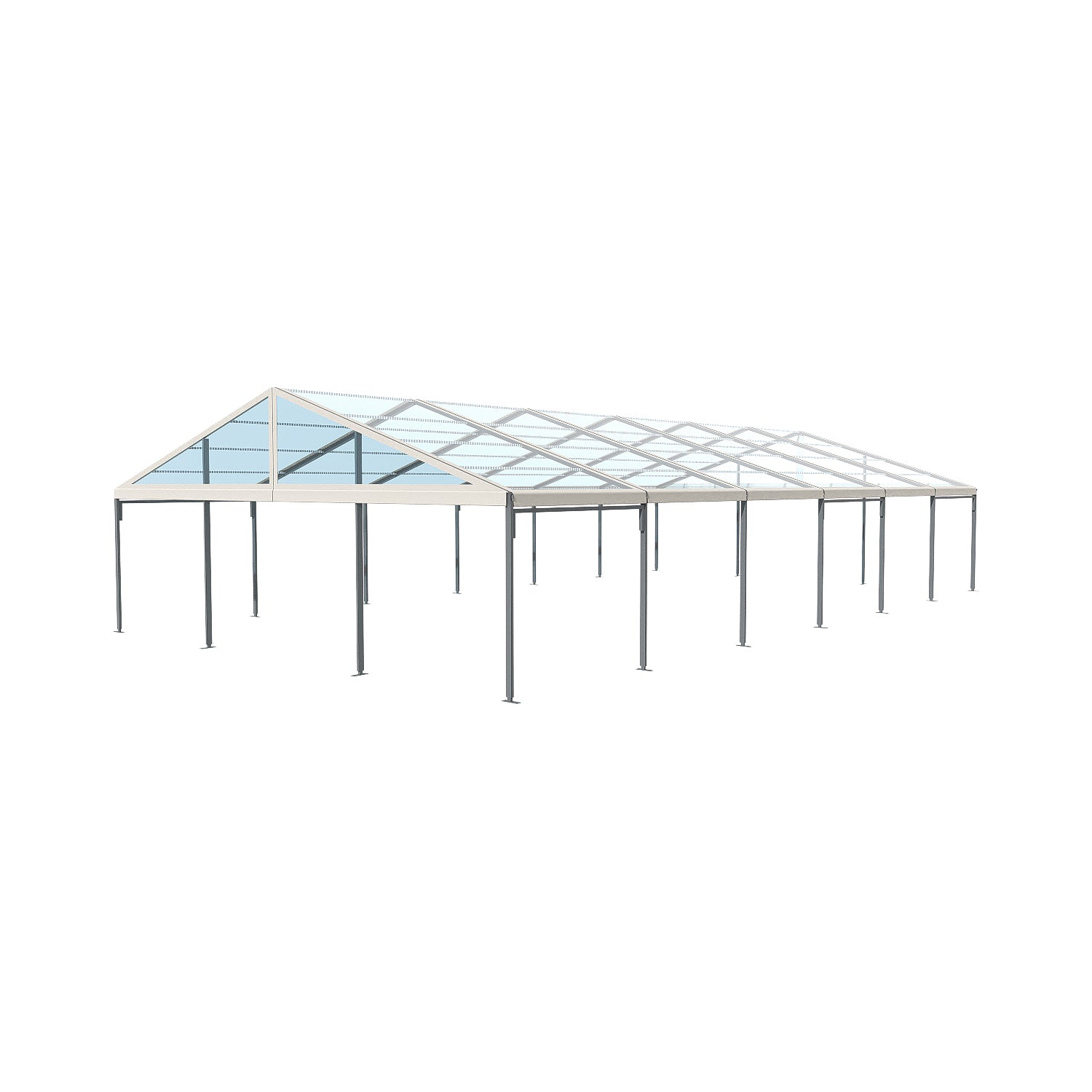

10m Wide (3m Bay) Function Deluxe
The Function Deluxe (FD) Series 10m Wide Clear Span A-Frame is engineered for large-scale events requiring strength, space, and reliability. Featuring a heavy-duty 100mm x 48mm x 3mm frame, advanced roof tensioning, and upgraded sidewall mounting, it delivers superior weather protection and a clear, unobstructed interior. Ideal for corporate events, exhibitions, and premium marquees across Australia.
Oversize product. Forklift or HIAB required for delivery.
Specification Sheet > Instruction > 6m 8m 9m 10m 12m Engineer Cert > PVC Fire Retardant Cert >
| Clear Span Width | 10m |
| Eave Height | 2.6m |
| Ridge Height | 4.53m |
| Roof Pitch | 20º |
| Bay Distance | 3m |
| Roof Fixing | Bar tensioning |
| Frame Profile | 100 x 48 x 3mm (4-channel) |
| Max Allowed Windspeed | 80km/hr 0.3kn/m2 |
| Eave Connectors | Hot-dip galvanized steel insert |
| Frame Material | Hard pressed extruded aluminium 6061/T6 (13HW) |
| Roof Fabric | 850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC |
| Frame Warranty | 10 years |
| Roof Warranty | 5 years white or coloured PVC / 2 years printed or clear PVC |

Capacity Chart
| Size | Area (sqm) |
Cocktail Standing |
Theatre Seating |
Seating Trestle Table |
Seating Round Table |
| 10m x 12m | 120 | 160 | 120 | 96 | 80-96 |
| 10m x 15m | 150 | 200 | 160 | 120 | 100-120 |
| 10m x 18m | 180 | 240 | 200 | 144 | 120-144 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.
Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony
Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables
Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.
Add-on accessories available (contact us for pricing)
