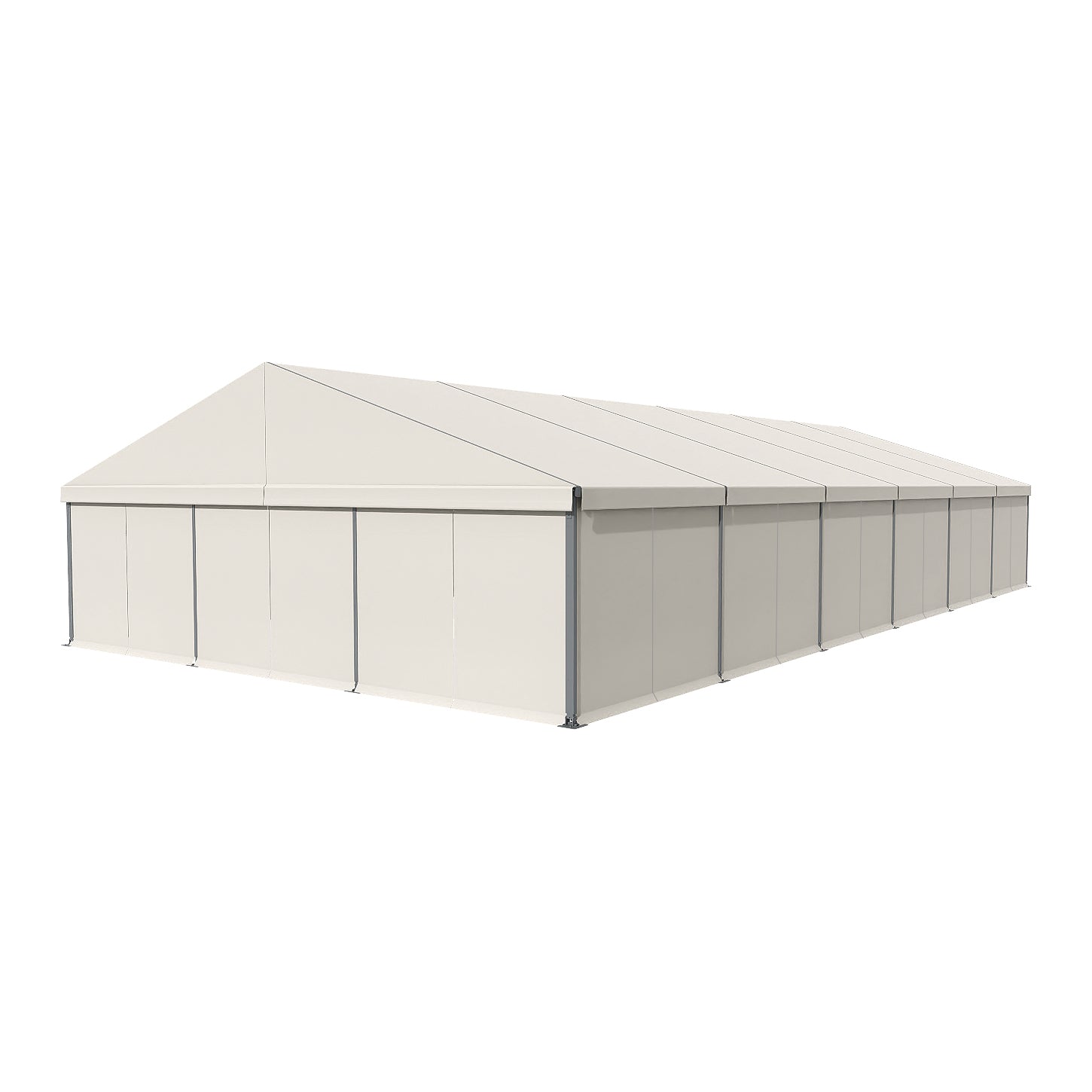

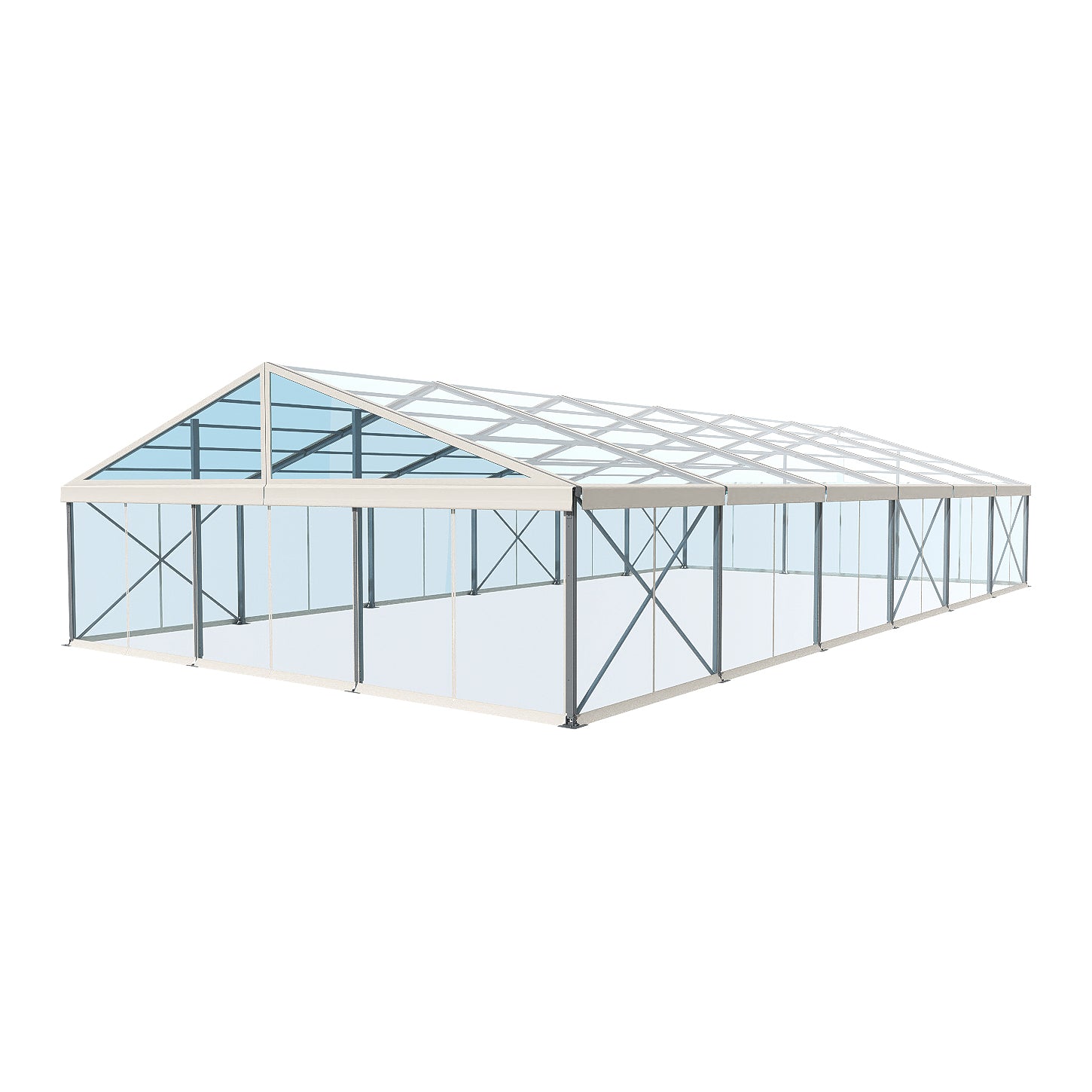

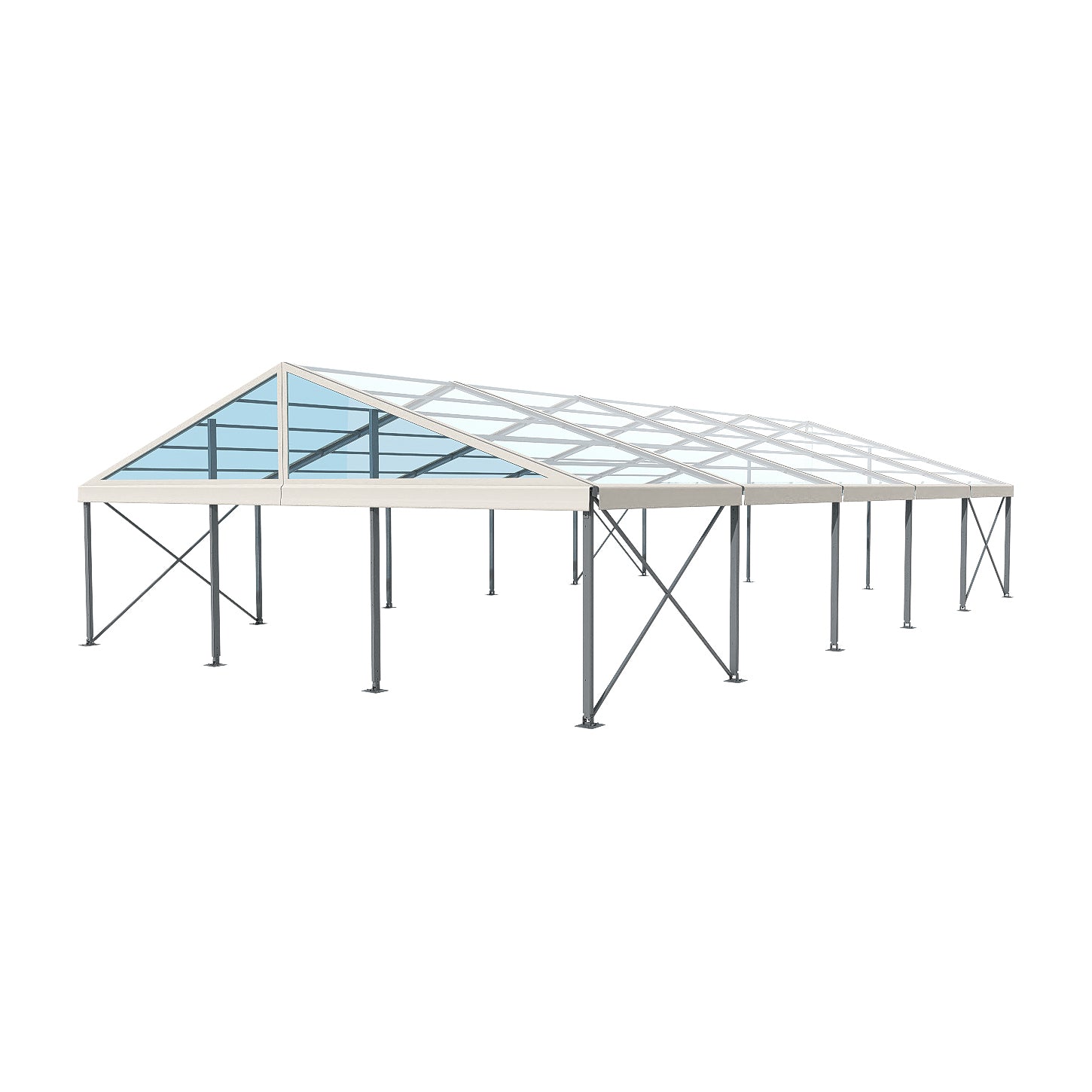

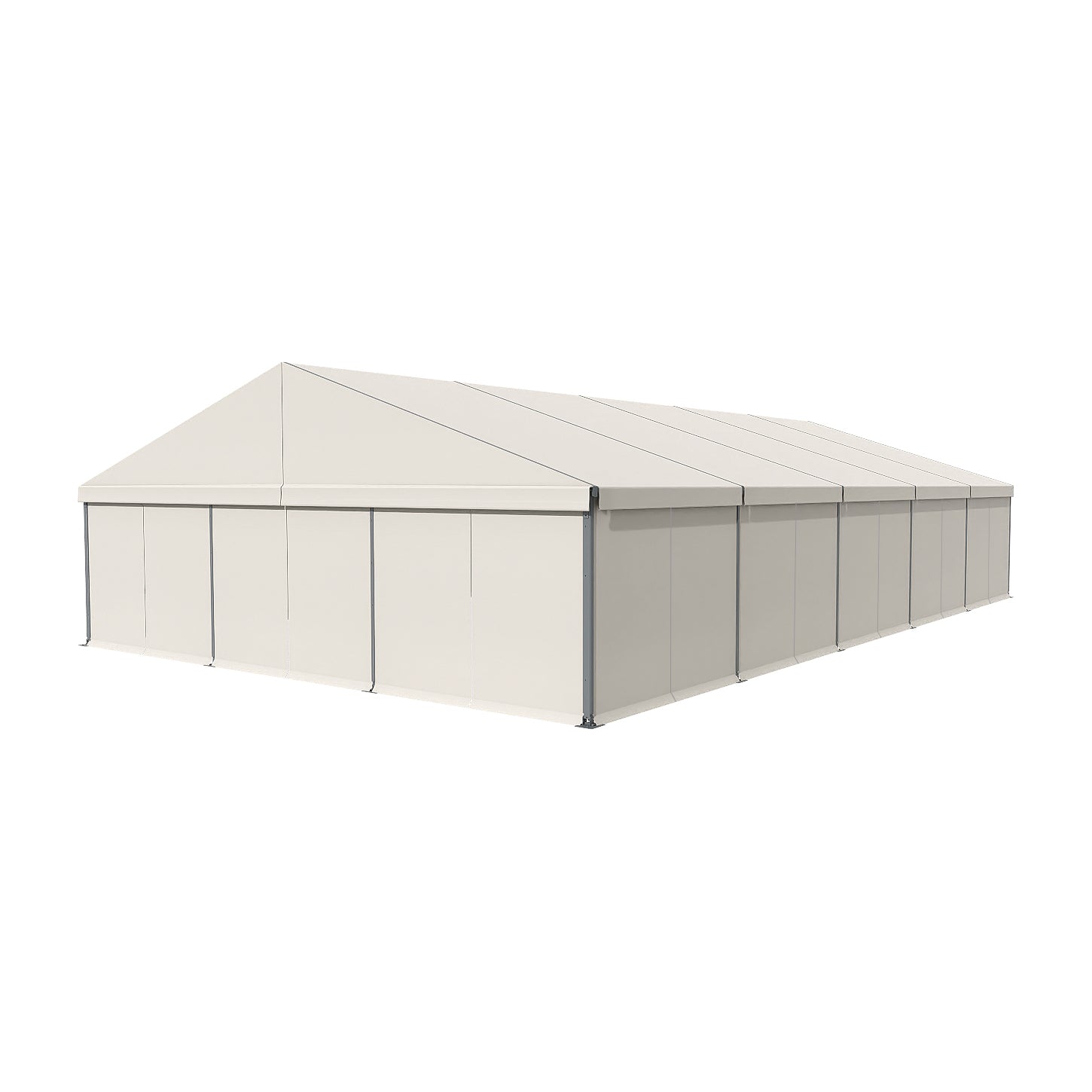

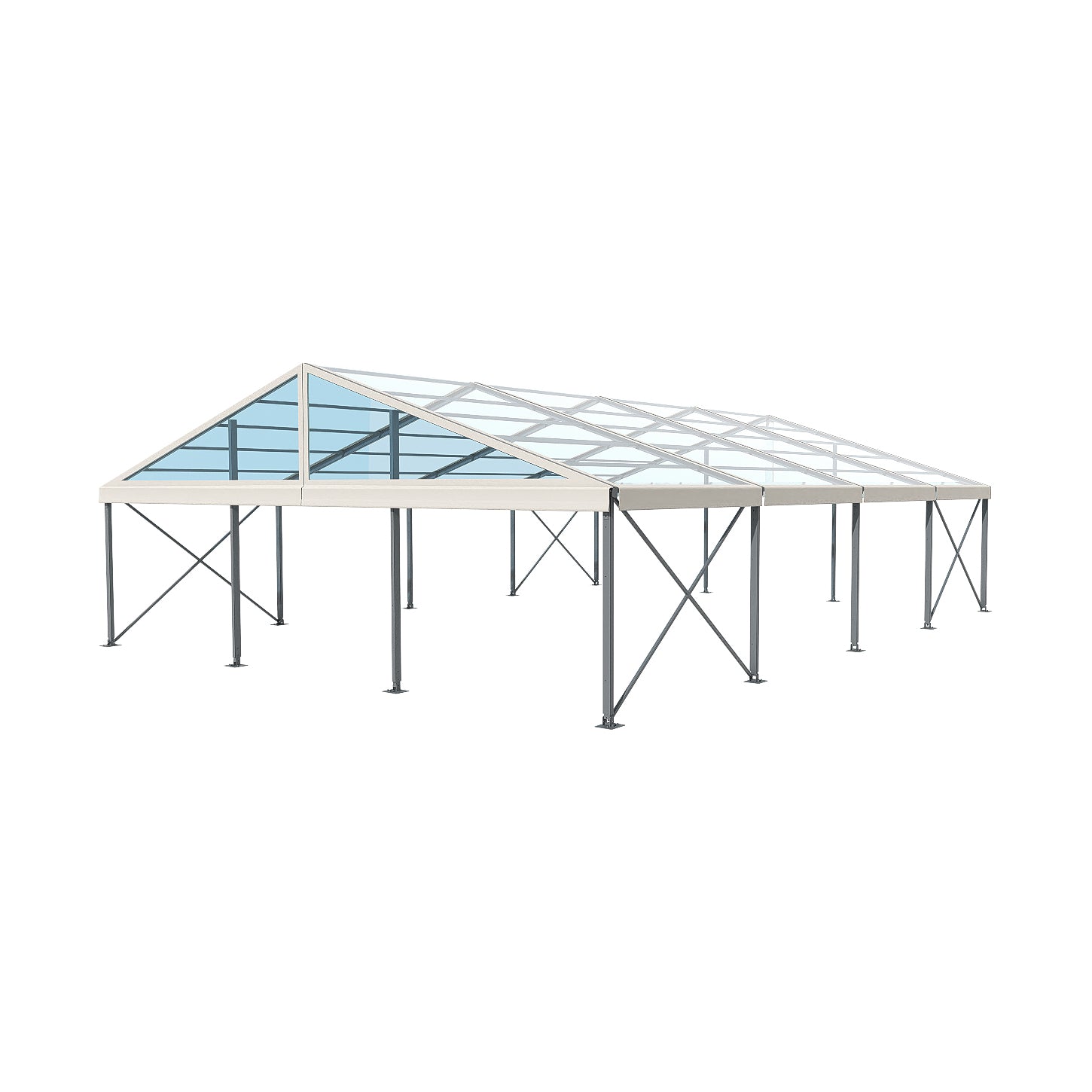

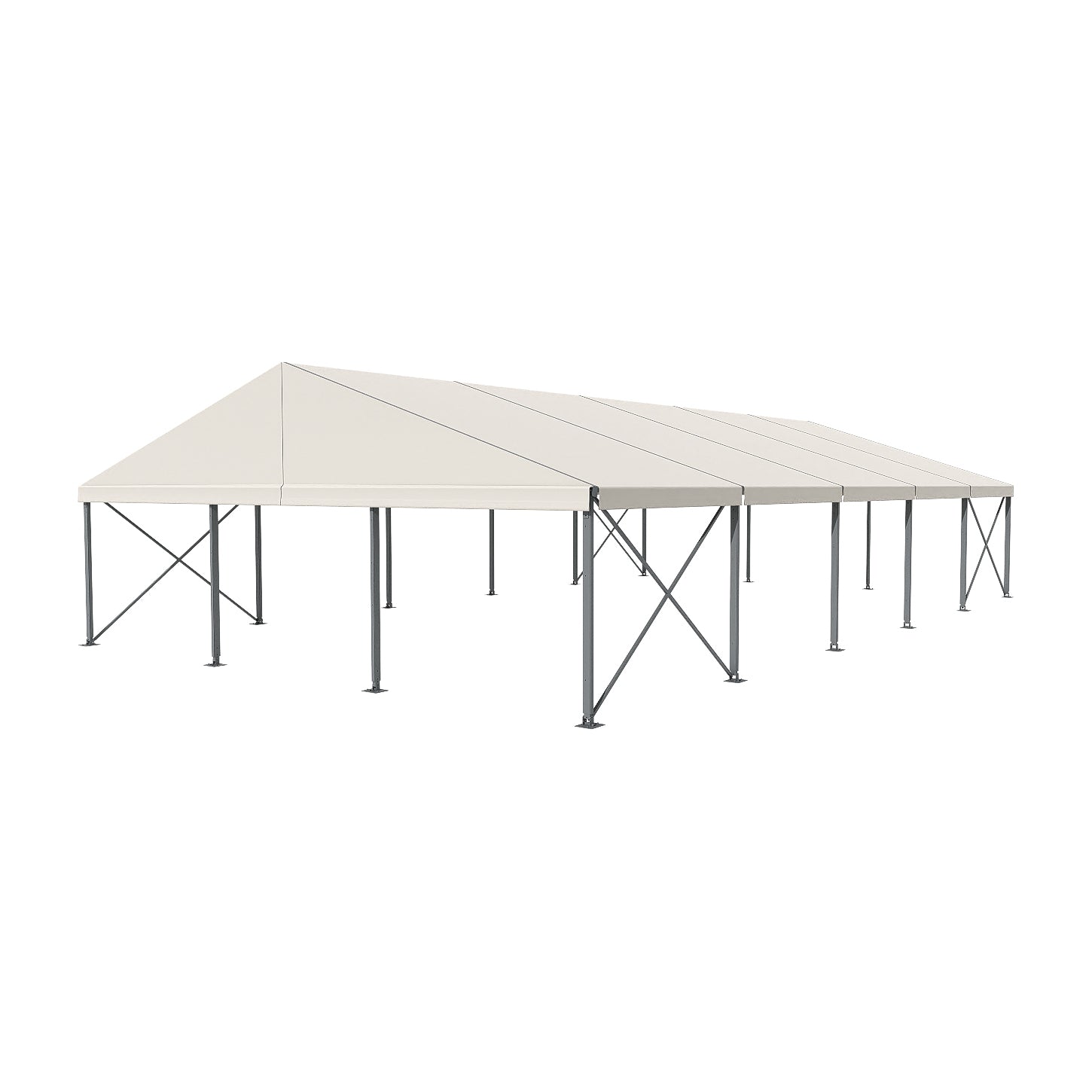

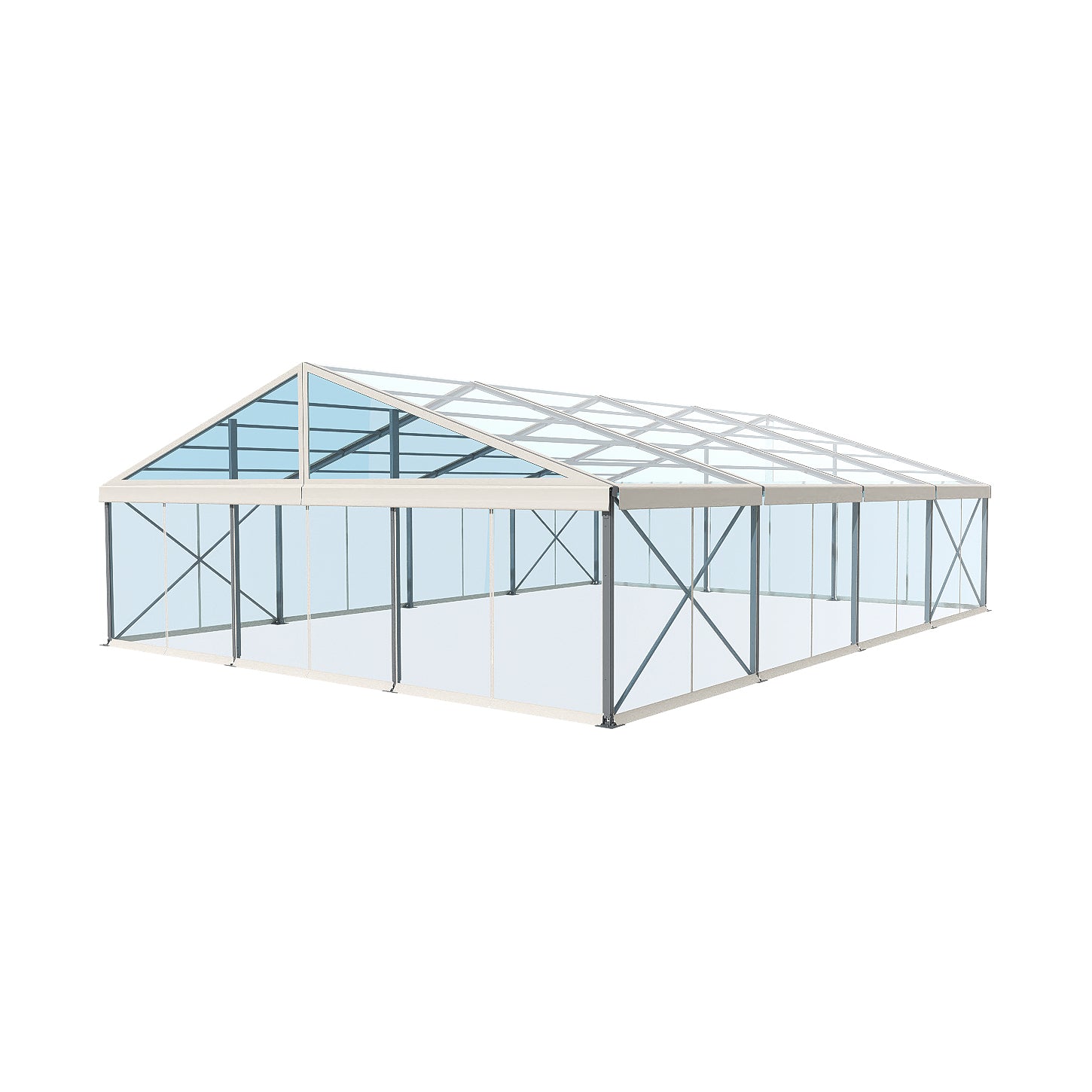

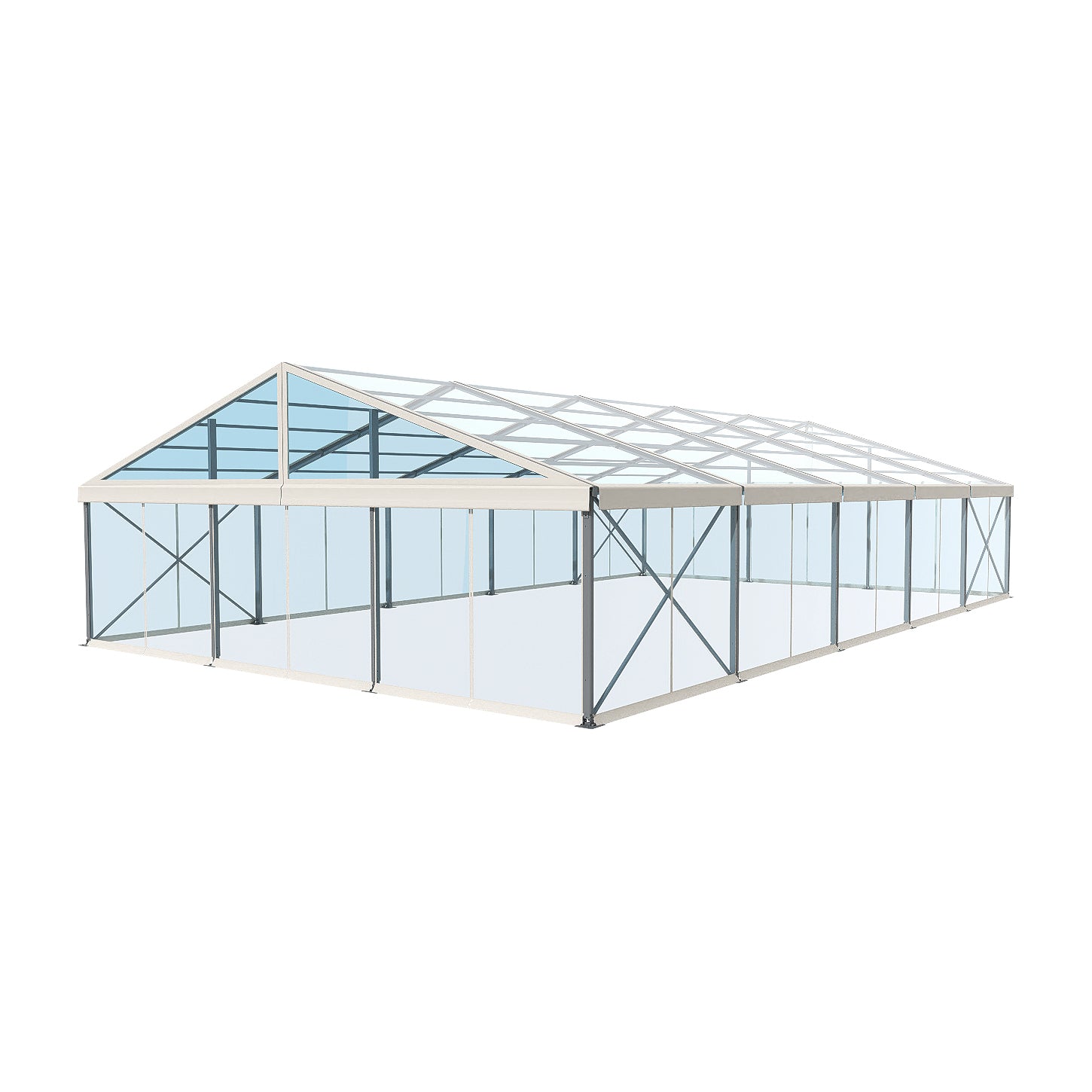

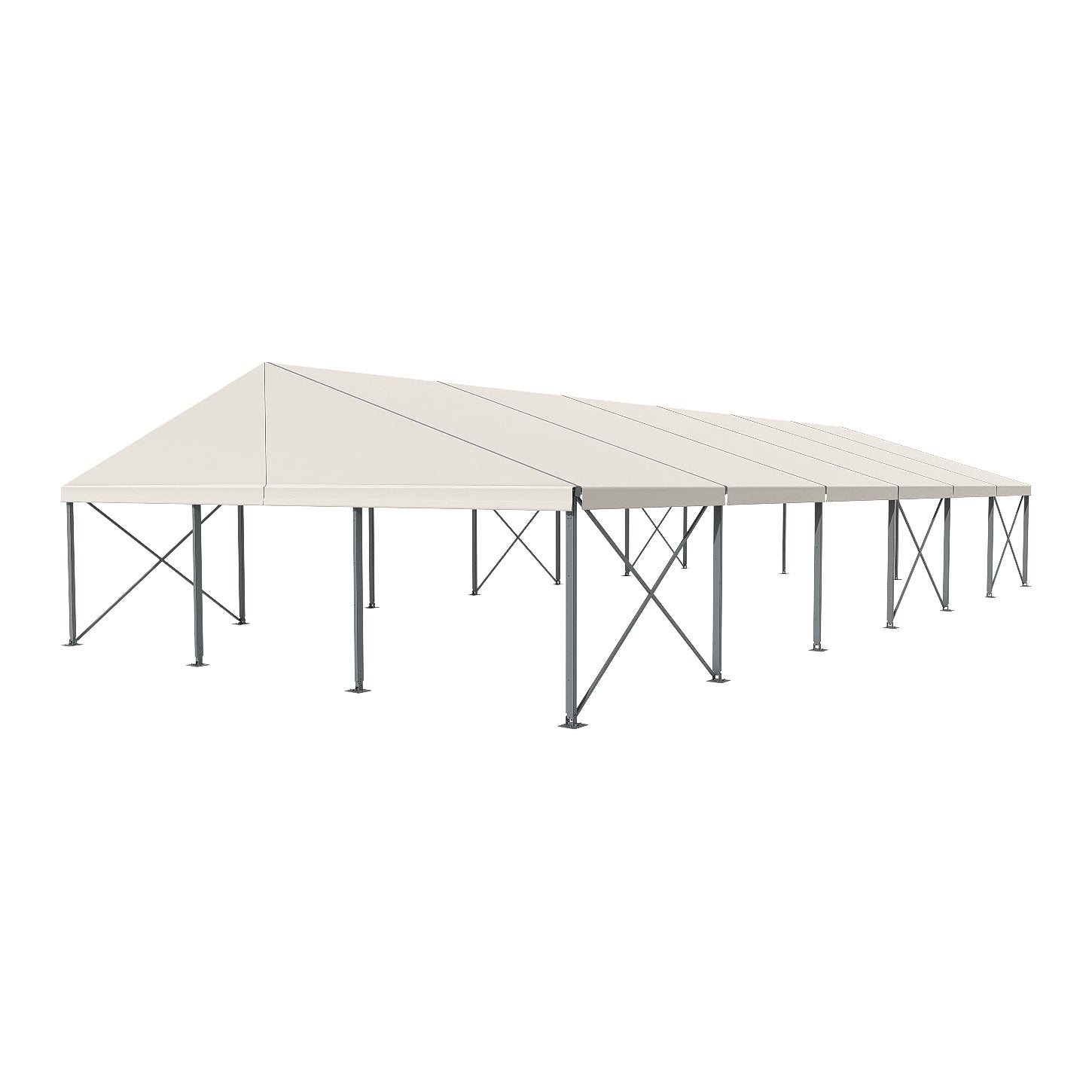

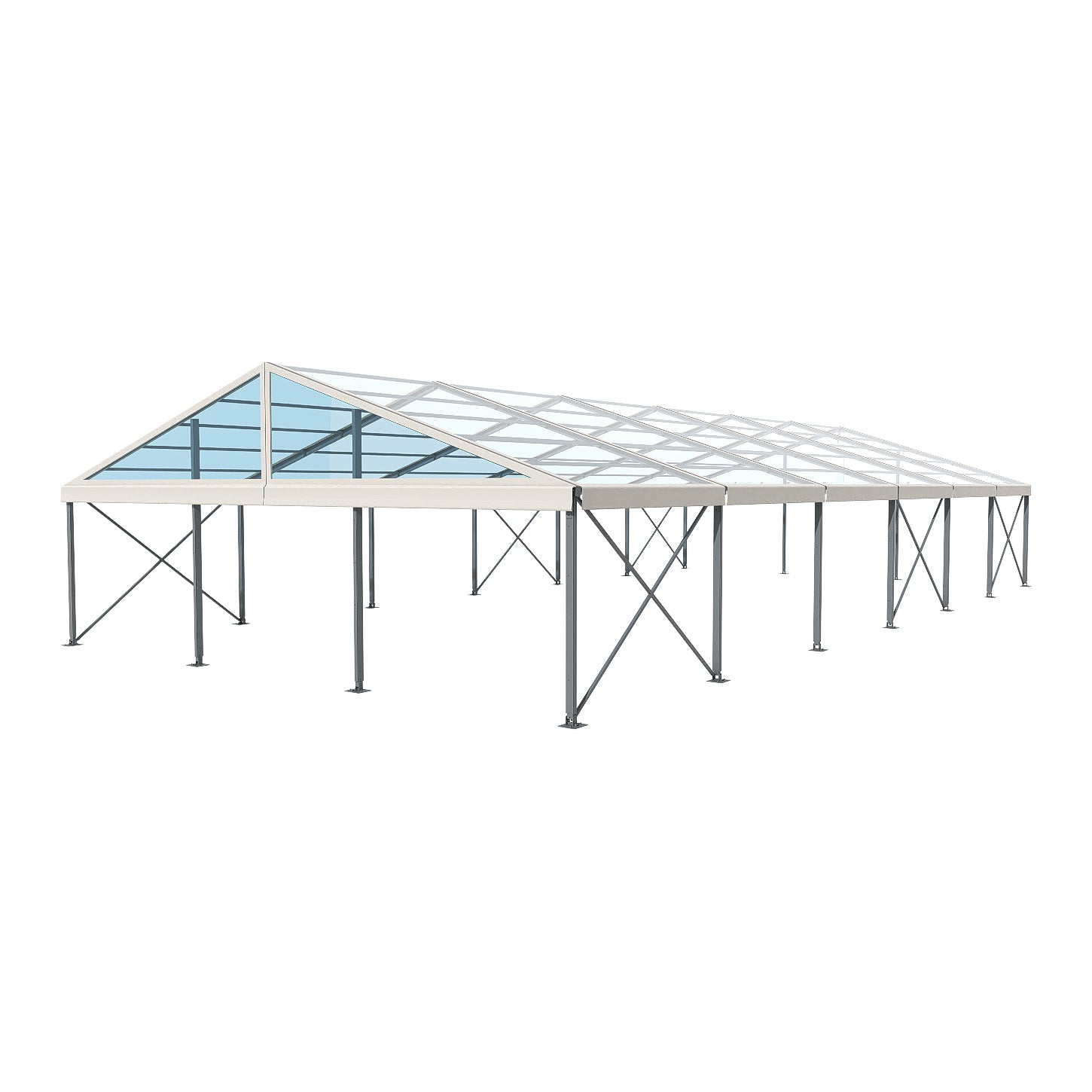

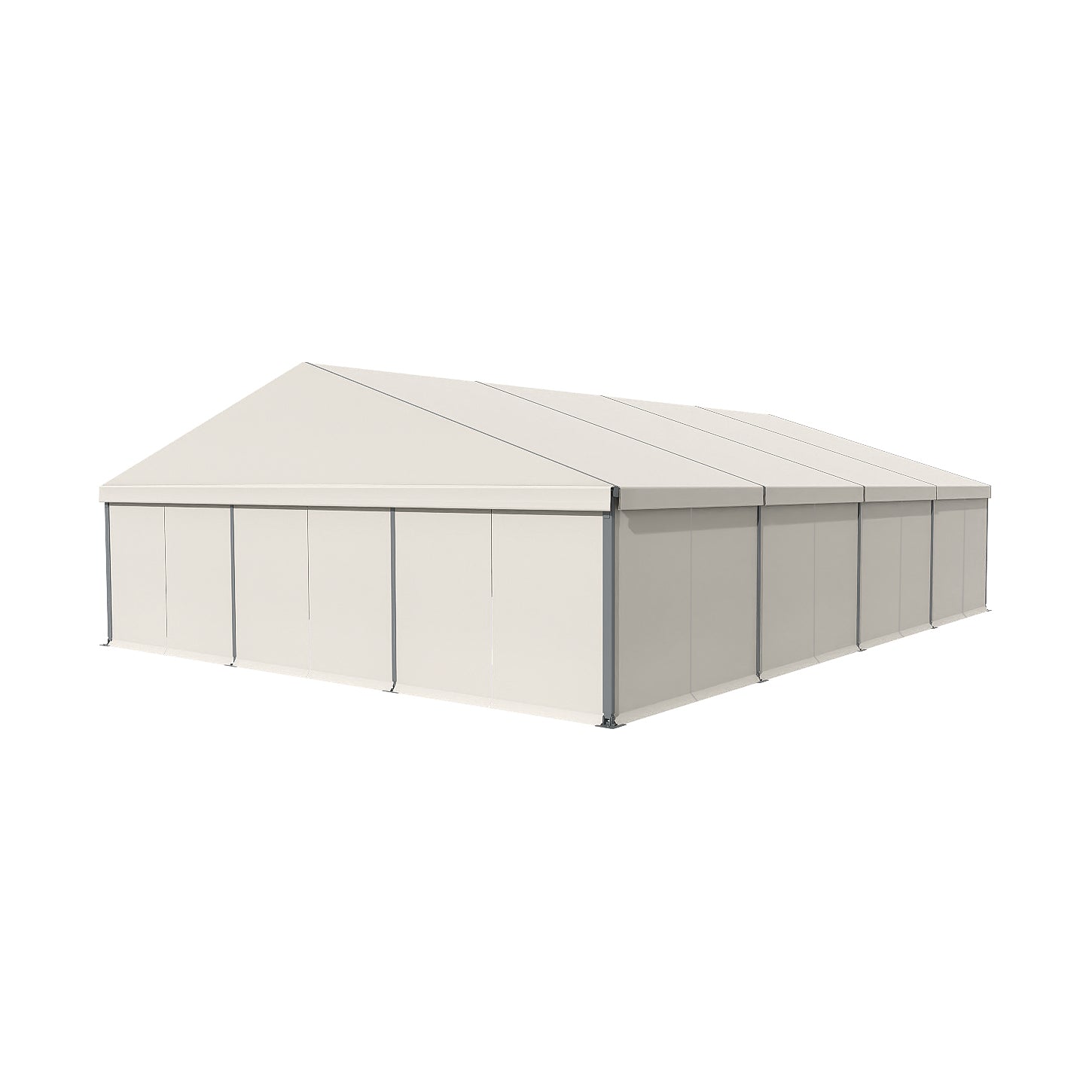

15m Wide Event Deluxe

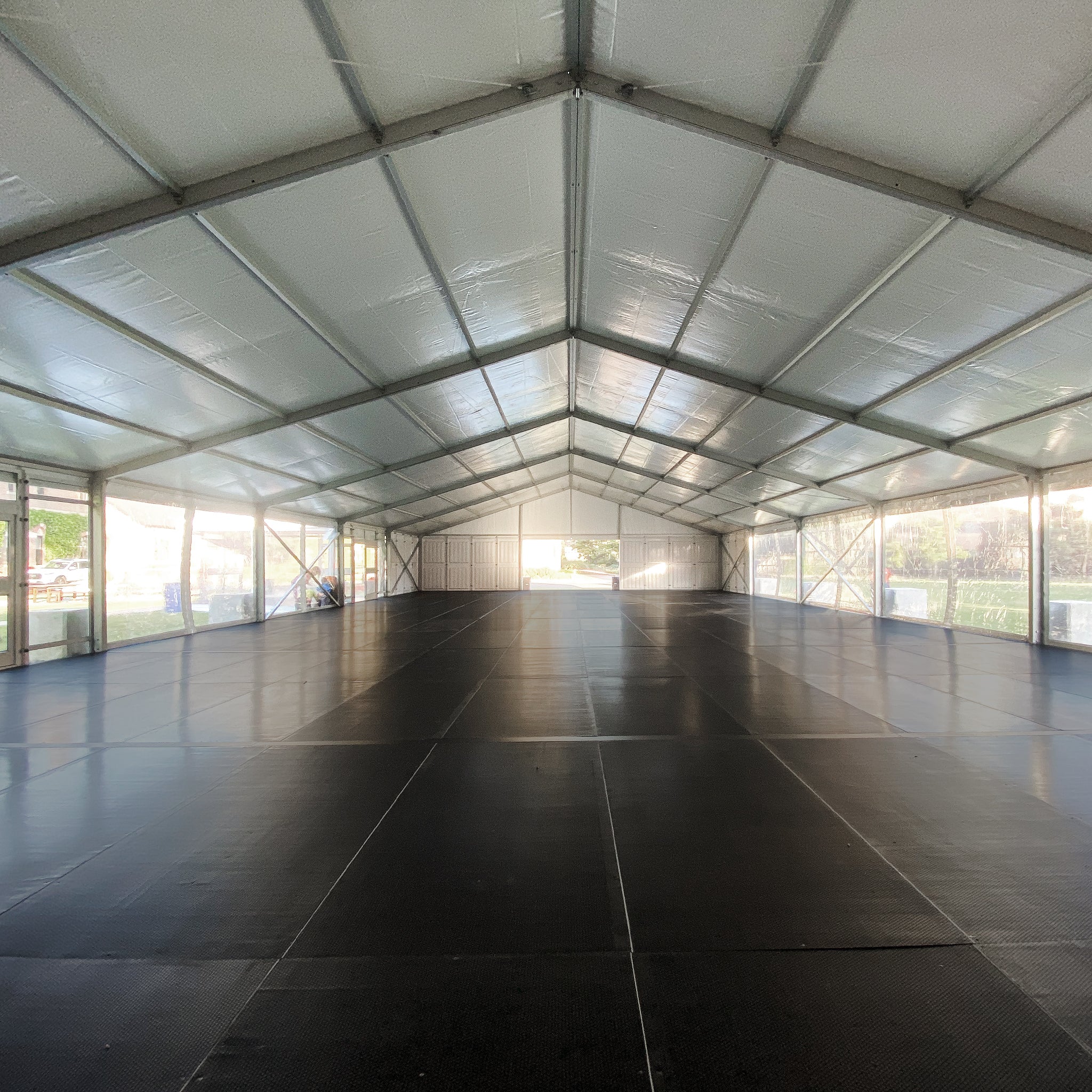

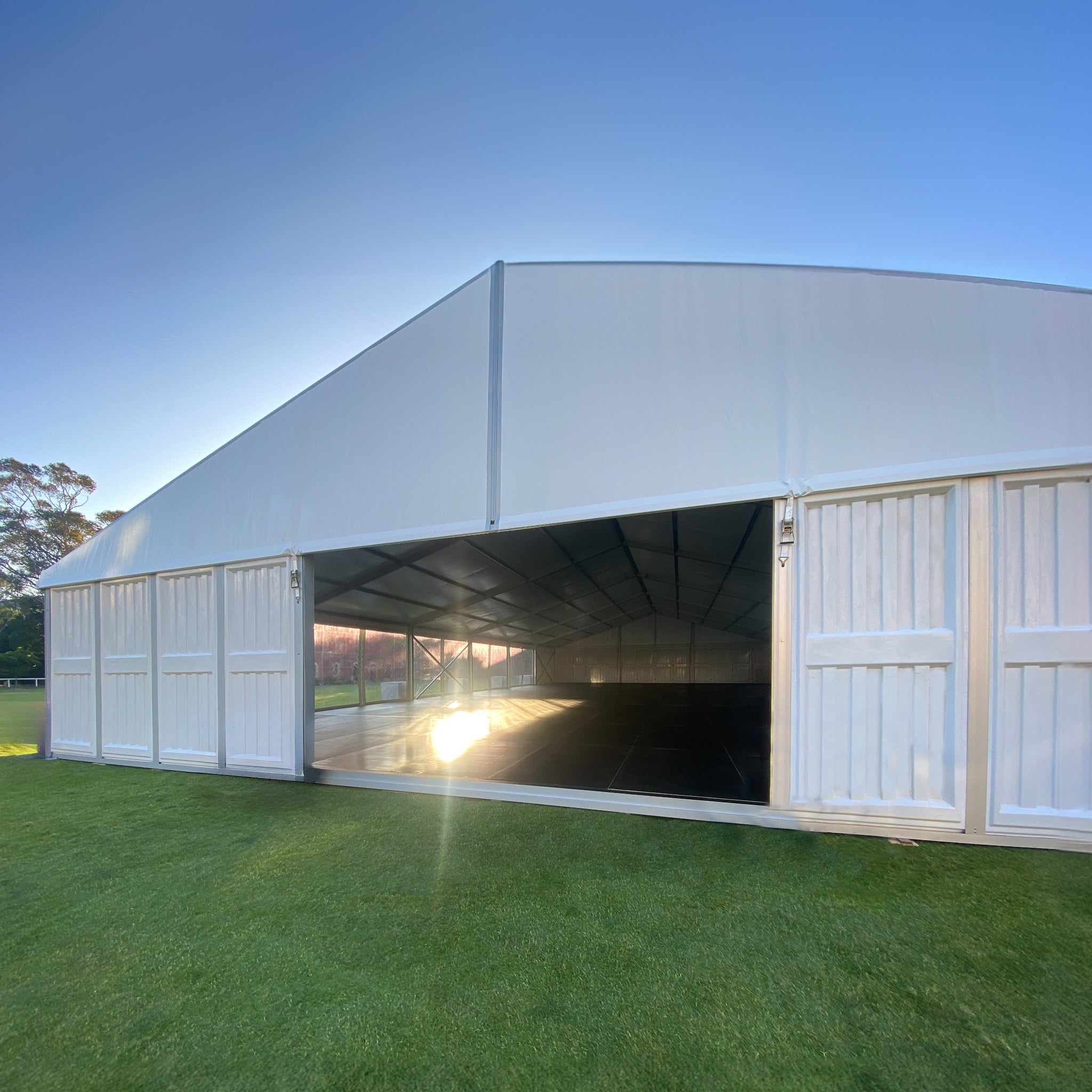

The 15m Wide Clear Span A-Frame Event Deluxe Series delivers maximum internal space without support poles, making it one of the most versatile event marquees for large-scale events and functional installations. Commonly used for exhibitions, promotions, sports events, workshops, warehouses and emergency relief, this robust structure is engineered for strength, adaptability and long-term reliability in Australian conditions.

Oversize product. Forklift or HIAB required for delivery.

Contact us for 10m / 12m wide.

Specification Sheet >    Instruction >   Engineer Certification >   Fire Test PVC Cert >

Clear Span Width	15m
Eave Height	3m
Ridge Height	4.49m
Roof Pitch	20º
Bay Distance	5m
Roof Fixing	Bar tensioning
Frame Profile	166 x 88 x 3mm (4-channel)
Max Allowed Windspeed	80km/hr 0.3kn/m2, 91.8km/hr
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)
Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC

Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table
15m x 20m	300	400	320	240	200-240
15m x 25m	375	500	400	300	250-300
15m x 30m	450	600	480	360	300-360

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.

Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.

Add-on accessories available (contact us for pricing)
