20m Wide Event Crest

The Extreme Crest (EC) Series 20m Wide Clear Span A-Frame is our most advanced large-format marquee solution. Featuring a fully clear internal span and expandable widths up to 60m, it’s purpose-built for major events, logistics, and commercial projects. Engineered for strength and reliability, this structure delivers maximum space efficiency with professional-grade performance.

Oversize product. Forklift or HIAB required for delivery.

Contact us for 15m wide.

Specification Sheet >    Instructions >   Engineer Certificate >    Fire Test PVC Certificate >

Clear Span Width	20m
Eave Height	4m
Ridge Height	7.16m
Roof Pitch	18º
Bay Distance	5m
Roof Fixing	Bar tensioning
Frame Profile	203 x 112 x 4mm (4-channel)
Max Allowed Windspeed	80km/hr 0.5kn/m2
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)
Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC



Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

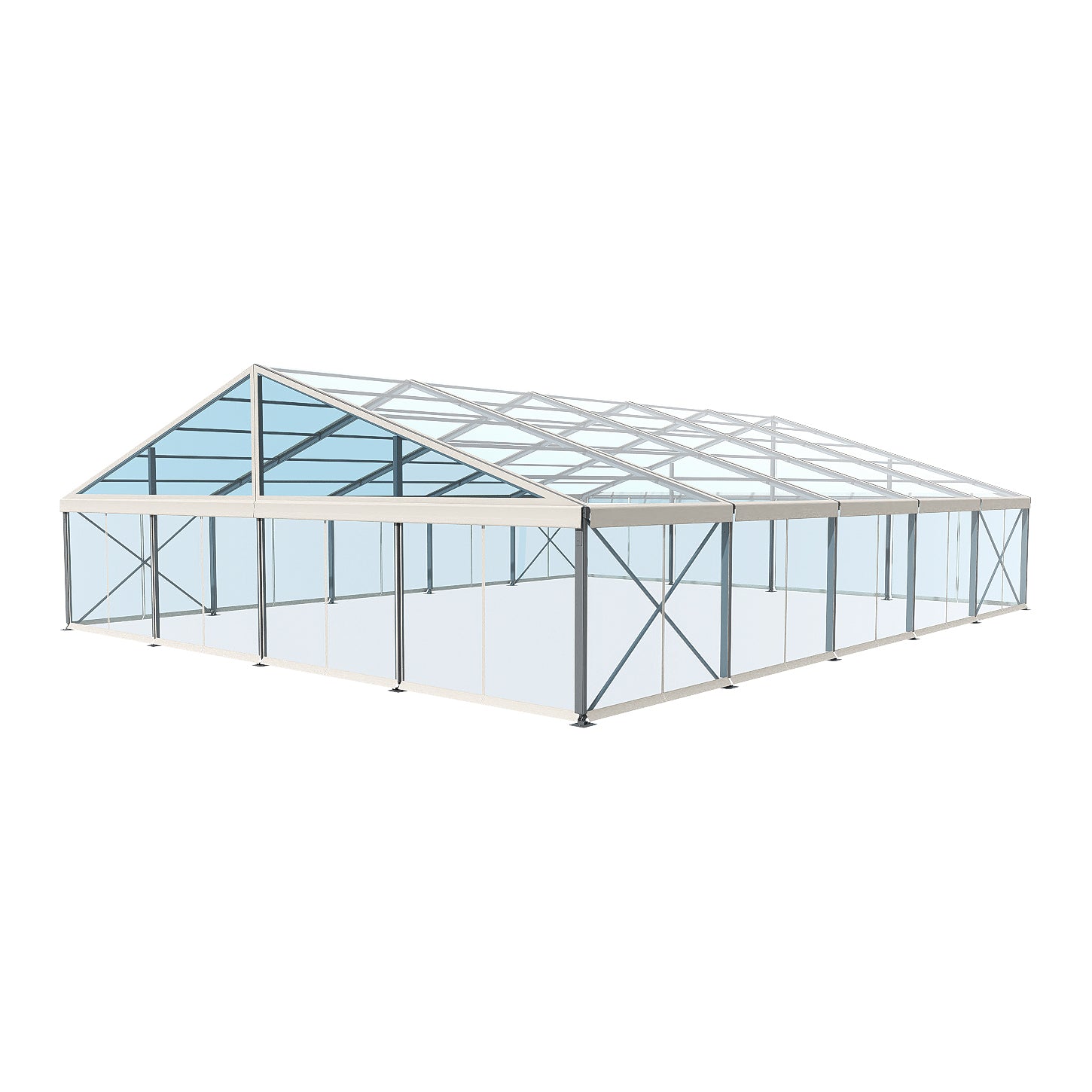

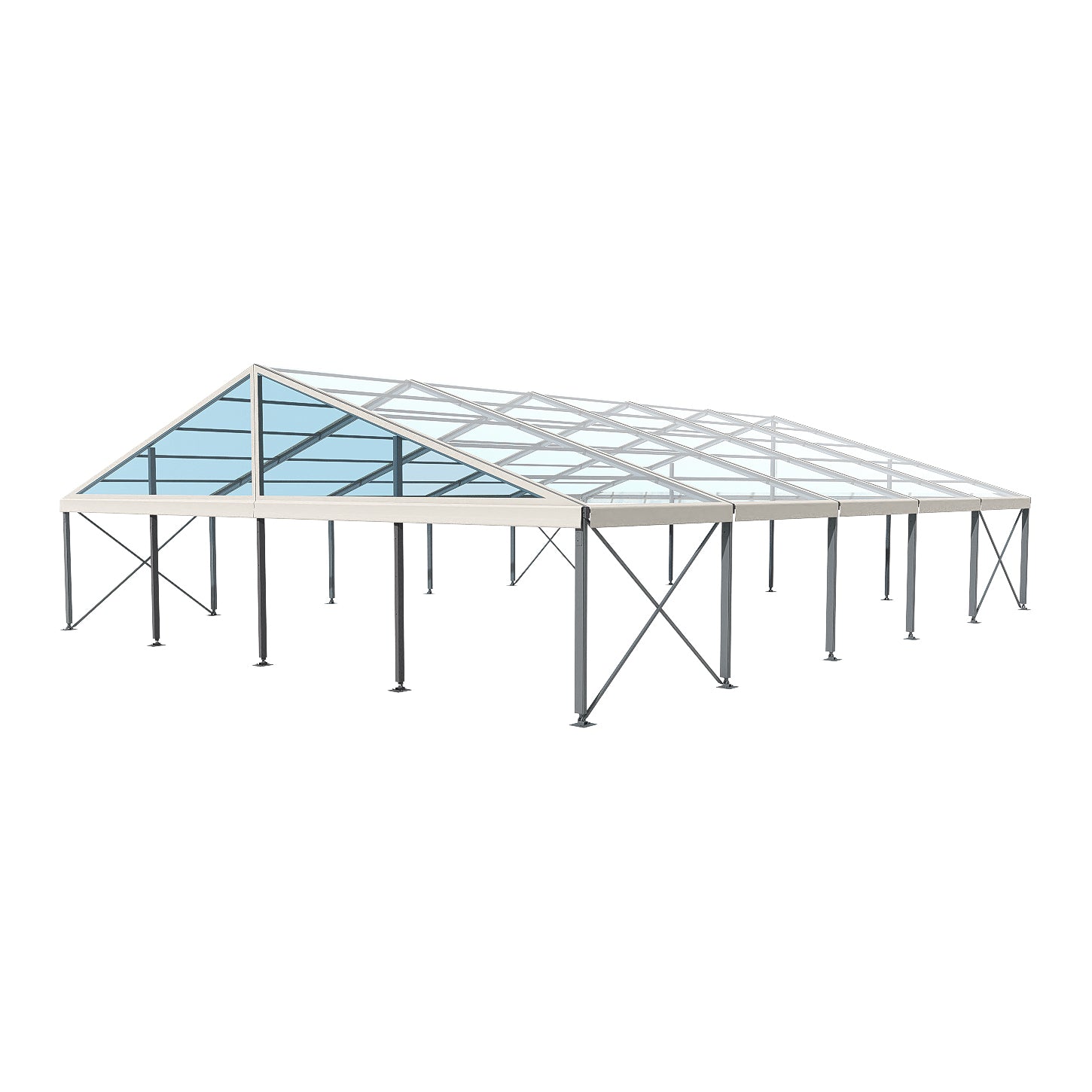

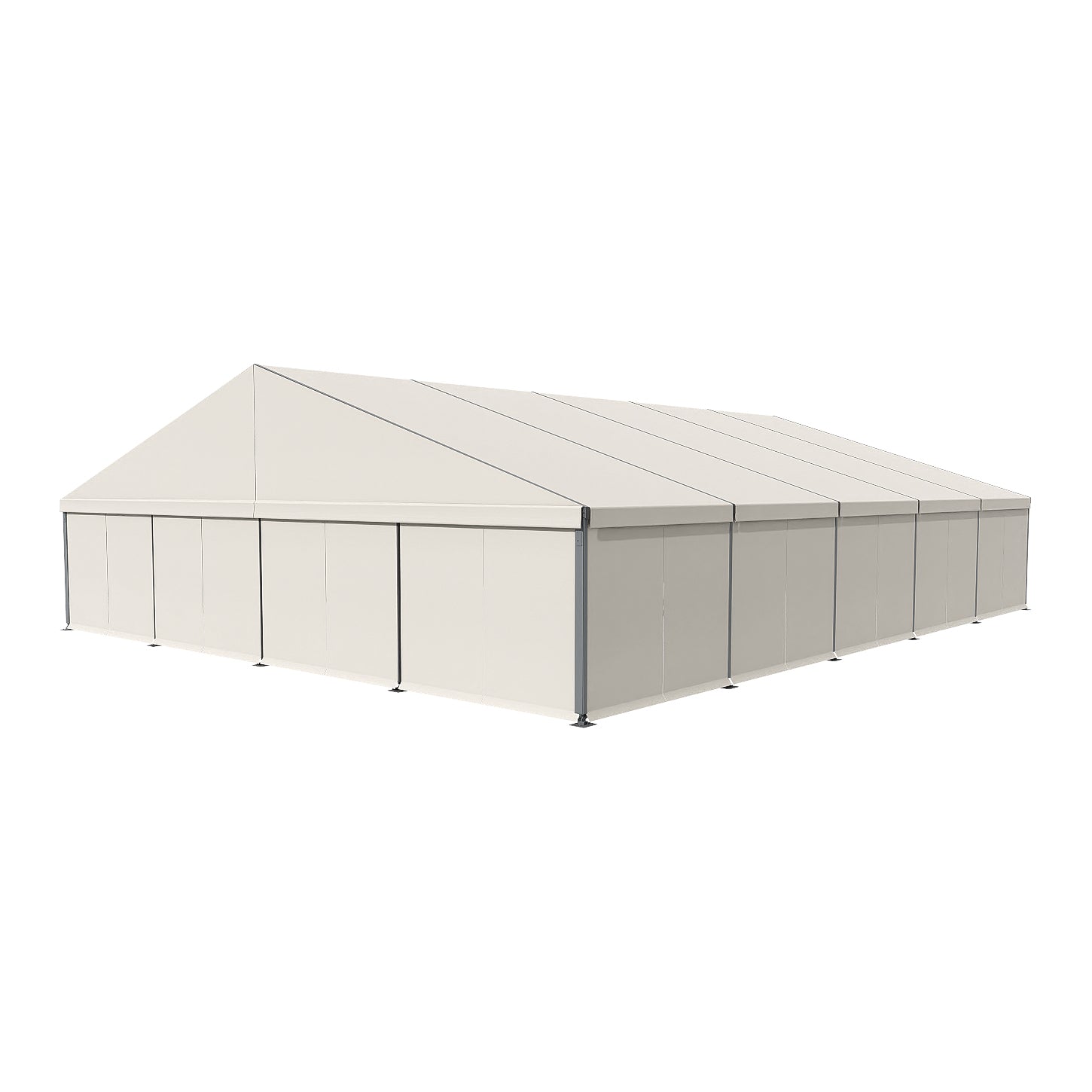

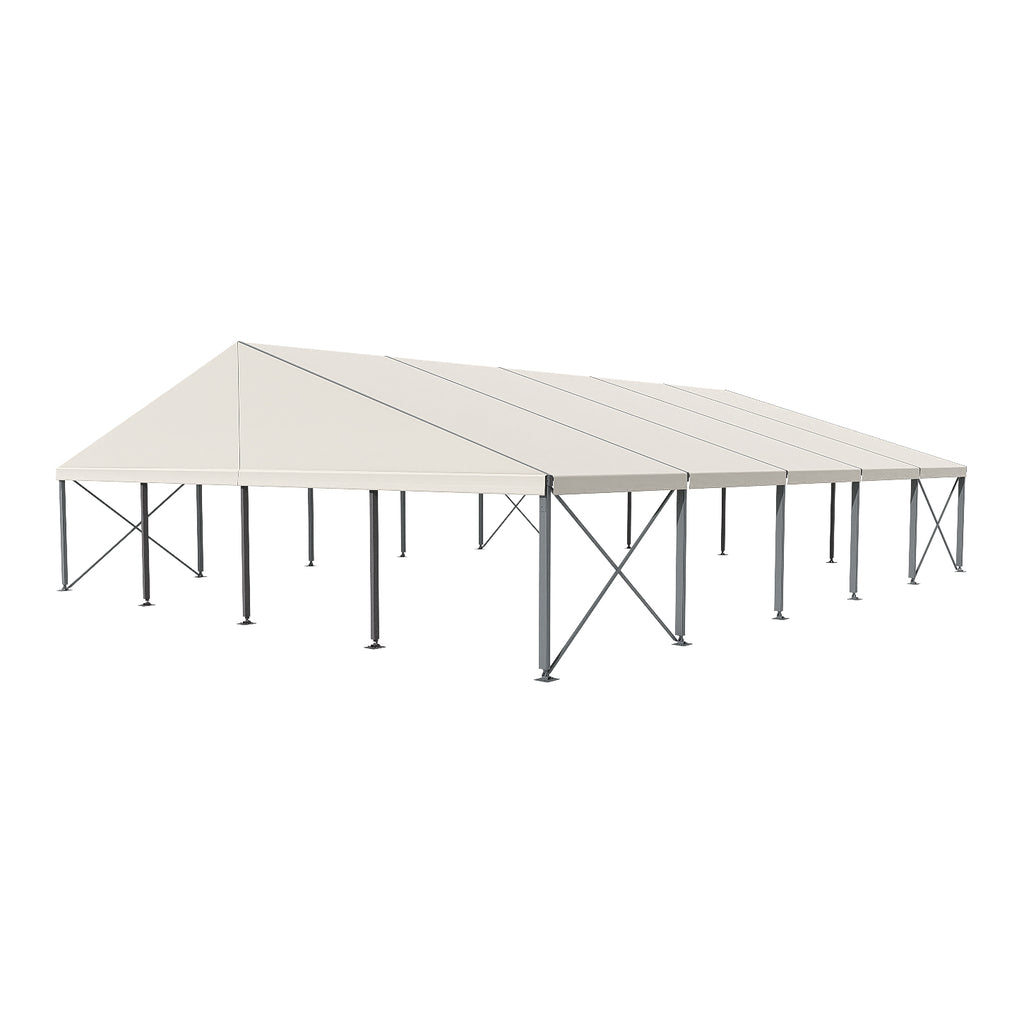

20m x 25m	500	664	540	400	400-480

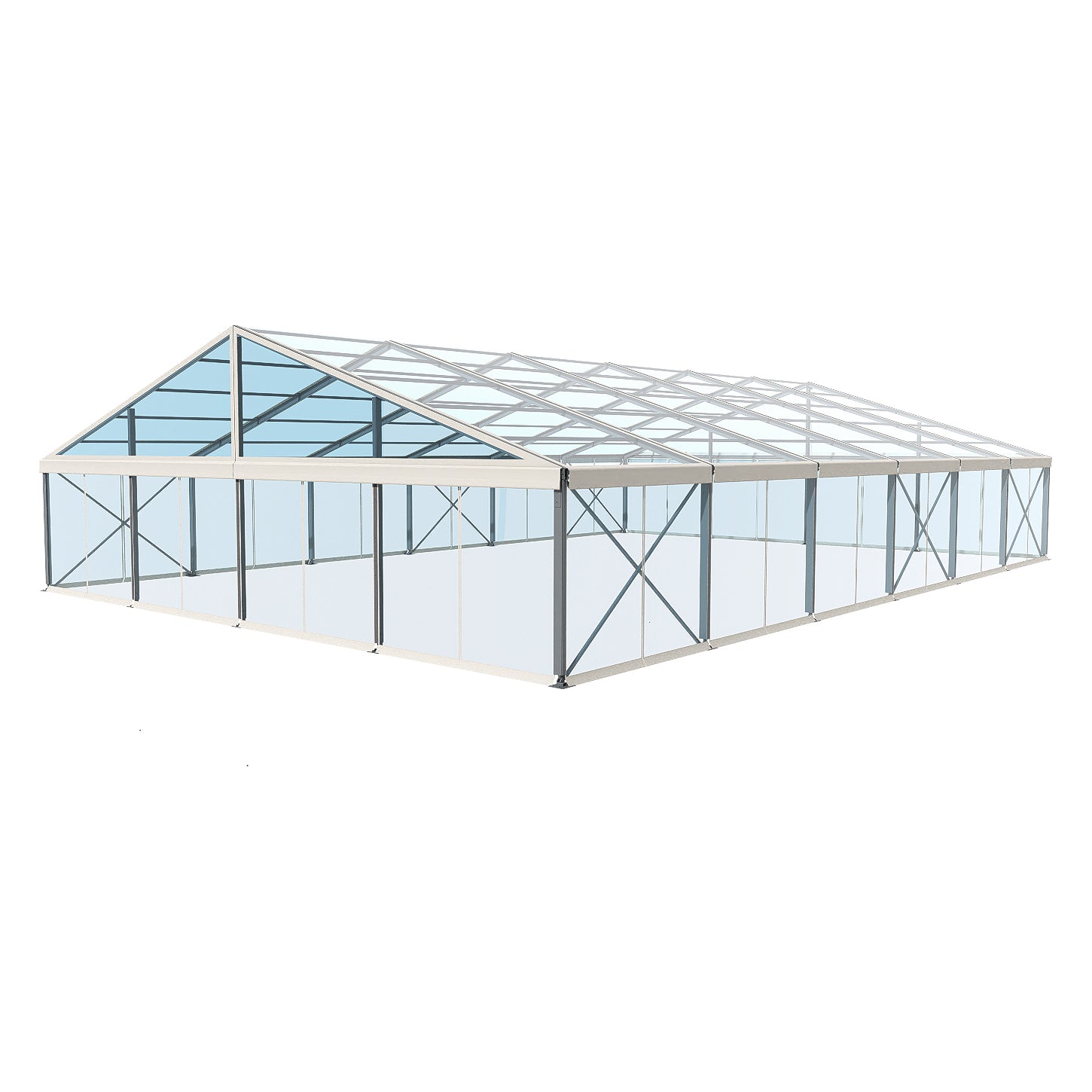

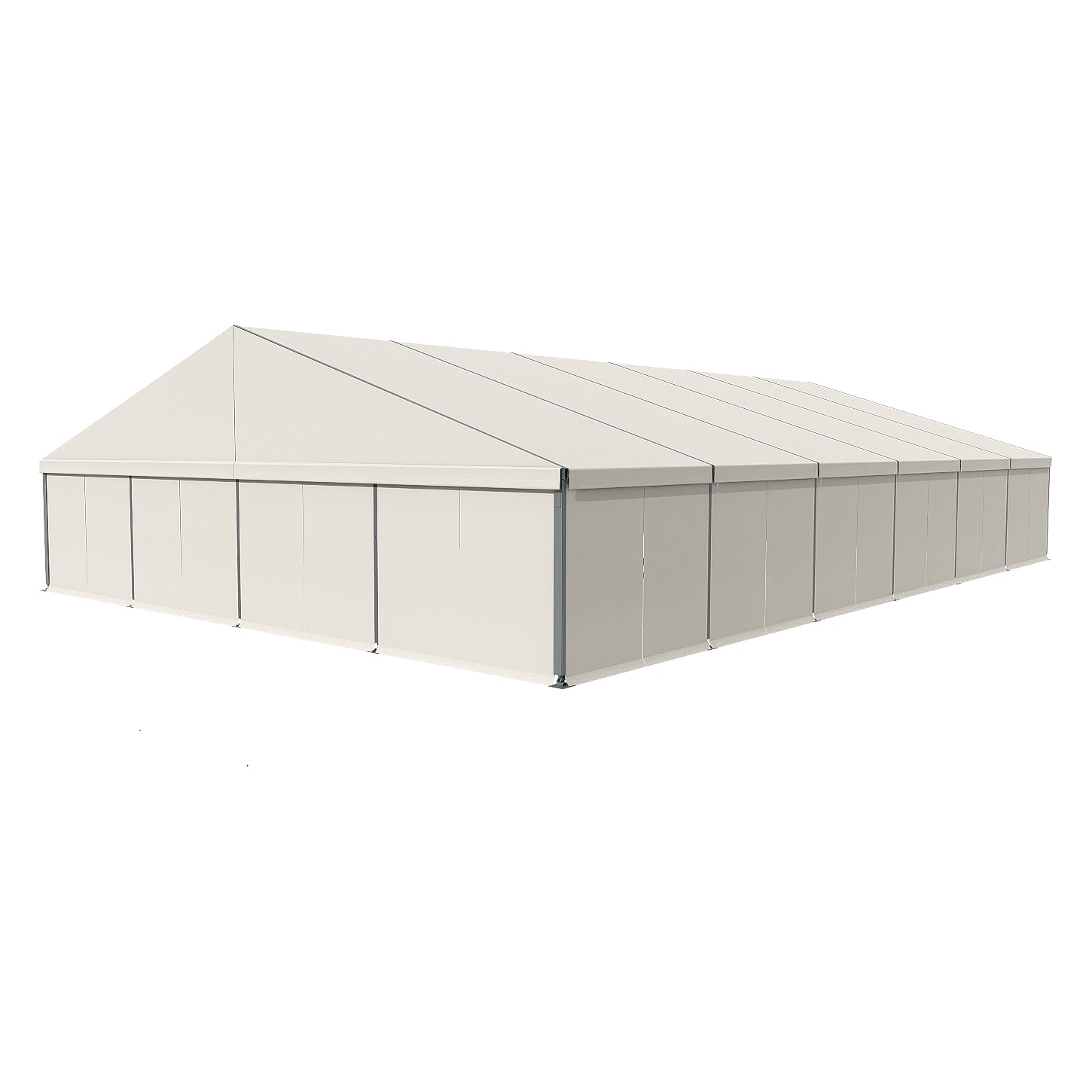

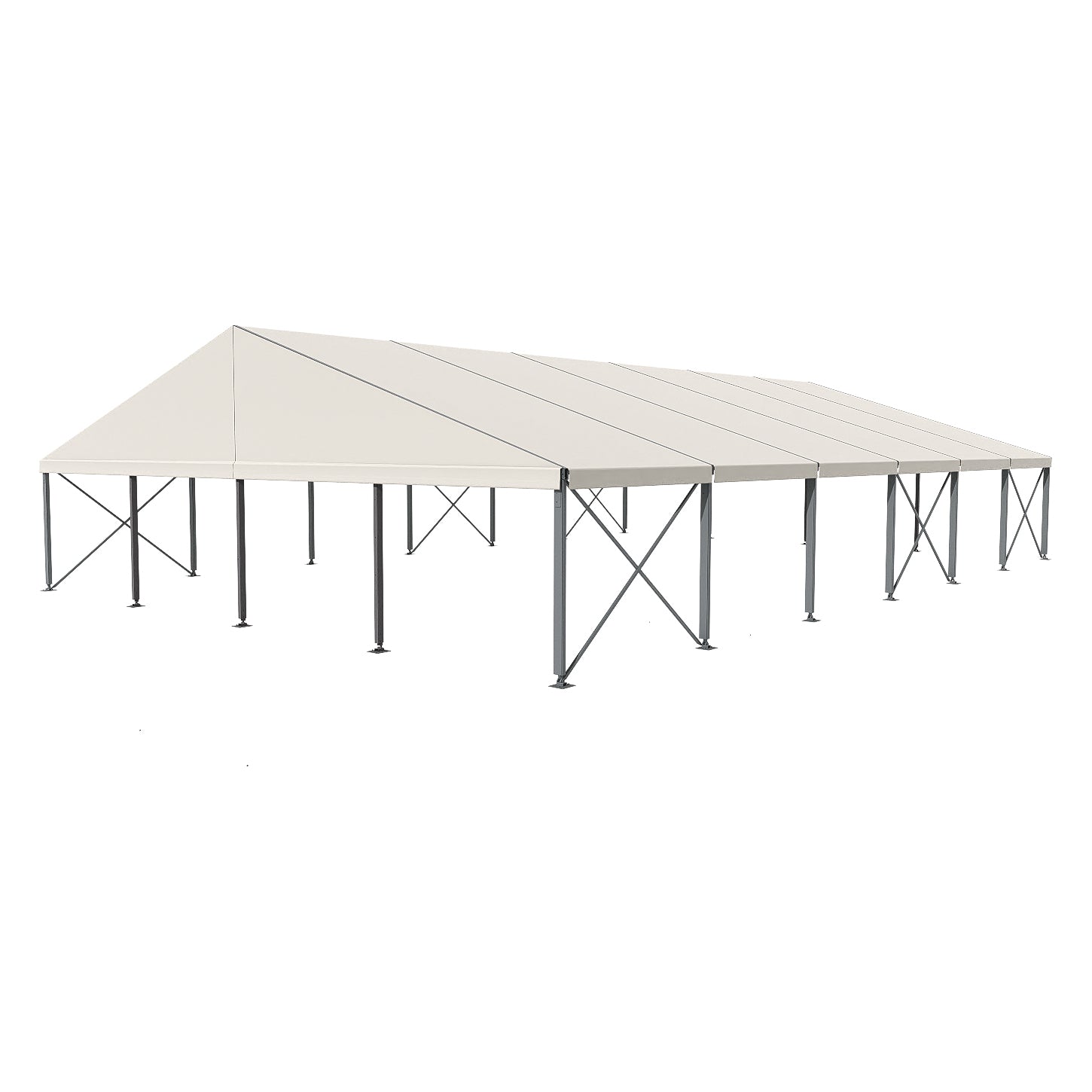

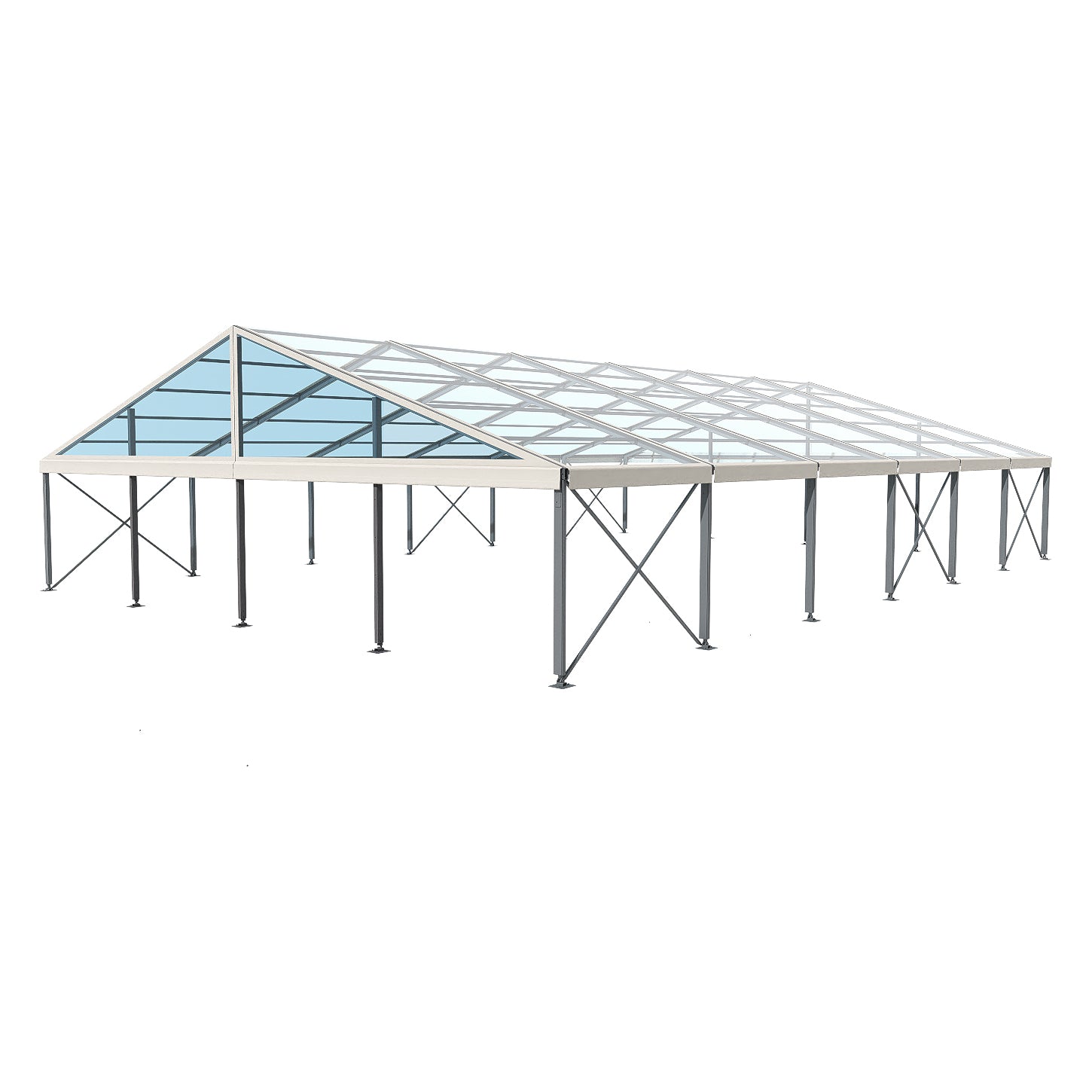

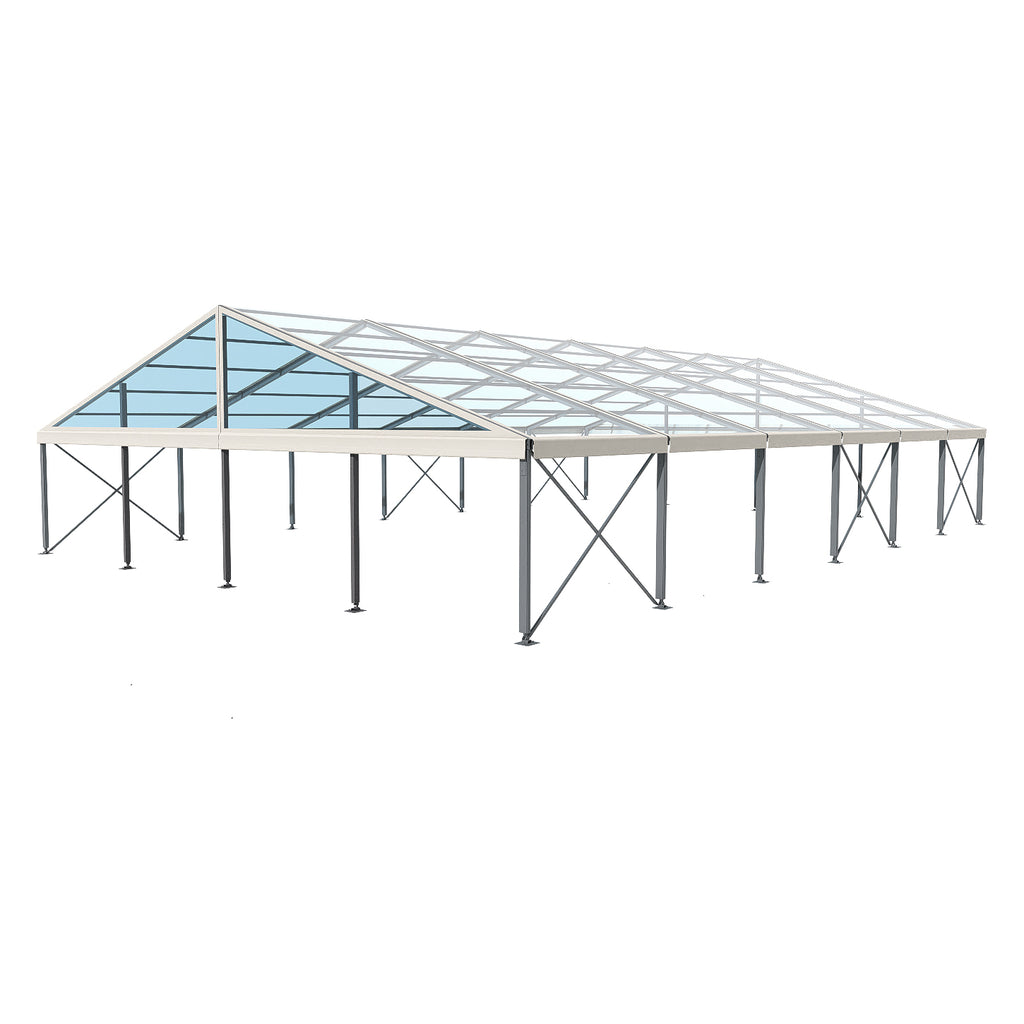

20m x 30m	600	800	640	480	480-600

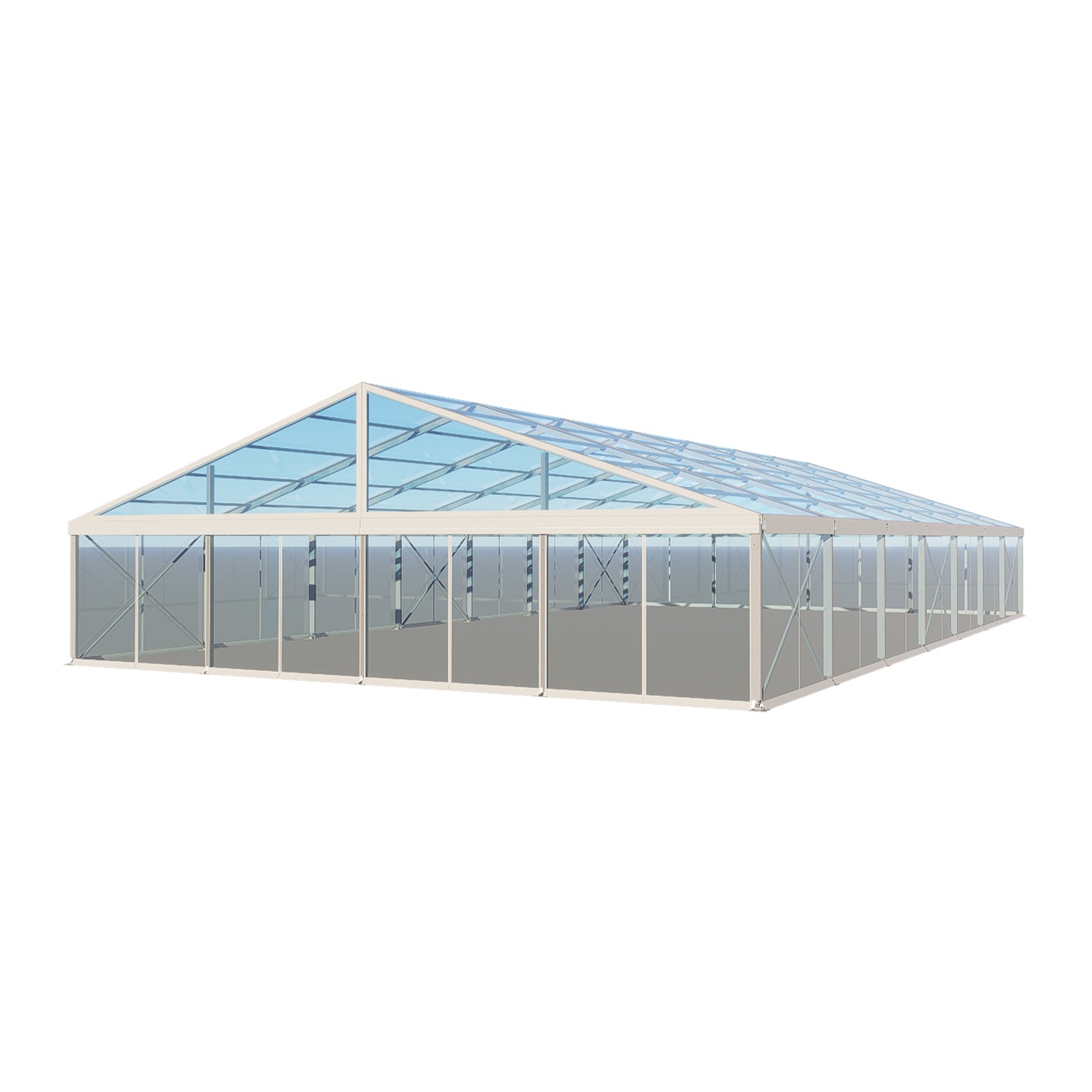

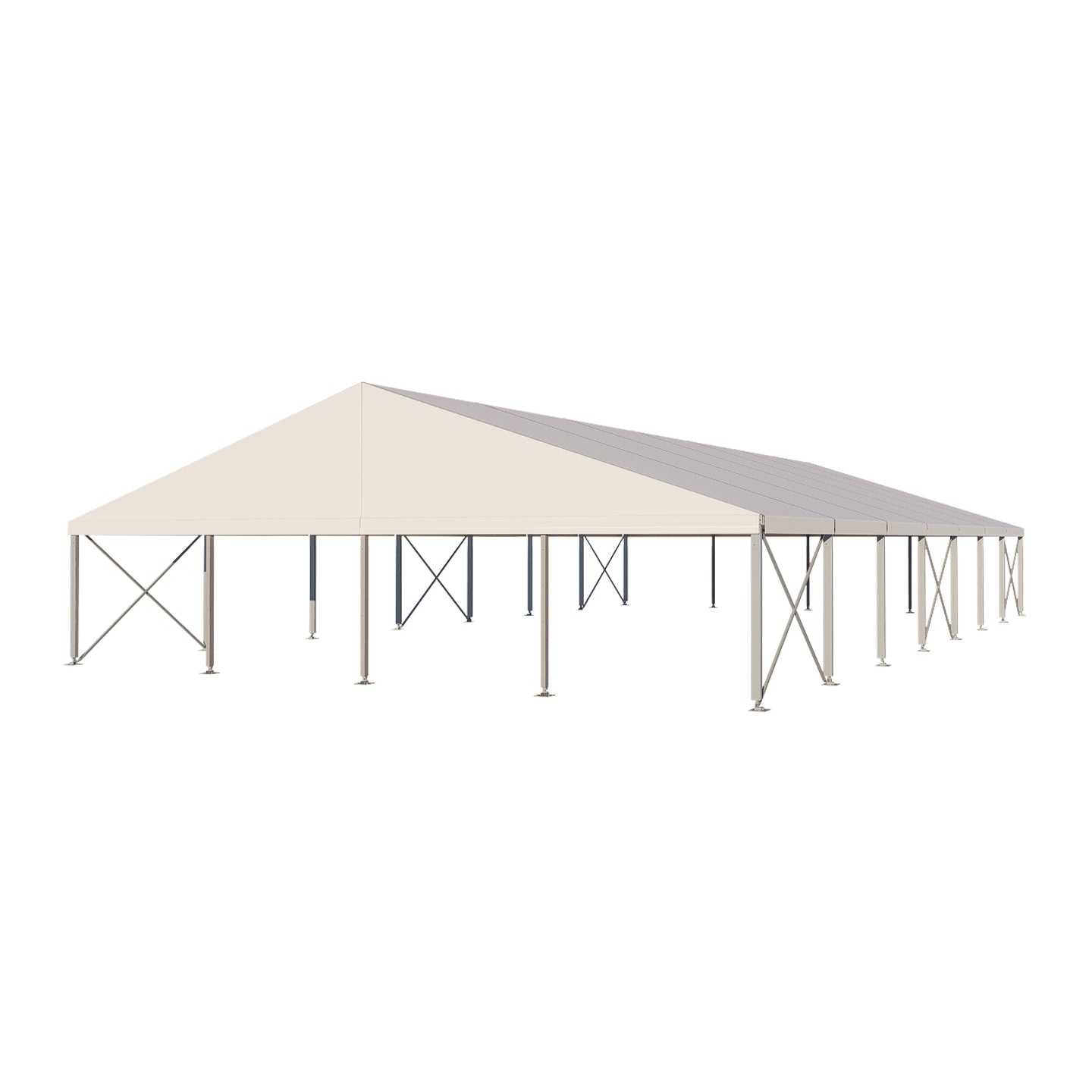

20m x 35m	700	936	760	560	560-700

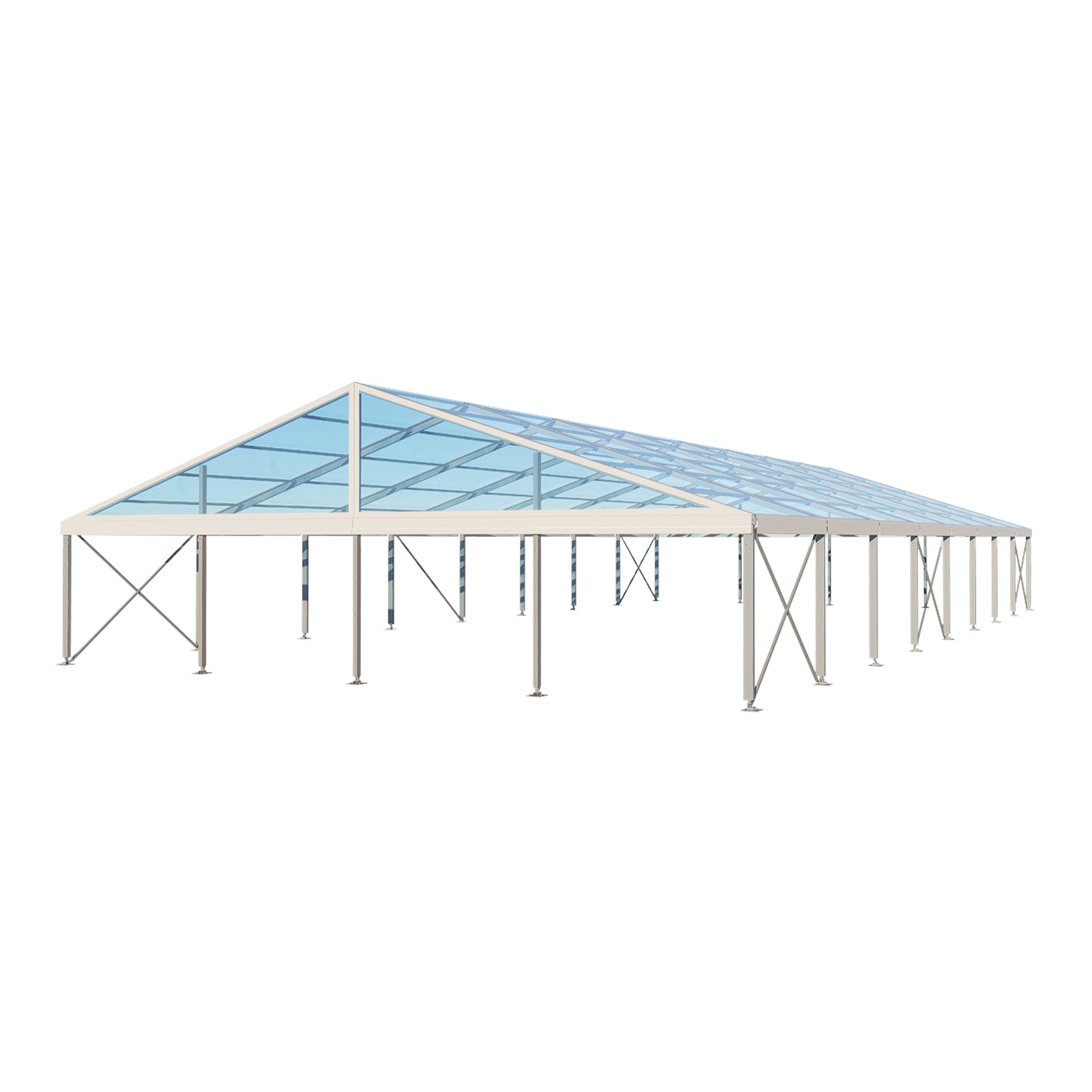

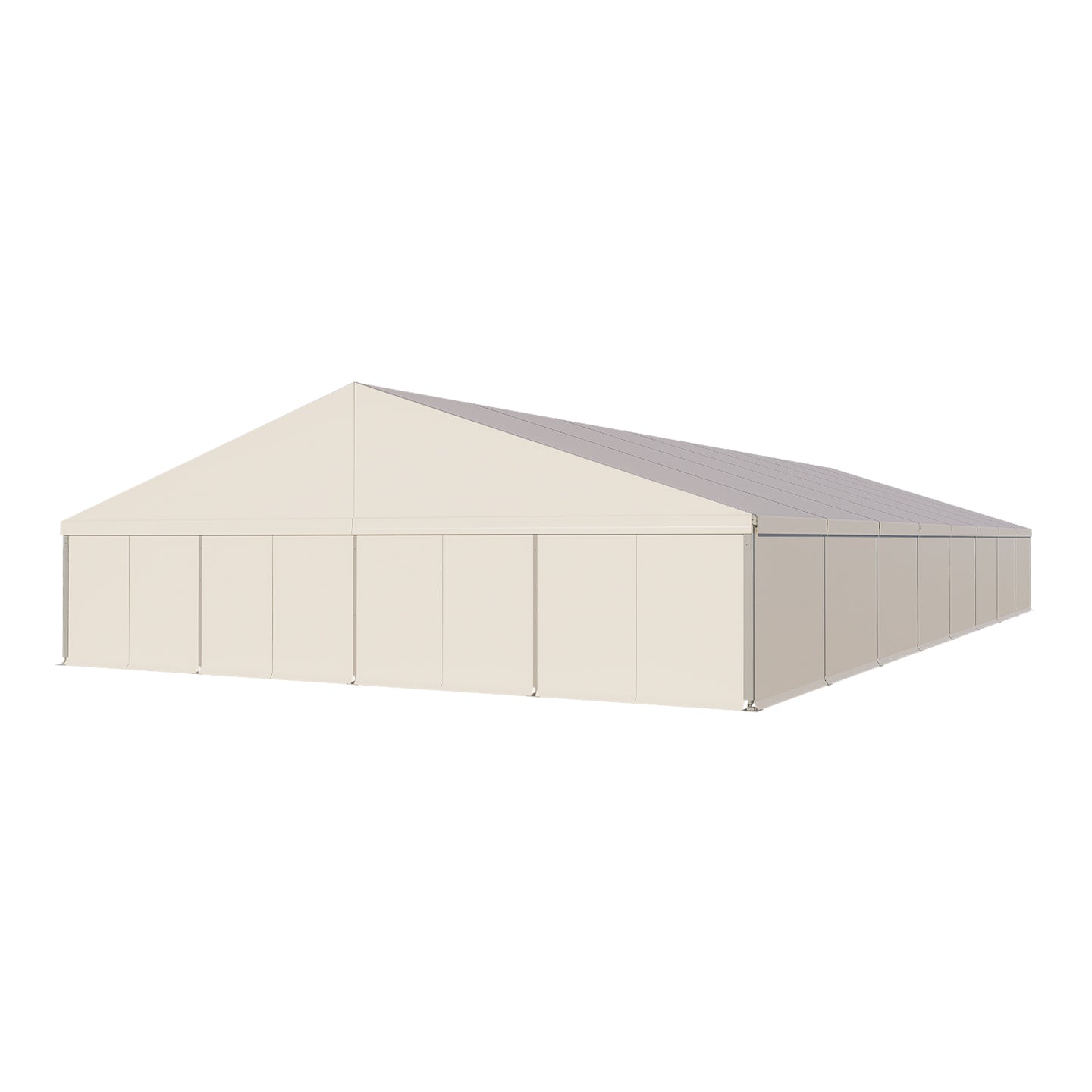

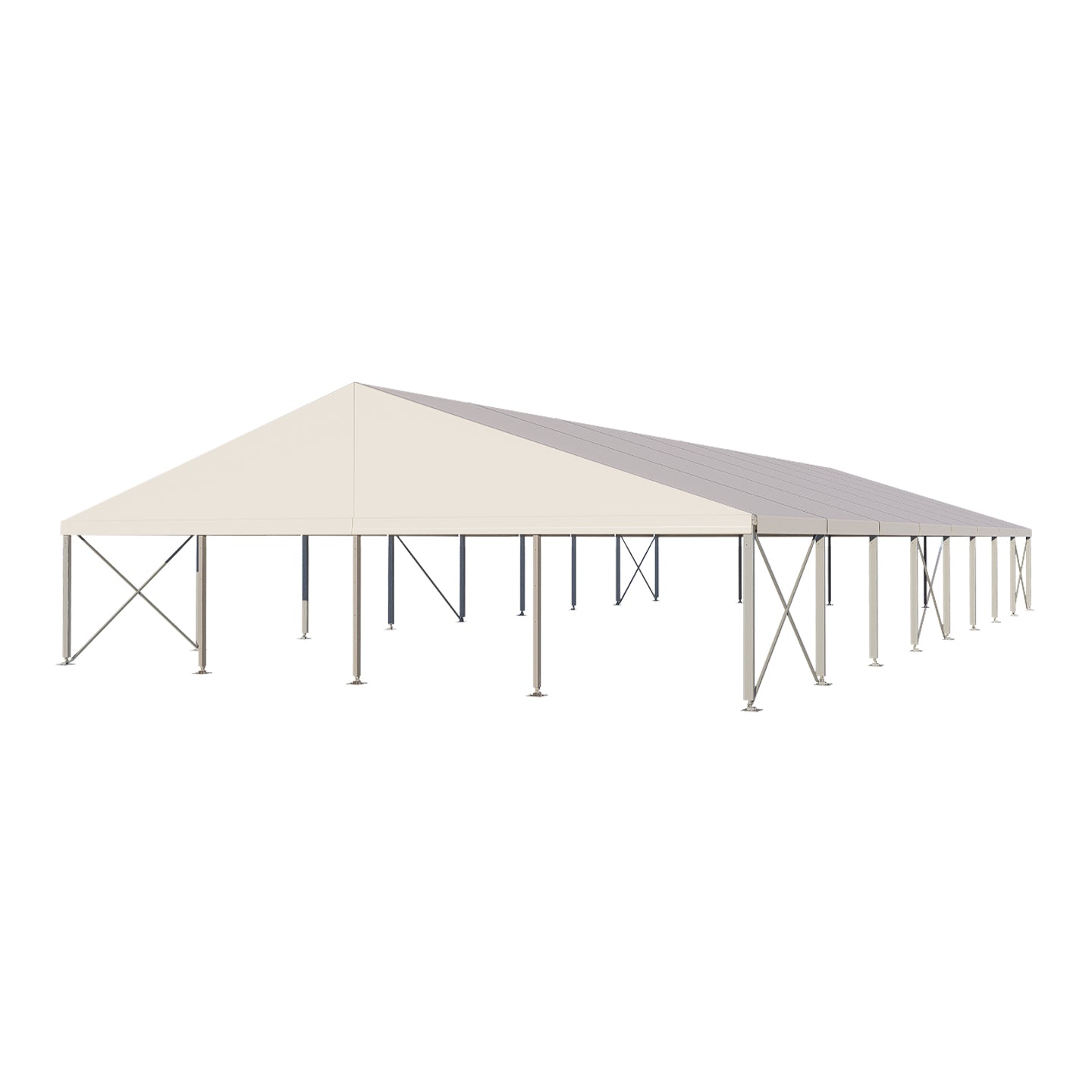

20m x 40m	800	1,064	860	640	640-800

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
