Description

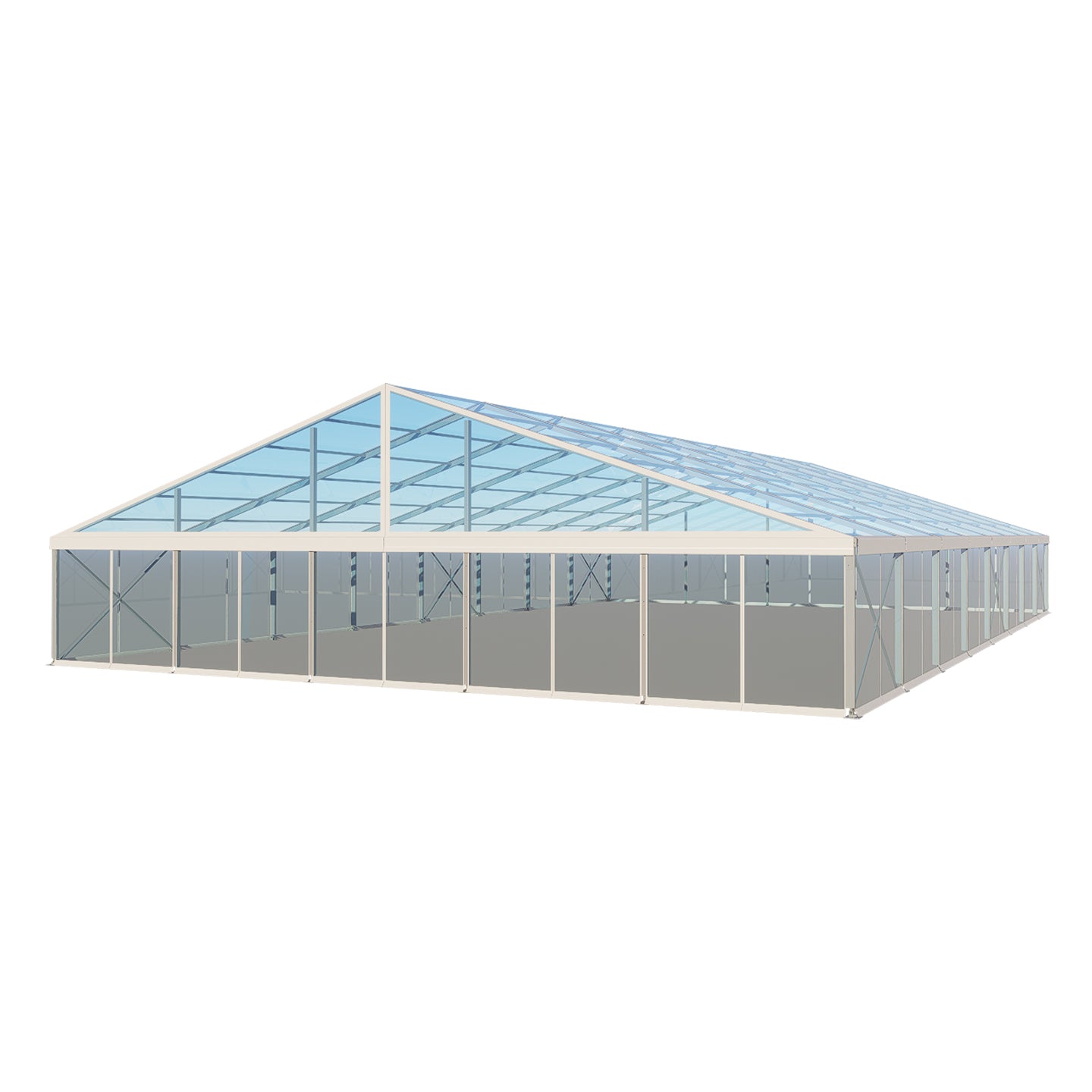

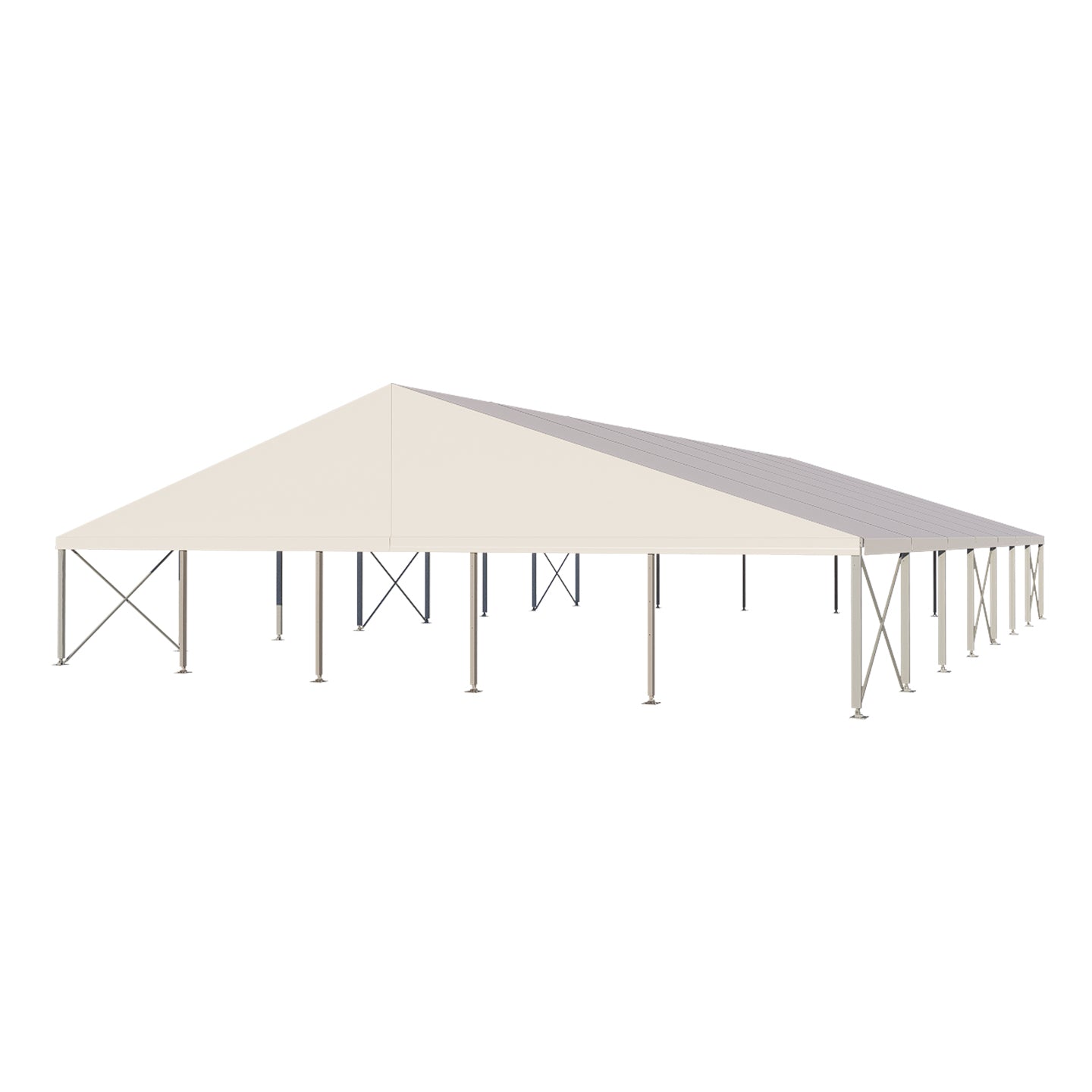

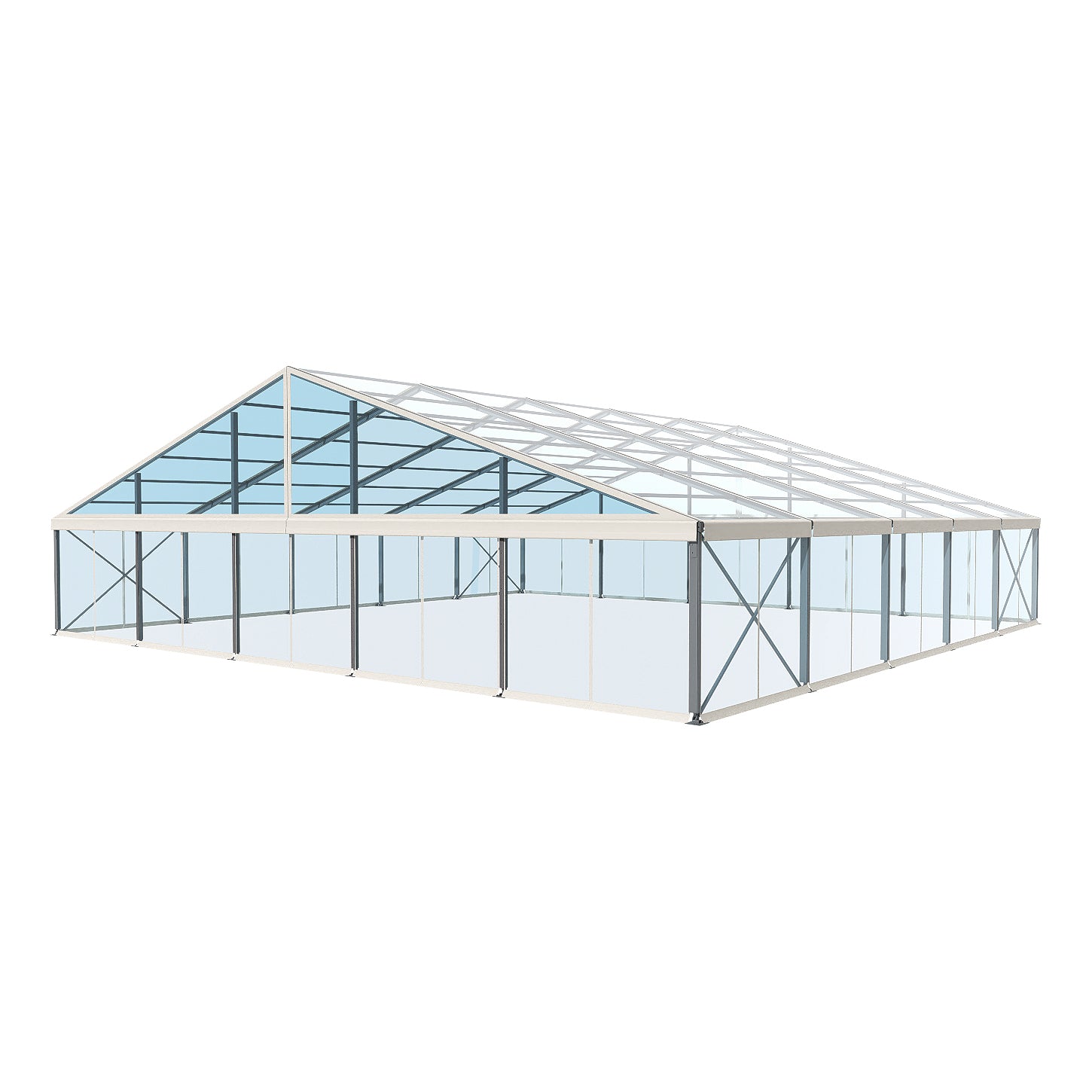

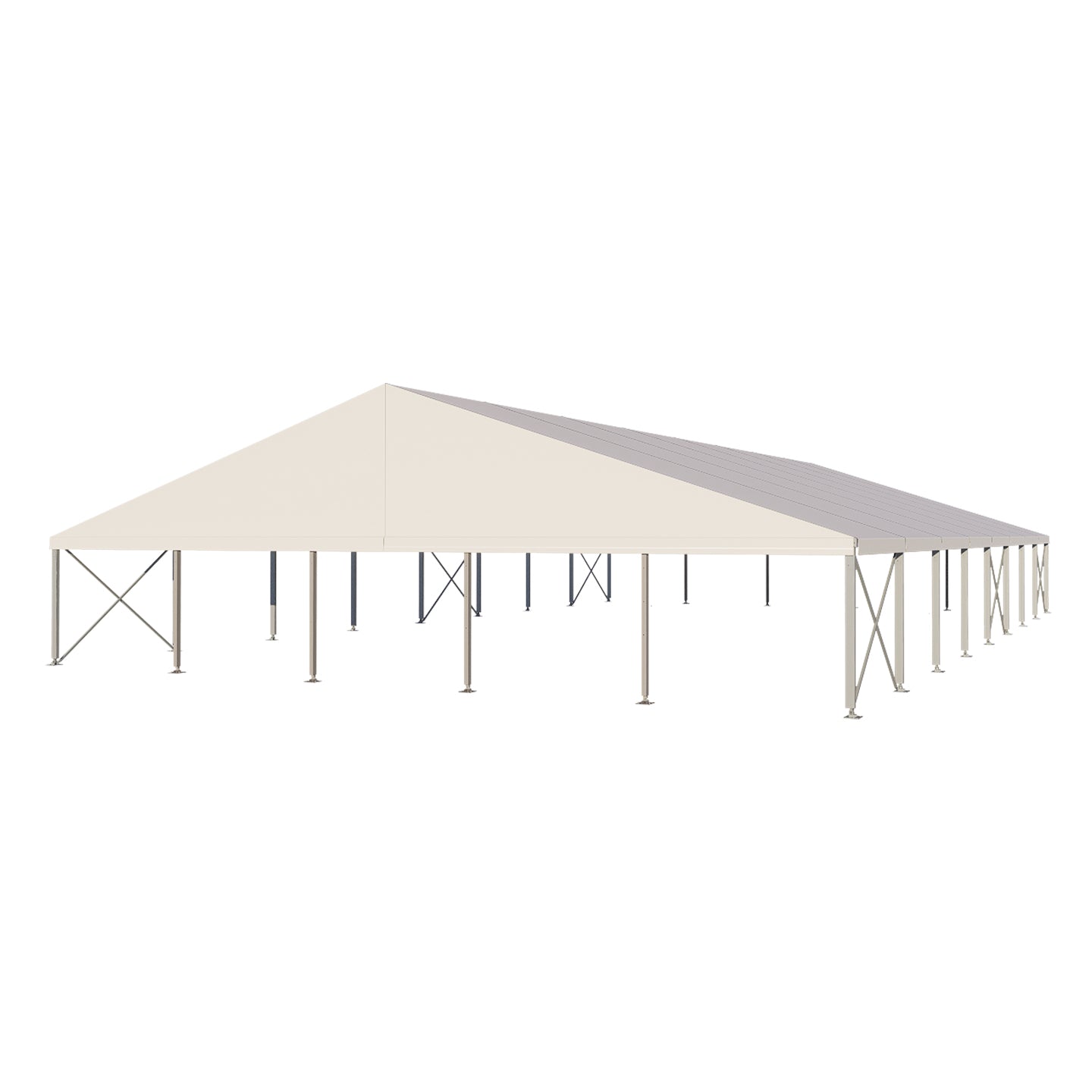

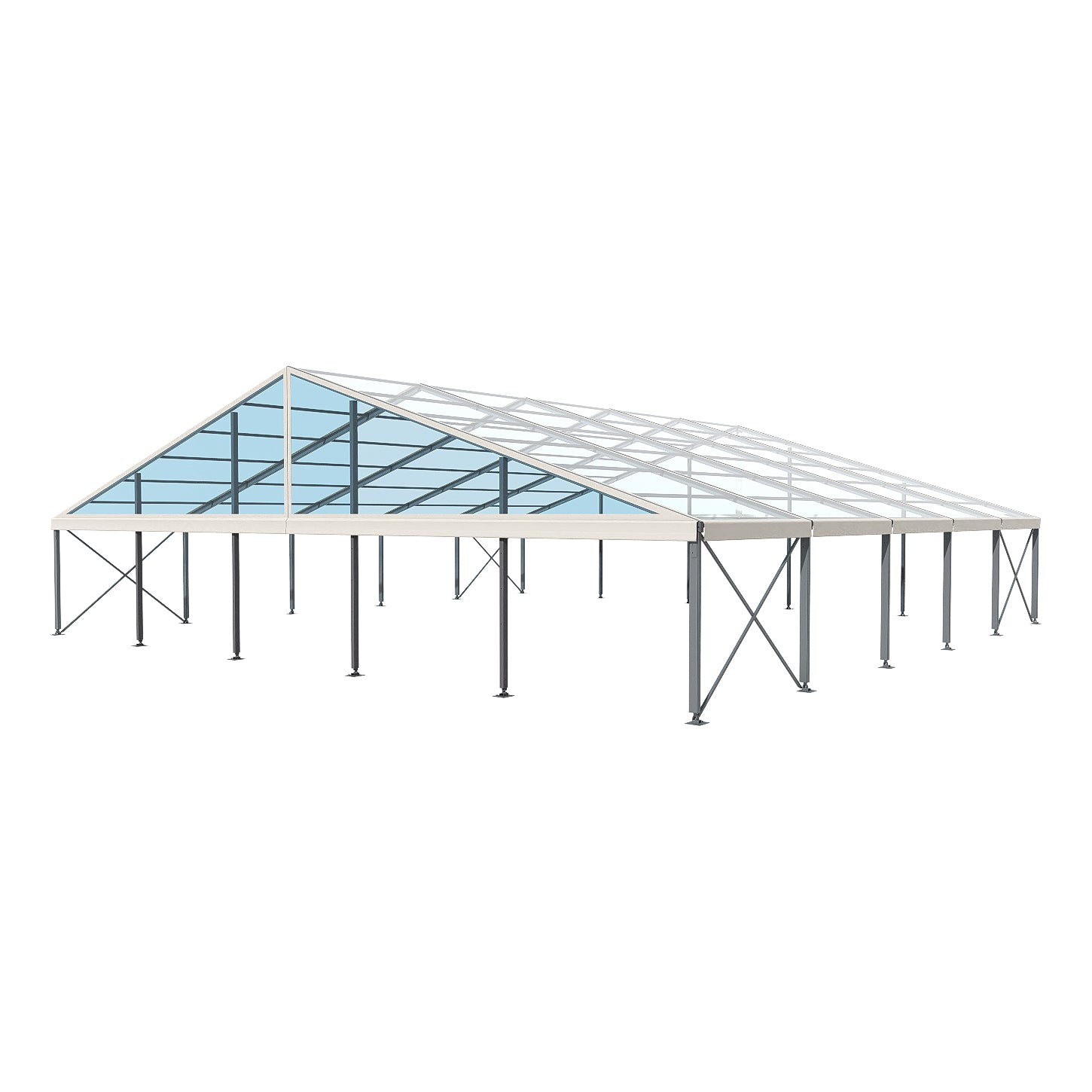

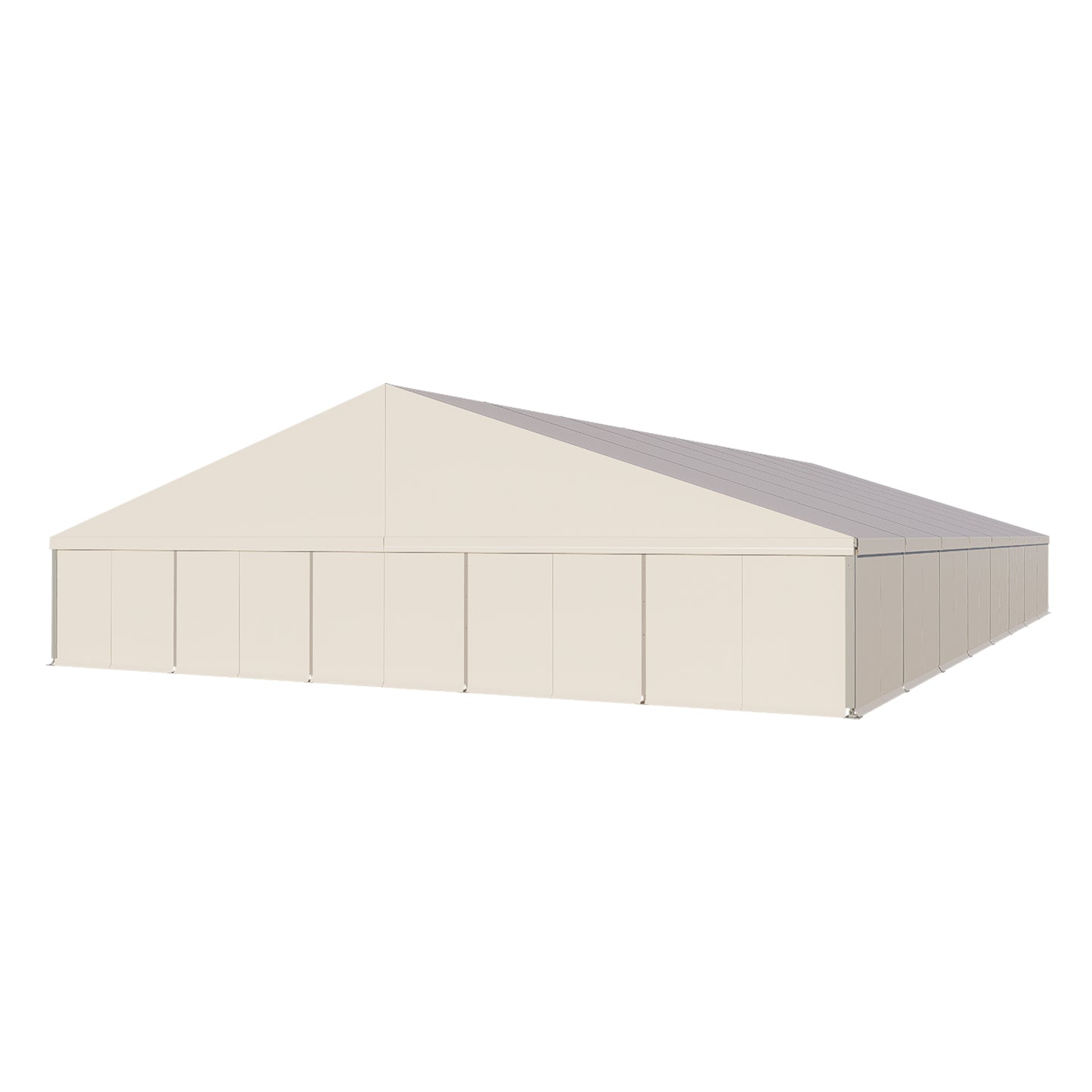

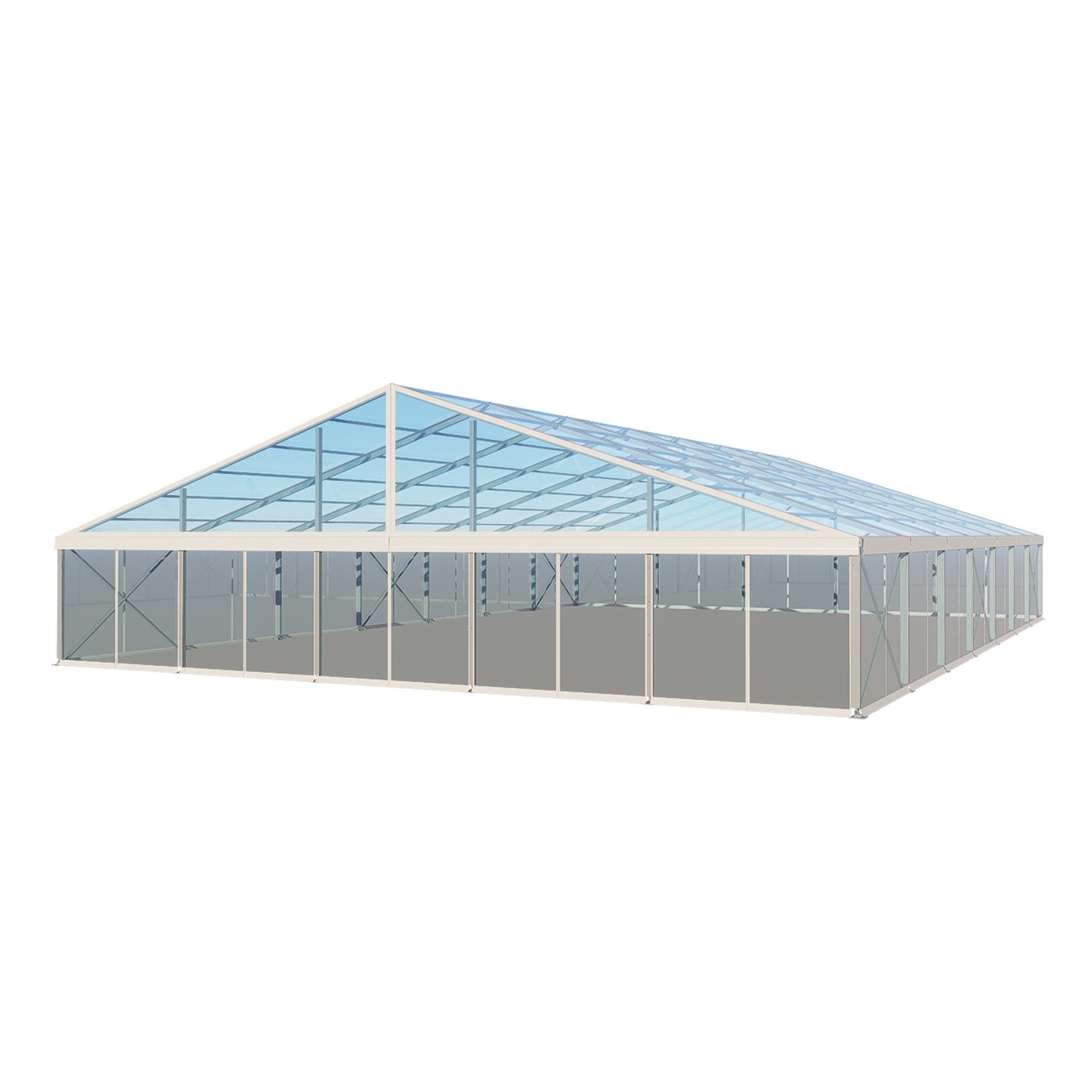

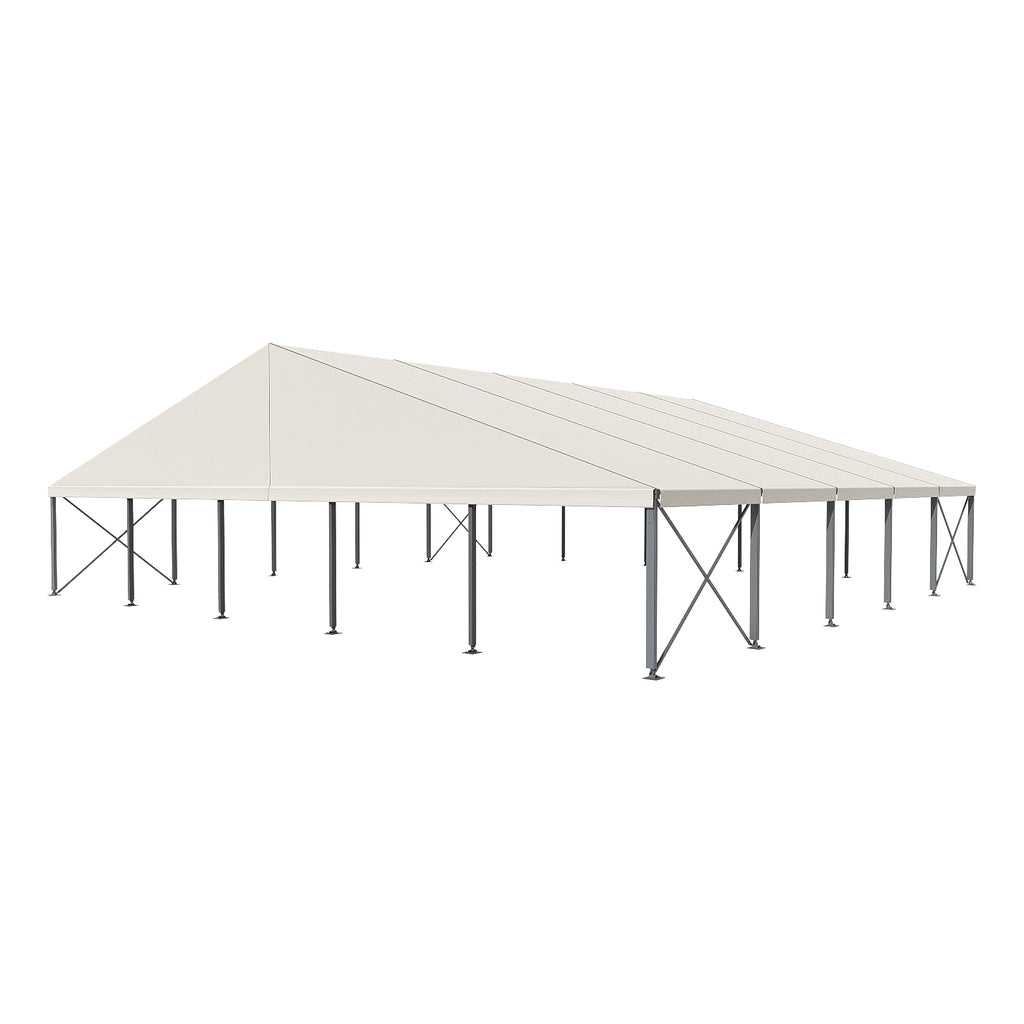

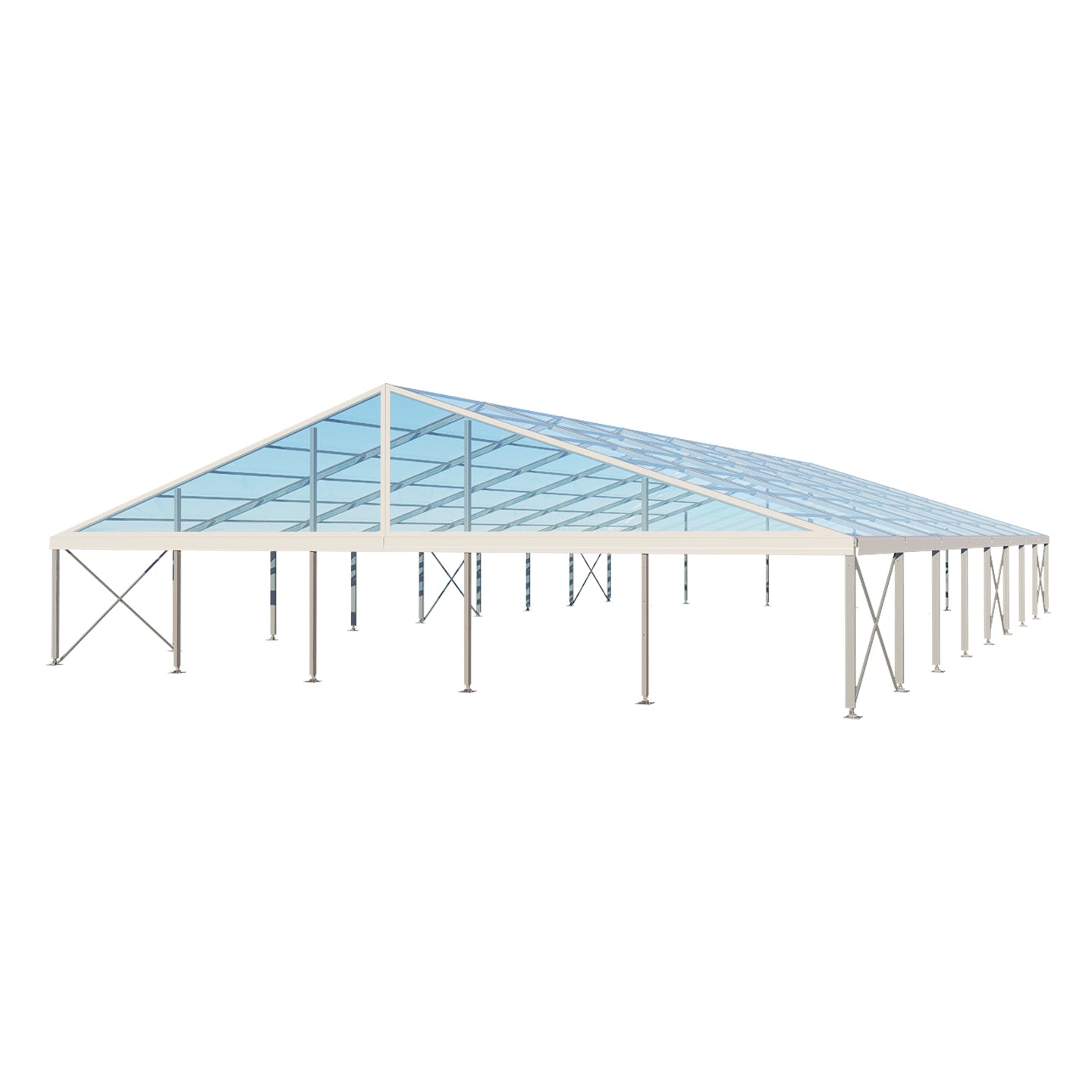

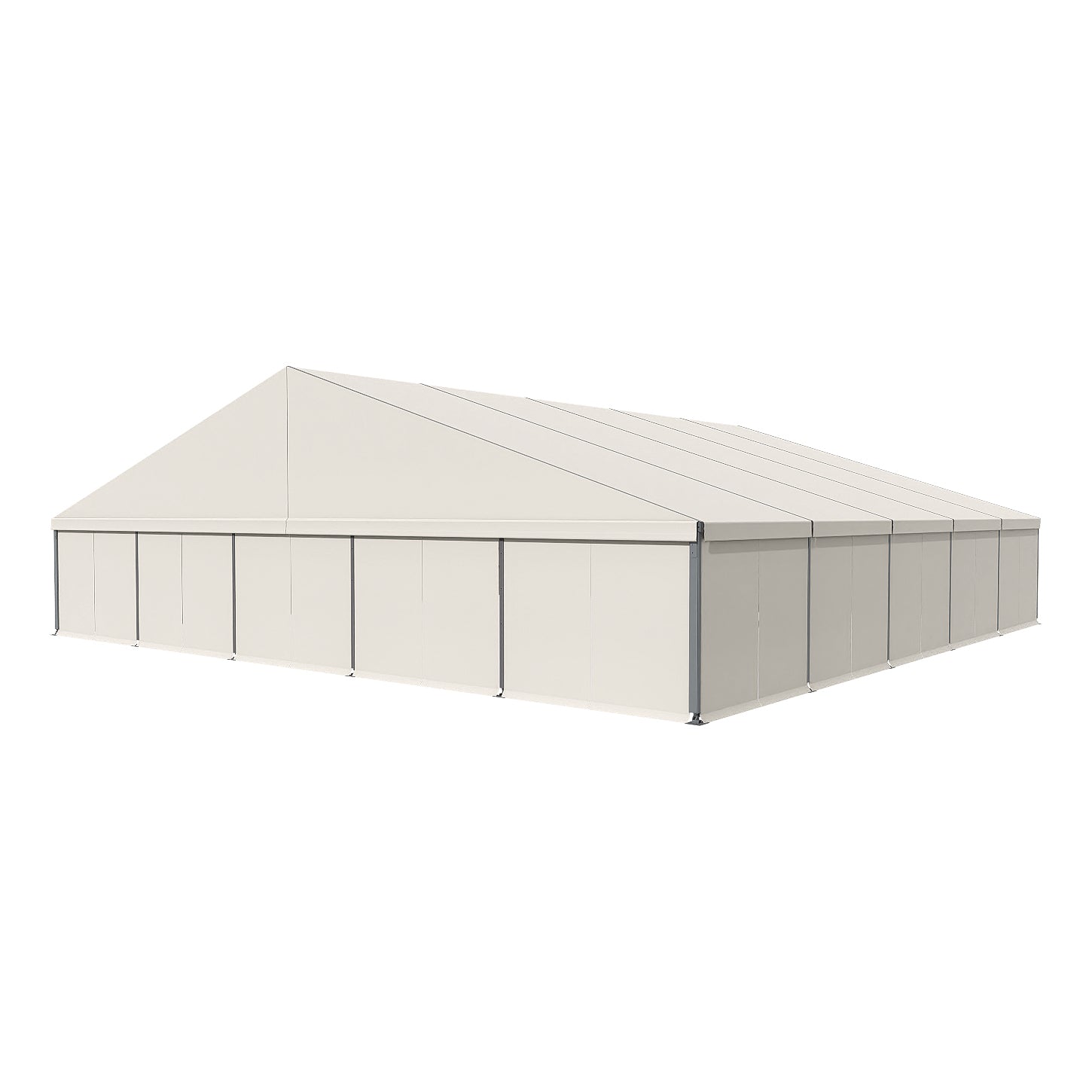

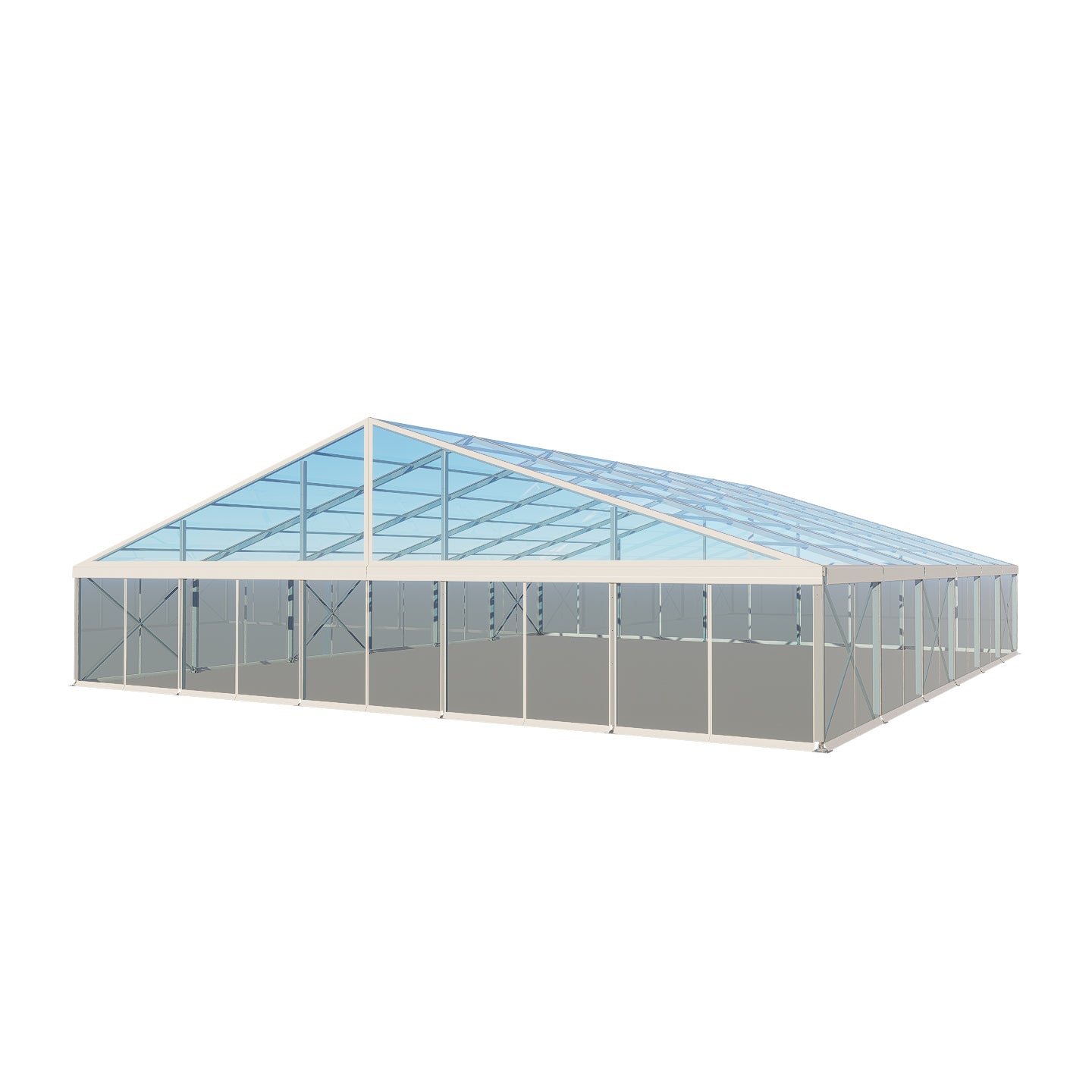

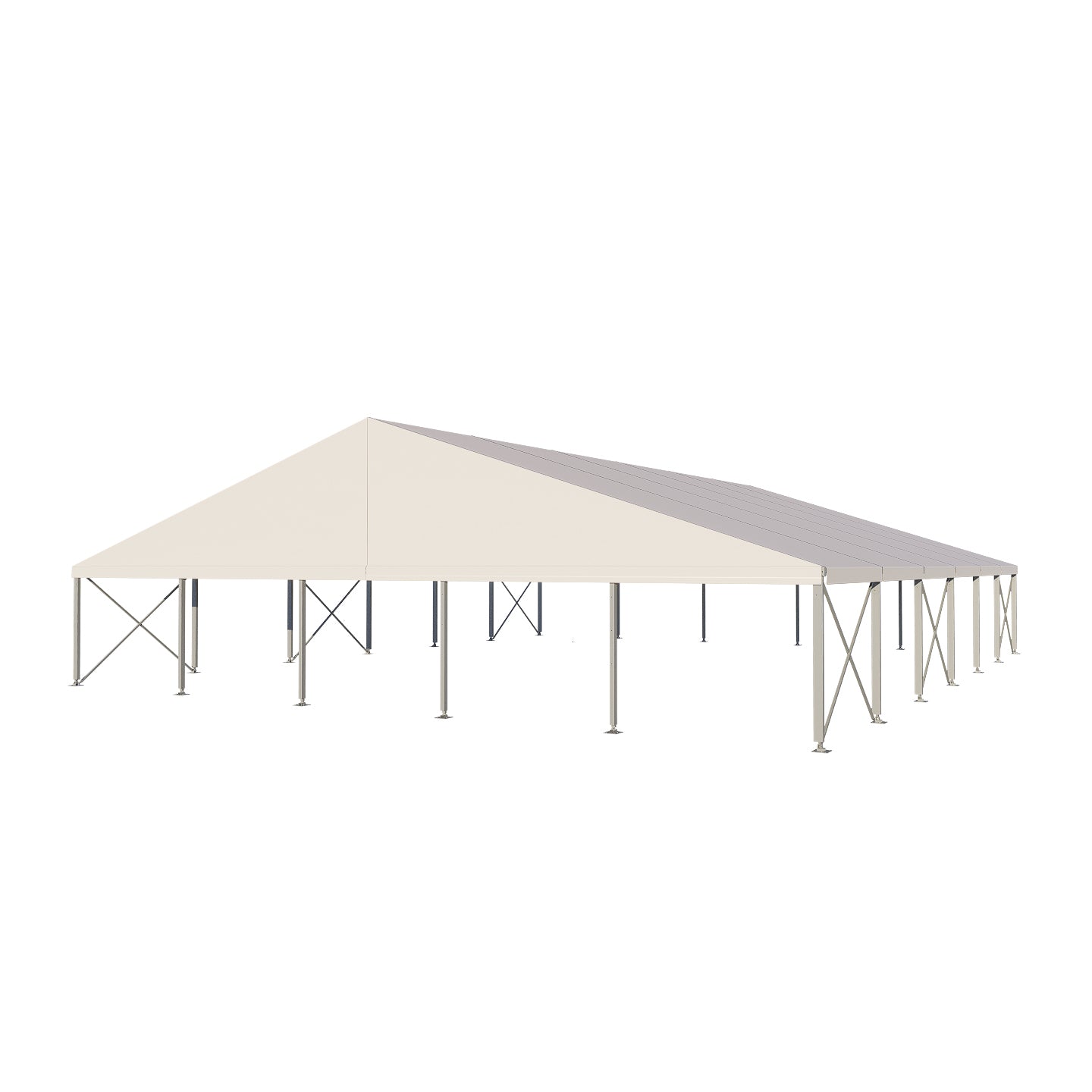

25m Wide Event Crest

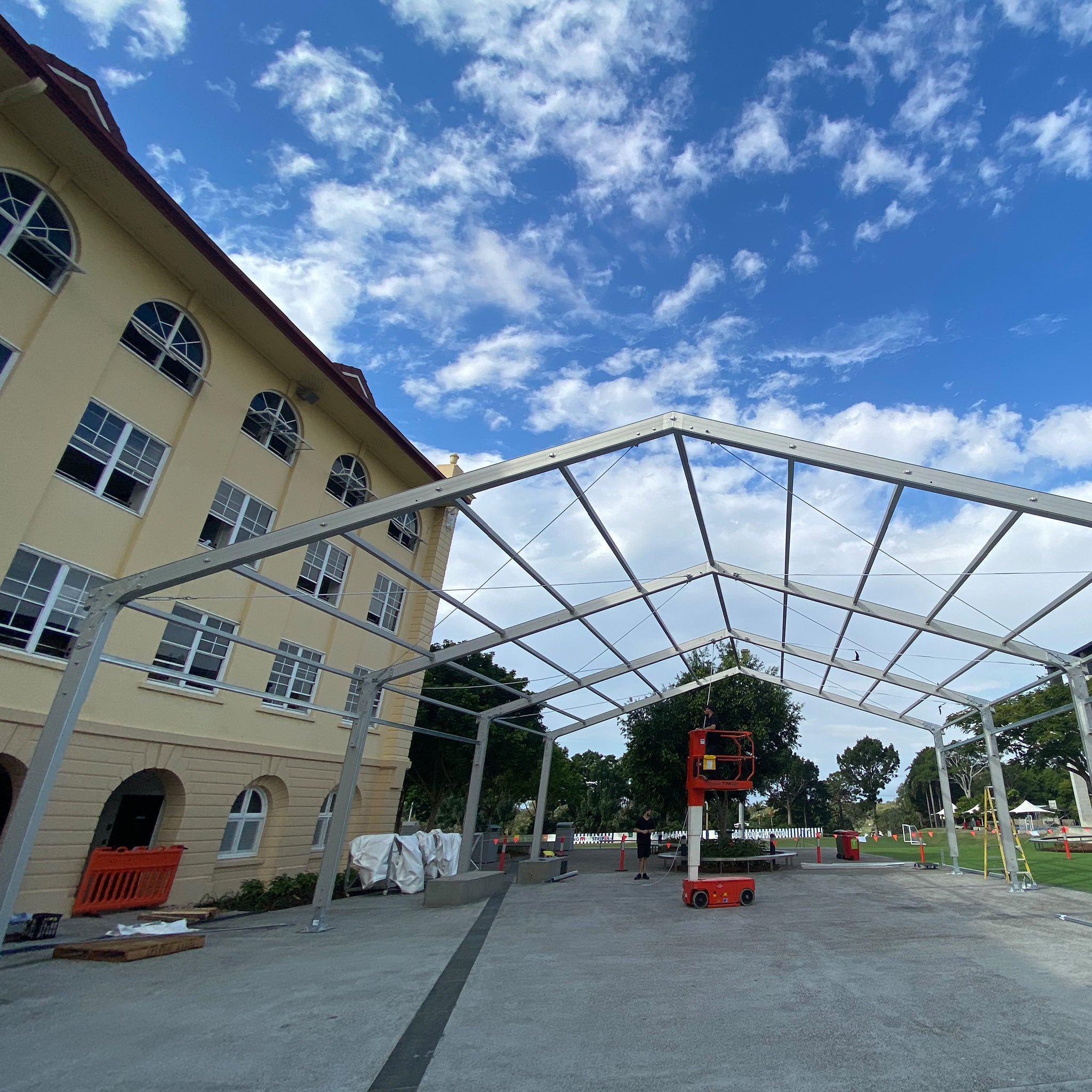

The 25m Wide Clear Span A-Frame – Extreme Crest (EC) Series is the largest marquee structure in our range, engineered for major commercial and industrial applications. With clear spans available up to 60m, this high-performance structure delivers uninterrupted internal space, superior structural stability, and full customisation options. Designed for Australia’s demanding conditions, it’s ideal for large-scale events, warehouses, exhibitions, and long-term installations.

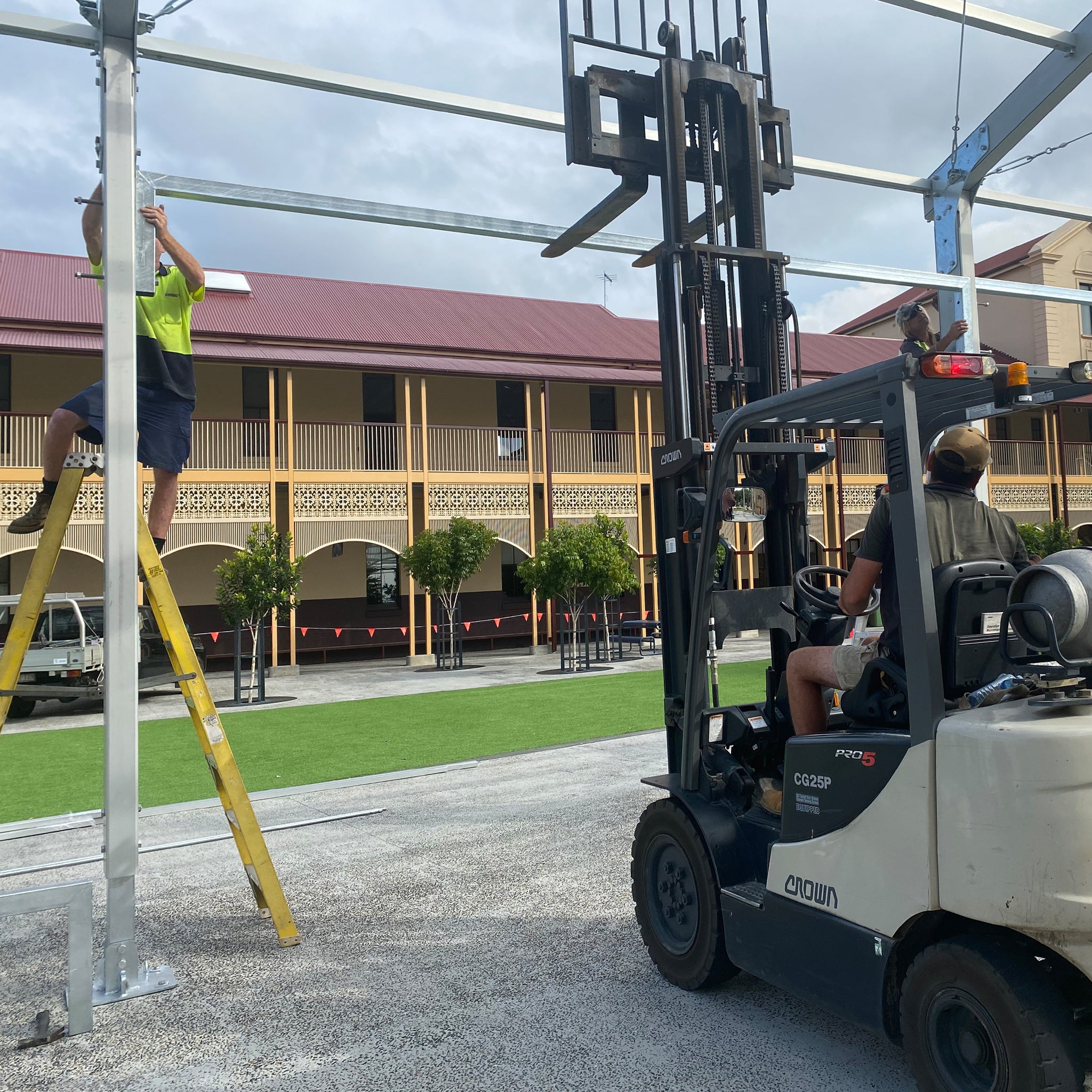

Oversize product. Forklift or HIAB required for delivery.
Contact us for 15m wide.
Specification Sheet > Instructions > Engineer Certificate > Fire Test PVC Certificate >
| Clear Span Width | 25m |
| Eave Height | 4m |
| Ridge Height | 7.95m |
| Roof Pitch | 18º |
| Bay Distance | 5m |
| Roof Fixing | Bar tensioning |
| Frame Profile | 203 x 112 x 4mm (4-channel) |
| Max Allowed Windspeed | 80km/hr 0.5kn/m2 |
| Eave Connectors | Hot-dip galvanized steel insert |
| Frame Material | Hard pressed extruded aluminium 6061/T6 (13HW) |
| Roof Fabric | 850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC |
| Frame Warranty | 10 years |
| Roof Warranty | 5 years white or coloured PVC / 2 years printed or clear PVC |

Capacity Chart
| Size | Area (sqm) |
Cocktail Standing |
Theatre Seating |
Seating Trestle Table |
Seating Round Table |
| 25m x 25m | 625 | 832 | 680 | 500 | 500-600 |
| 25m x 30m | 750 | 1,000 | 800 | 600 | 600-720 |
| 25m x 35m | 875 | 1,168 | 940 | 700 | 700-840 |
| 25m x 40m | 1000 | 1,336 | 1,080 | 800 | 800-960 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.
Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony
Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables
Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.
Add-on accessories available (contact us for pricing)
