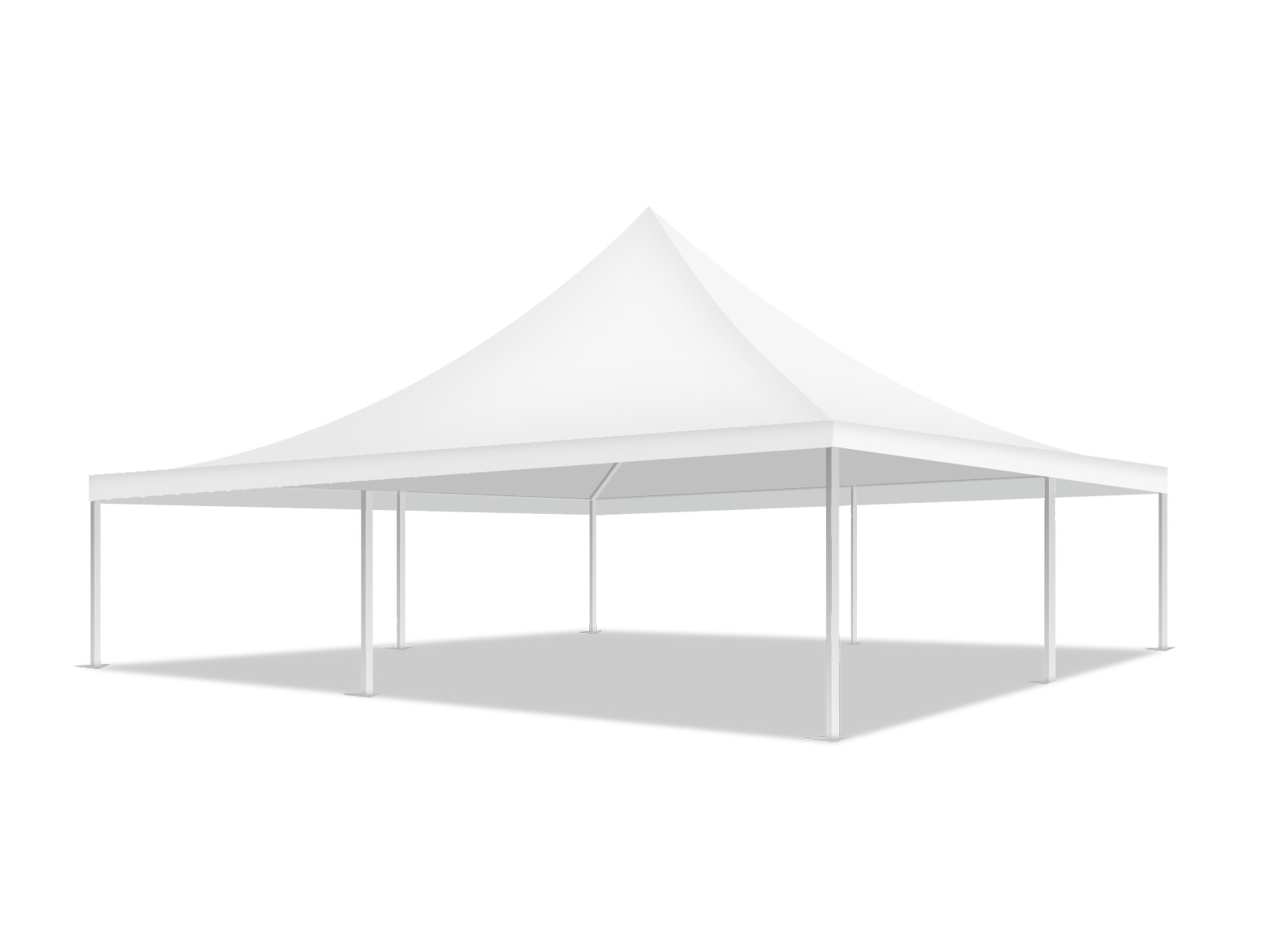

Pinnacle Event Marquees Range

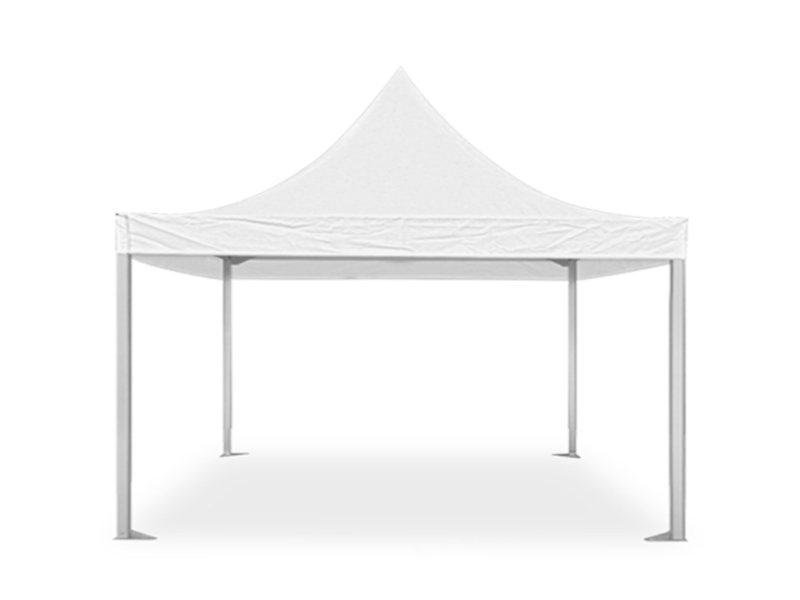

The Pinnacle Range of event tents is a stylish collection of pagoda marquees. These tents will add extra class to any outdoor event while offering much needed shade. The Pinnacle tents are come in 9 sizes ranging from 3m to 10m in the square frames and 15m to 20m in the octagonal frames. The frames are made from sturdy Aluminium with roofs made from 100% PVC fabric. Each tent can be upgraded with a range of accessories designed to improve the style and functionality of the tent. Upgrades include walls and windows walls for the square based and glass walls and doors, PVC window walls, and solid flooring systems for the hexagonal based range.
Pinnacle Marquees
-

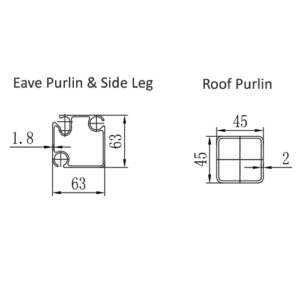

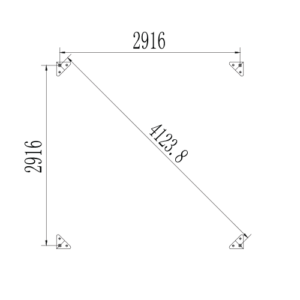

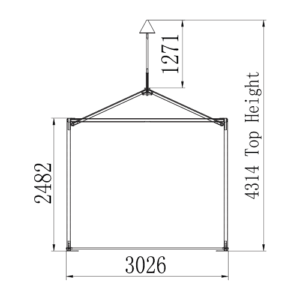

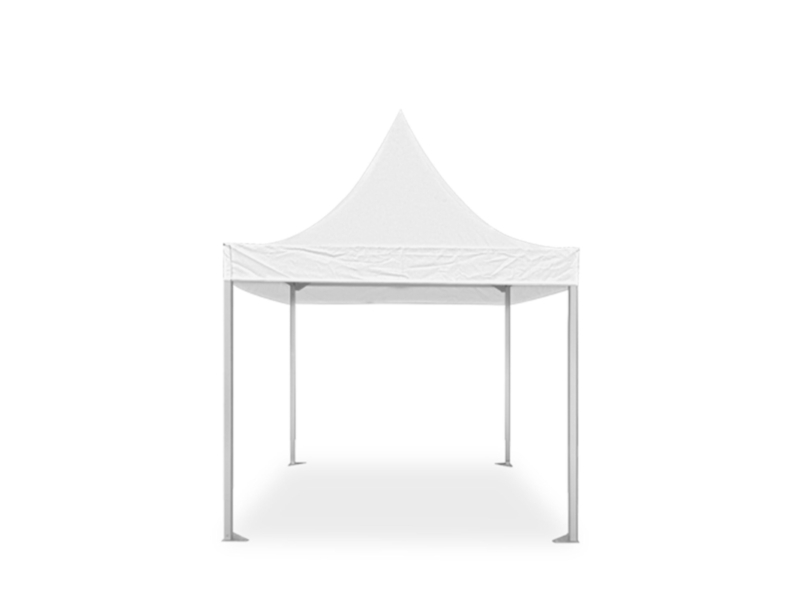

3m x 3m Square Base Pinnacle Marquee
The 3x3m Pinnacle Range is perfect for a professional level commercial purpose. Covering 9 square metres, these structures offer a tall pagoda style roof in heavy duty 100% PVC. The Pinnacle Range is upgradable to include cassette style flooring, glass walls and a variety of other elegant trimmings.
Frame Specifications
Size: 3mx3m
Eave: Height 2.5m
Ridge: Height 4.2m
Clearance: 2m
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium
6061/T6 (13HW)
Cover Material: PVC 750-900g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750-900g/m2
PVC Standard Colours

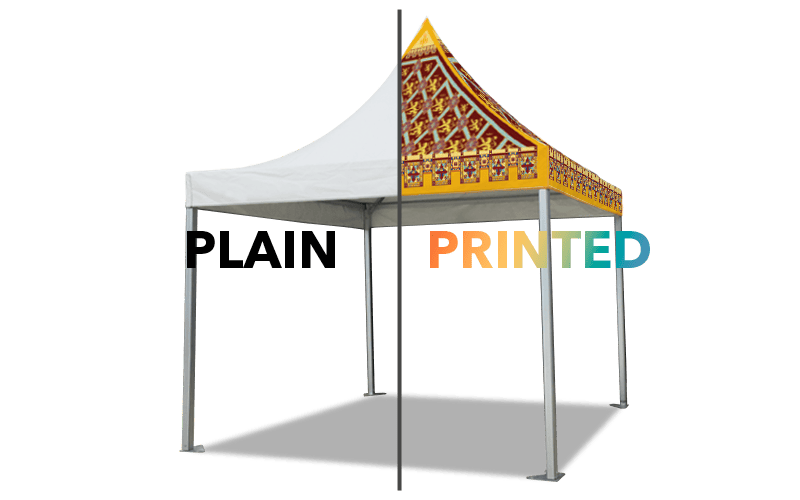

Printing
Full Roof Digital Printing availableDownload PDF
Setup Instructions
Engineer Certification
Pinnacle Specification Sheet
-

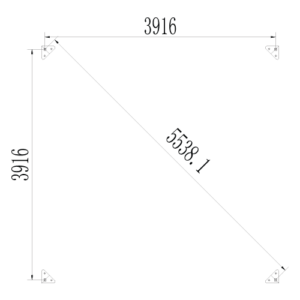

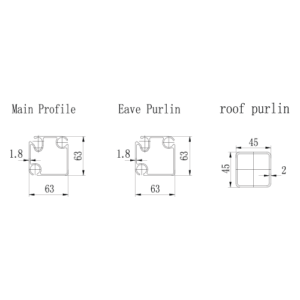

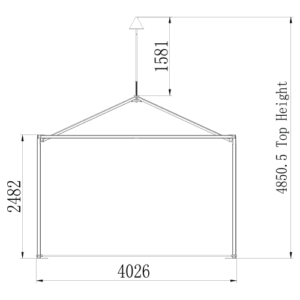

4m x 4m Square Base Pinnacle Marquee
The 4x4m Pinnacle Range is ideal for events that require an extra level of sophistication. Covering 16 square metres, these structures offer a tall pagoda style roof in heavy duty 100% PVC. The Pinnacle Range is upgradable to include cassette style flooring, glass walls and a variety of other elegant trimmings.
Frame Specifications
Size: 4mx4m
Eave: Height 2.5m
Ridge: Height 4.8m
Clearance: 2m
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium
6061/T6 (13HW)
Cover Material: PVC 750-900g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750-900g/m2
PVC Standard Colours
Printing
Full Roof Digital Printing availableDownload PDF
Setup Instructions
Engineer Certification
Pavilion Specification Sheet
-

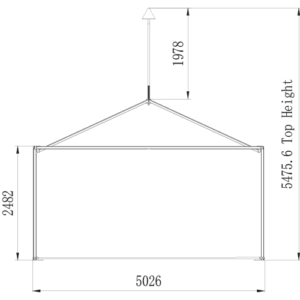

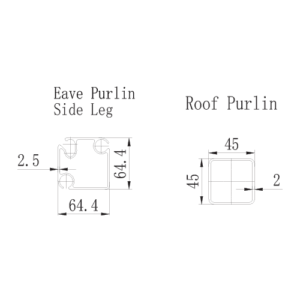

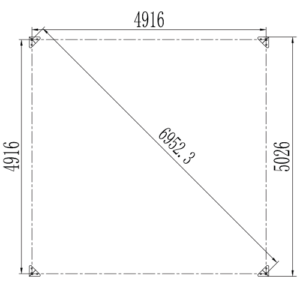

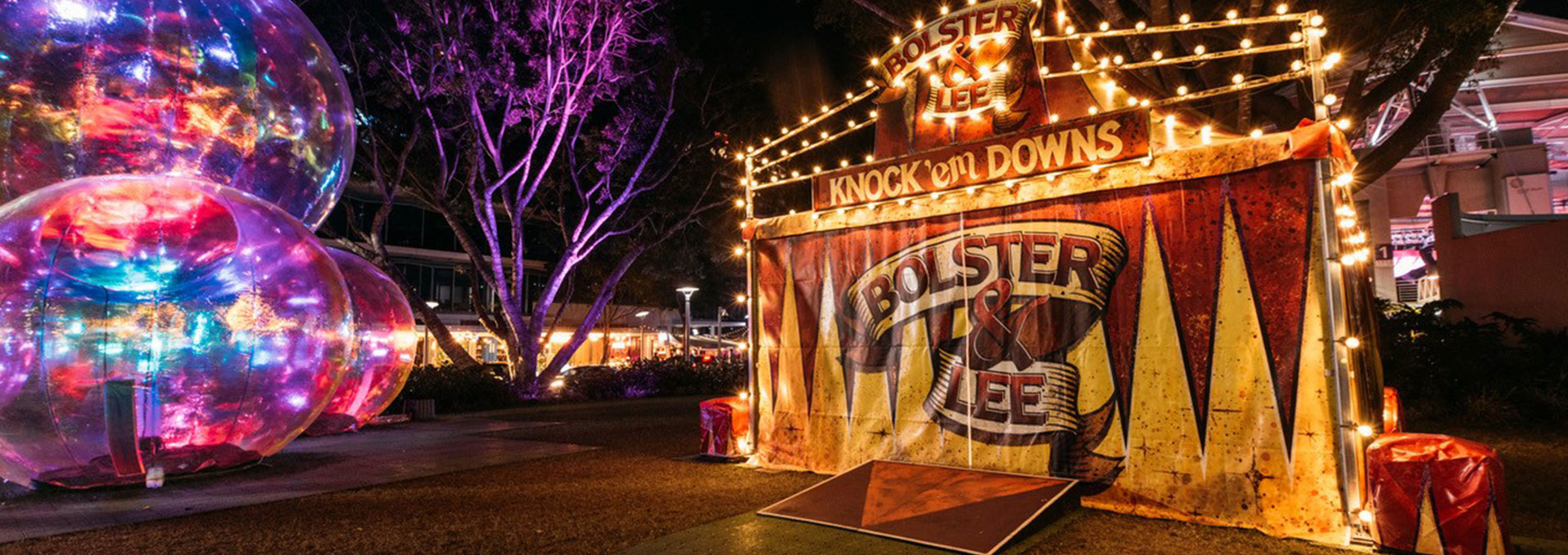

5m x 5m Square Base Pinnacle Marquee
The 5x5m Pinnacle Range is a clear span premium quality event tent. Covering 25 square metres, these structures boast a tall pagoda style roof in heavy duty 100% PVC. The Pinnacle Range is upgradable to include cassette style flooring, glass walls and a variety of other elegant trimmings.
Frame Specifications
Size: 5mx5m
Eave: Height 2.5m
Ridge: Height 5.2m
Clearance: 2m
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium
6061/T6 (13HW)
Cover Material: PVC 750-900g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750-900g/m2
PVC Standard Colours
Printing
Full Roof Digital Printing availableDownload PDF
Setup Instructions
Engineer Certification
Pavilion Specification Sheet
-

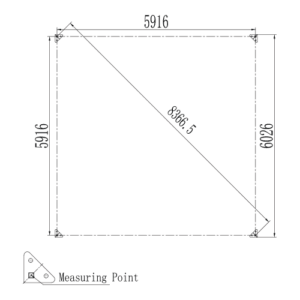

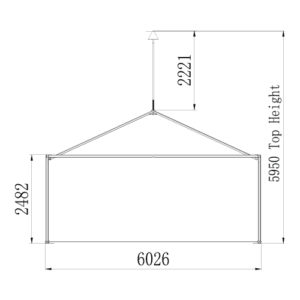

6m x 6m Square Base Pinnacle Marquee
The 6x6m Pinnacle Range is a superior clear span event tent covering a huge 36 square metres. These structures boast a tall pagoda style roof in heavy duty 100% PVC. The Pinnacle Range is upgradable to include cassette style flooring, glass walls and a variety of other elegant trimmings.
Frame Specifications
Size: 6mx6m
Eave: Height 2.5m
Ridge: Height 5.8m
Clearance: 2m
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium
6061/T6 (13HW)
Cover Material: PVC 750-900g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750-900g/m2
PVC Standard Colours
Printing
Full Roof Digital Printing availableDownload PDF
Setup Instructions
Engineer Certification
Pavilion Specification Sheet
-

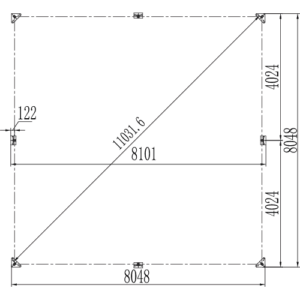

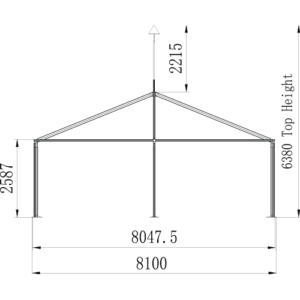

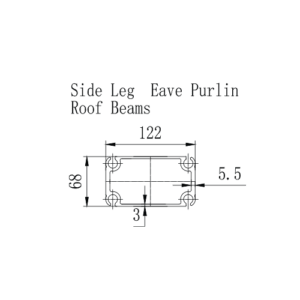

8m x 8m Square Base Pinnacle Marquee
The 8x8m Pinnacle Range is a premium grade commercial event tent covering a massive 64 square metres. These structures boast a tall pagoda style roof in heavy duty 100% PVC. The Pinnacle Range is upgradable to include cassette style flooring, glass walls and a variety of other elegant trimmings.
Frame Specifications
Size: 8mx8m
Eave: Height 2.6m
Ridge: Height 5.4m
Clearance: 2m
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium
6061/T6 (13HW)
Cover Material: PVC 750-900g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750-900g/m2
PVC Standard Colours
Printing
Full Roof Digital Printing availableDownload PDF
Setup Instructions
Engineer Certification
Pavilion Specification Sheet
-

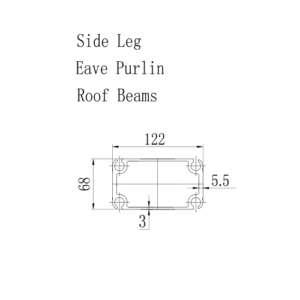

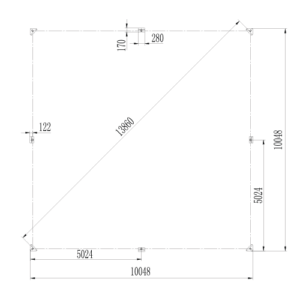

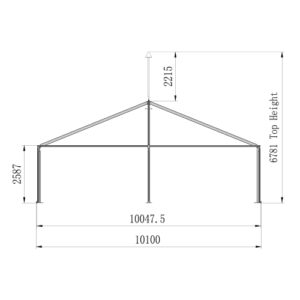

10m x 10m Square Base Pinnacle Marquee
The 10x10m Pinnacle Range is the biggest square premium commercial event in our pinnacle range. This tent covers a massive 100 square metres without the need for any support within the perimeter of the structure. These structures boast a tall pagoda style roof in heavy duty 100% PVC. The Pinnacle Range is upgradable to include cassette style flooring, glass walls and a variety of other elegant trimmings.
Frame Specifications
Size: 10mx10m
Eave: Height 2.6m
Ridge: Height 6.4m
Clearance: 2m
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium
6061/T6 (13HW)
Cover Material: PVC 750-900g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750-900g/m2
PVC Standard Colours
Printing
Full Roof Digital Printing availableDownload PDF
Setup Instructions
Engineer Certification
Pavilion Specification Sheet
-
15m Octagonal Pinnacle Marquee
The 15m Octagonal Pinnacle offers a flexible and innovative alternative for your next event. This marquee can be upgraded to include cassette style flooring, glass walls and a variety of other well-designed extras.
Frame Specifications
Diameter: 15m
Eave: Height 3m
Ridge: Height 5.4m
Framework Material: Hard pressed extruded aluminium
6061/T6
Cover Material: PVC 750g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750g/m2
PVC Standard Colours
-
18m Octagonal Pinnacle Marquee
The 18m Octagonal Pinnacle is our mid-range Octagonal Marquee. Select our well-designed add-ons to customise your marquee to suit your needs.
Frame Specifications
Diameter: 18m
Eave: Height 3m
Ridge: Height 5.8m
Framework Material: Hard pressed extruded aluminium
6061/T6
Cover Material: PVC 750g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750g/m2
PVC Standard Colours
-
20m Octagonal Pinnacle Marquee
The 20m Octagonal Pinnacle is the largest of its range. This marquee can be upgraded to include cassette style flooring, glass walls and a variety of other chic add-ons.
Frame Specifications
Diameter: 20m
Eave: Height 3m
Ridge: Height 6.25m
Framework Material: Hard pressed extruded aluminium
6061/T6
Cover Material: PVC 750g/m2Package Includes
Steel Pins
Steel Pin Puller
Roof Fabrics
PVC 750g/m2
PVC Standard Colours
Pinnacle Marquees Dimensions
Spec Sheets & Certification
Product Specification Sheets
Pinnacle Specification Sheet
Engineer Certification
3mx3m Engineer Certification
4mx4m Engineer Certification
4mx4m Engineer Certification
4mx4m Engineer Certification
8mx8m 10mx10m Engineer Certification
Engineer Certification Wind Rating
Fabric Certification
Engineer Certification Fire
Instruction Manuals
6mx6m Setup Instructions
10mx10m Setup Instructions
Owners Manual Warranty

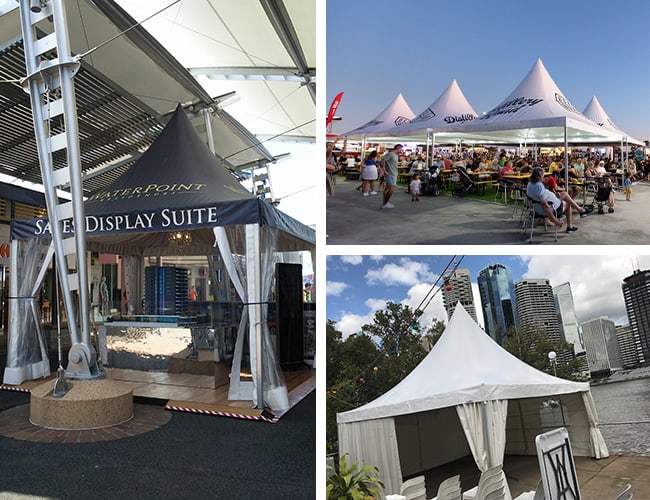

Why choose Pinnacle Marquees?

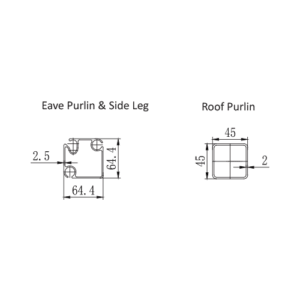

The Extreme Marquees Pinnacle range is designed for the professional exhibitor or those requiring a high level of sophistication at their event. The Pinnacle range frame is constructed from heavy duty 48×84 aluminium extrusion. The roof section is constructed with 4 aluminium bars that have a tension device at the peak. This gives the Pinnacle a streamlined and elegant appearance. The Pinnacle can be fully custom printed and has accessories available including ceilings and floors.
