200 Series Umbrella
The Spanish 200 is a technically professionally engineered outdoor umbrella shade solution. The high-quality imported fabric canopy is incorporated into one of the strongest aluminium umbrella frames on the market. The pole is designed to provide a reliably stable platform on which the canopy will sit securely for many years. Built to last and maintain a level of attractive appearance expected from a shade structure of this class, the structure is complemented by the addition of imported Spanish Recasens fabric available in 20 colours. Custom branding is offered for logos and company names.
Sizes
3m x 3m Square
FROM $5,770
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm

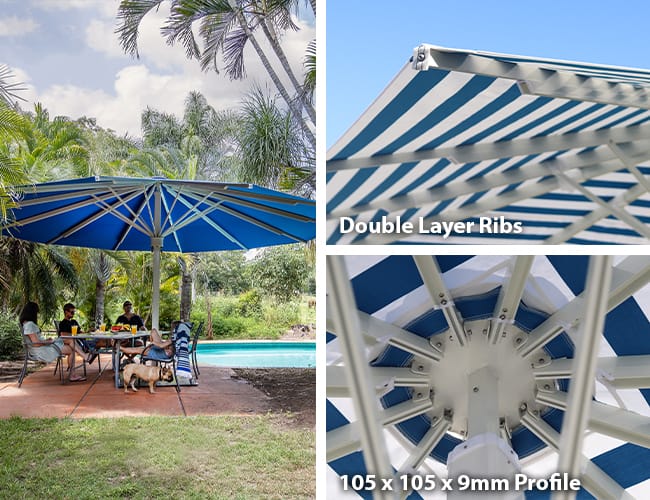

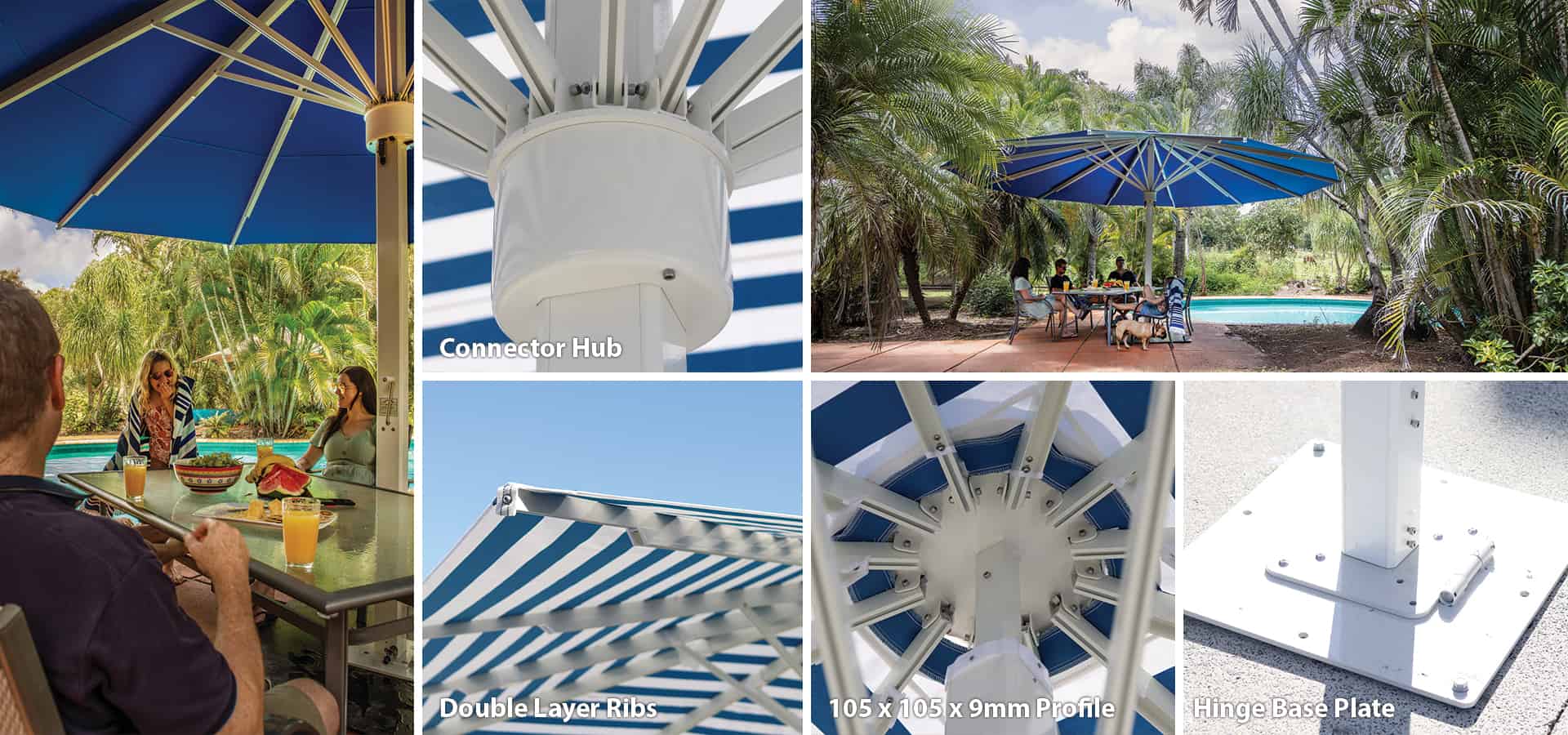

Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 3.2m
Clearance: 2.5m
Frame Weight: 83kg
Roof Weight: 10kg
4m x 4m Square
FROM $6,850
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 3.25m
Arm span: 2m
Frame Weight: 83kg
Roof Weight: 10kg

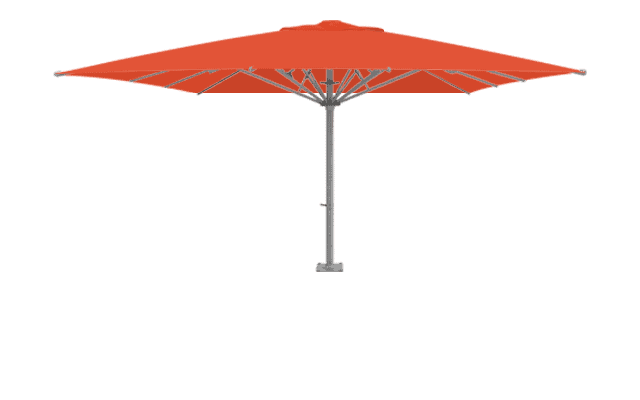

4m x 5m Square
FROM $7,200
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 3.25m
Arm Span: 2m/2.5m
Frame Weight: 88kg
Roof Weight: 11kg

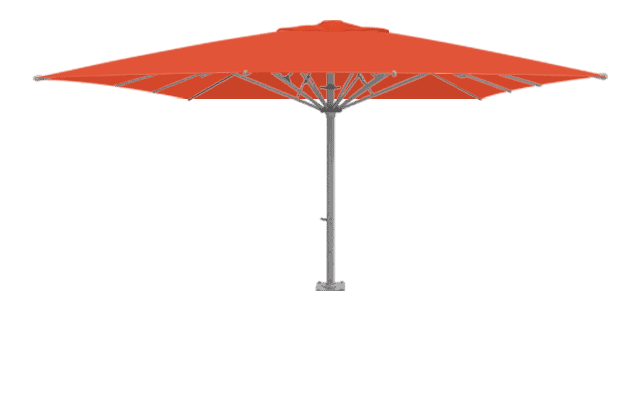

5m x 5m Square
FROM $8,525
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 3.25m
Arm Span: 2m/2.5m
Frame Weight: 110kg
Roof Weight: 12kg

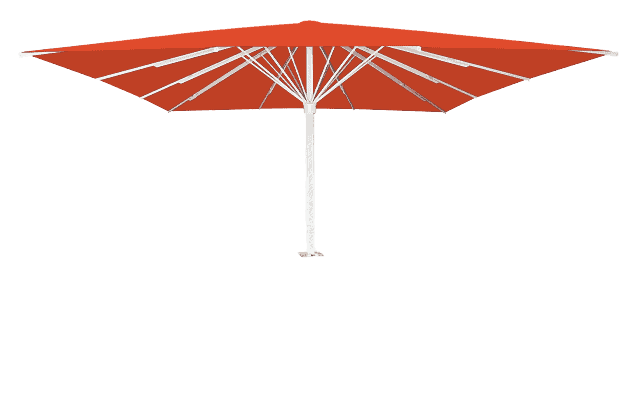

6m x 6m Square
FROM $9,495
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 2.45m
Arm Span: 1.5m/4.25m
Frame Weight: 155kg
Roof Weight: 15kg
4m Diameter Octagonal
FROM $6,206
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 3.25m
Arm Span: 2m
Frame Weight: 83kg
Roof Weight: 10kg
5m Diameter Octagonal
FROM $8,045
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 3.25m
Arm Span: 2.5m
Frame Weight: 88kg
Roof Weight: 12kg

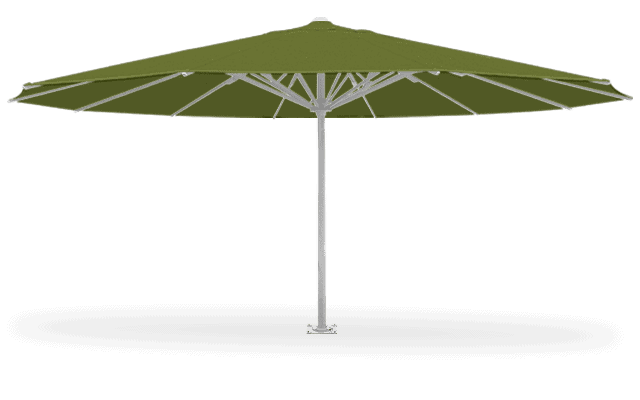

6m Diameter Octagonal
FROM $8,230
Frame: Aluminium
Frame Colour: White
Pole Size: 105 x 105 x 9mm
Ribs: 12 double layered
Small Rib: 30 x 20 x 2mm
Large Rib: 20 x 40 x 2mm
Open Wind Rating: 60kph
Closed Wind Rating: 140kph
Base: 30kg Steel Plate
Opened Height: 4.35m
Clearance: 3.25m
Arm Span: 2.9m
Frame Weight: 110kg
Roof Weight: 14kg
Printing and Fabrics

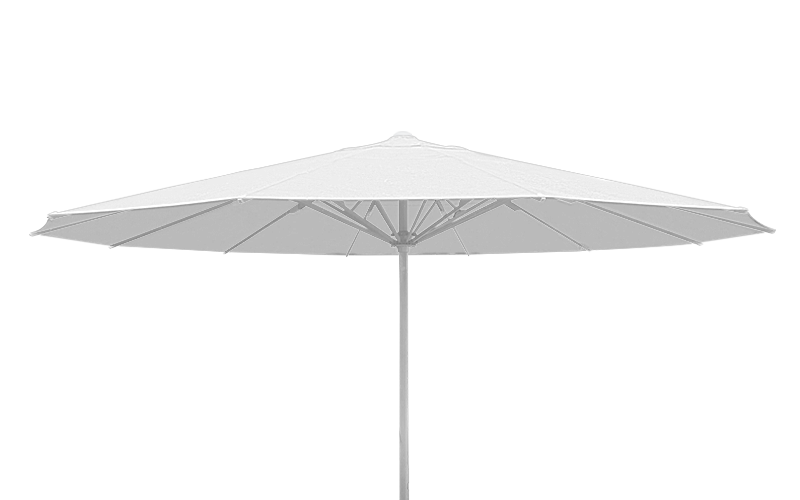

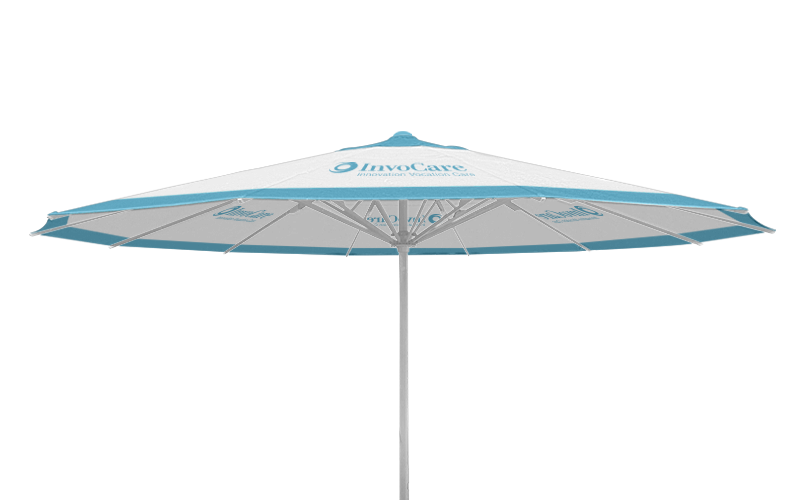

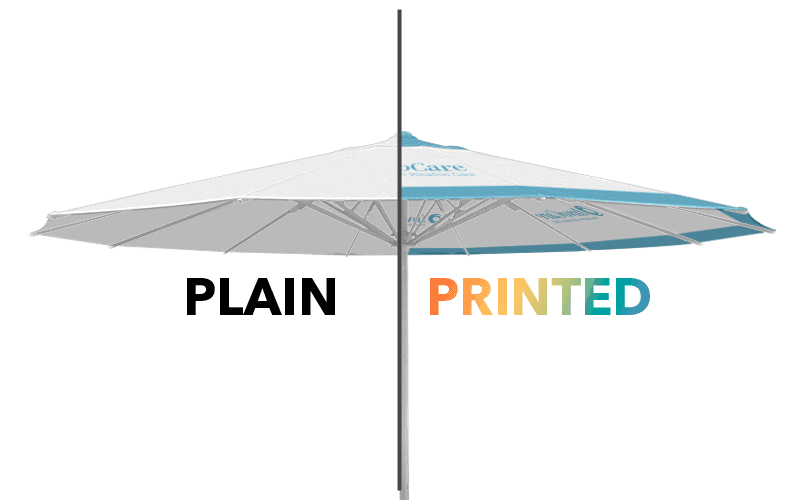

We offer custom printing on a wide range of products. Don’t forget to checkout our available print packages!
Spanish Recasens
Extreme Marquees imports the highest quality fabric from the Recasens brand located in Spain. The fabric is a high-performance solution-dyed and fade resistant canvas that has been optimized for high tensile and tear strength. The Recasens brand has been manufacturing high quality fabrics in Spain since 1886.
Screen Printing
Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities. Extreme Marquees charges the same price for all printing methods. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.
UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design.
Sublimination Printing
Sublimation printing, also known as dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the marquee fabric and exposed to a temperature of 200 degrees celsius. The artwork is then transferred from the paper to the marquee fabric.
Ready to find out more?
Videos
Extreme Marquees have an extensive range of commercial and residential outdoor umbrella solutions. We design and manufacture premium, high quality umbrellas, built strong and robust to guarantee years of use under the hot Australian sun. There is an umbrella to suit all needs. Extreme Marquees offers an extensive range of extruded marine grade aluminium umbrellas ranging from our 2×2 metres heavy duty PVC umbrella all the way up to our 200 series 6 metre diameter umbrella. The quality of the frames are evident at a glance with the imported commercial grade fabrics enhancing both style and visual appeal.
A variety of frame strengths and fabrics provides the perfect blend for your customised bespoke umbrella. Choose from the popular circular 100mm diameter pole of the 100 Series to the heavy duty 200 series 105mm diameter pole.
Also available in our commercial range of umbrellas is the HD PVC. This series is constructed with white blockout heavy duty PVC used in the construction of large event marquees. The PVC canopy will last more than a decade enduring the harsh Australian weather 24/7, 365 days a year. The blockout PVC can be washed clean regularly, leaving it looking as good as the day it was purchased. The HD PVC range and the 200 Series commercial grade umbrellas both have structural engineer’s certification which is necessary if installation is in a public place. The HD PVC commercial umbrella has an advanced, internal, reinforced frame. The distinctively engineered pole design offers incredible strength resulting in safety of operation and long term durability.
