CREST EVENT MARQUEES, SHELTERS AND GAZEBOS

If you want to buy a large wedding marquee, tent or gazebo perfect for outdoor weddings, functions or receptions, our Crest range is the one for you. These large-scale event marquees start at a width of 3 metres and go all the way up to a clear span of 60 metres. The length uses modular bays that can be added to create virtually any length marquee you can imagine. If you have an event that needs a large-scale function tent, we can manufacture an event gazebo tent at a size that will suit you. These wedding marquees offer strength, durability and coverage that cannot be matched by any other style of marquee. These huge shade structures have been used for weddings, walkways, promotional events and large-scale storage sheds, so if you need cover on a large scale, contact us today.

CUSTOMISE YOUR CREST EVENT MARQUEE

Our Crest range of wedding gazebo tent are designed for those wanting to hold a family event, wedding or function. As one of Australia’s leading marquee manufacturers and suppliers or custom printed gazebos, Extreme Marquees offers Crest marquees in many sizes and can be completely customised to meet your requirements. The width or “clear span” of our Crest range starts at just 3 metres and can be as wide as an incredible 60 metres. The length is virtually unlimited, being made up of individual bays that can be added on as needed. Bays can be 3 or 5 metres. Popular sizes are 6×12, ideal for home party’s and 10×20 which are suitable for wedding receptions or corporate events. Modular floor systems, beautiful fabric ceilings and glass walls and doors are all options for this marquee range. The Crest range can also be fully custom printed for those wishing to transform their gazebo tent into a major promotional product.

fs series 84
Extreme Marquees Function Standard Full Set Up With Church Window Walls and Plain Gables

The Function Standard is the start for our professional 3m bay event range. The Function Standard 2 offers popular clear-span widths of 6m and 8m with an eave height 2.5m. The Event Tent series are available with a complete range of accessories including sidewalls with clear windows, roof lining glass wall & door systems ABS solid walling system & flooring system.

Marquee Size
Clear-Span Width:
3m / 4m / 5m / 6m / 8m
Bay Distance: 3m
Minimum Tent Length: 3m
Maxmimum Tent Length: No Limit

Frame Specifications
Eave Height: 2.6m
Roof Pitch: 20º
Main Profile:
84 x 48 x 3mm (2-channel)
Max Allowed Windspeed:
80km/hr 0.3kn/m2
Eave Connection:
Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)

Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC

Cover Material
850gsm White or Coloured PVC
950gsm Clear PVC

Printing
Full Roof Digital Printing available

Wall Fabrics
650gsm White PVC
850gsm Coloured PVC
950gsm Clear PVC

PVC Standard Colours

Extreme Marquees Event Crest Marquee Colours

Accessories
PVC Window Sidewalls
Rain Gutter
Lining & Curtains
Glass & Aluminium Door Units
Transparent PVC Cover & Sidewall
Flooring Systems
Weight Plate

3 gallery thubnails malenygolfclub
2 gallery thubnails brisbane high
1 gallery thubnails bendio bank
1 gallery thubnails nandroya wines
em crest tile the wesley hospital 02
crest lazy ballerina tile photo 1
  • Accepted file types: pdf, png, jpg.
    Filetypes: pdf, jpg, png. Limit 2MB
  • T&C’s apply
  • This field is for validation purposes and should be left unchanged.


Gable Span Bay Length Eave Height Ridge Height Max. Tent Length
3m 3m 2.6m 3.23m No Limit
4m 3m 2.6m 3.41m No Limit
5m 3m 2.6m 3.59m No Limit
6m 3m 2.6m 3.77m No Limit
8m 3m 2.6m 4.4m No Limit
Extreme Marquees Function Standard Main Frame Profile with Dimensions
Extreme Marquees Function Standard Main Profile of Frame
Profile Drawing of Extreme Marquees Function Standard
Event Crest Roof Purlin Profile for Extreme Marquees
Extreme Marquees Function Standard Drawing of Frame Profile with Dimensions

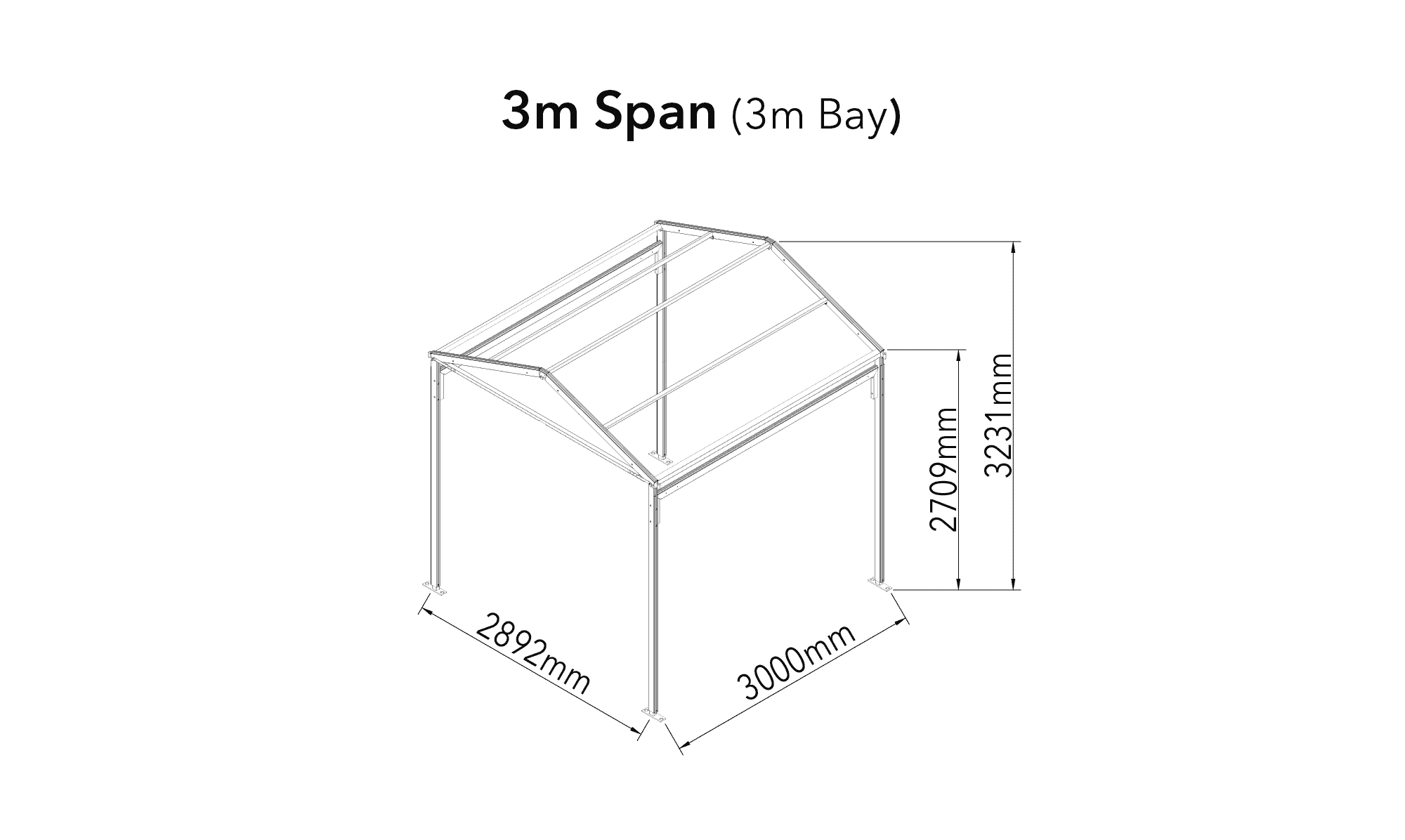

3M GABLE SPAN

Extreme Marquees Function Standard Technical Frame Drawing 3m x 3m

4M GABLE SPAN

Function Standard 4m x 3m Event Marquee

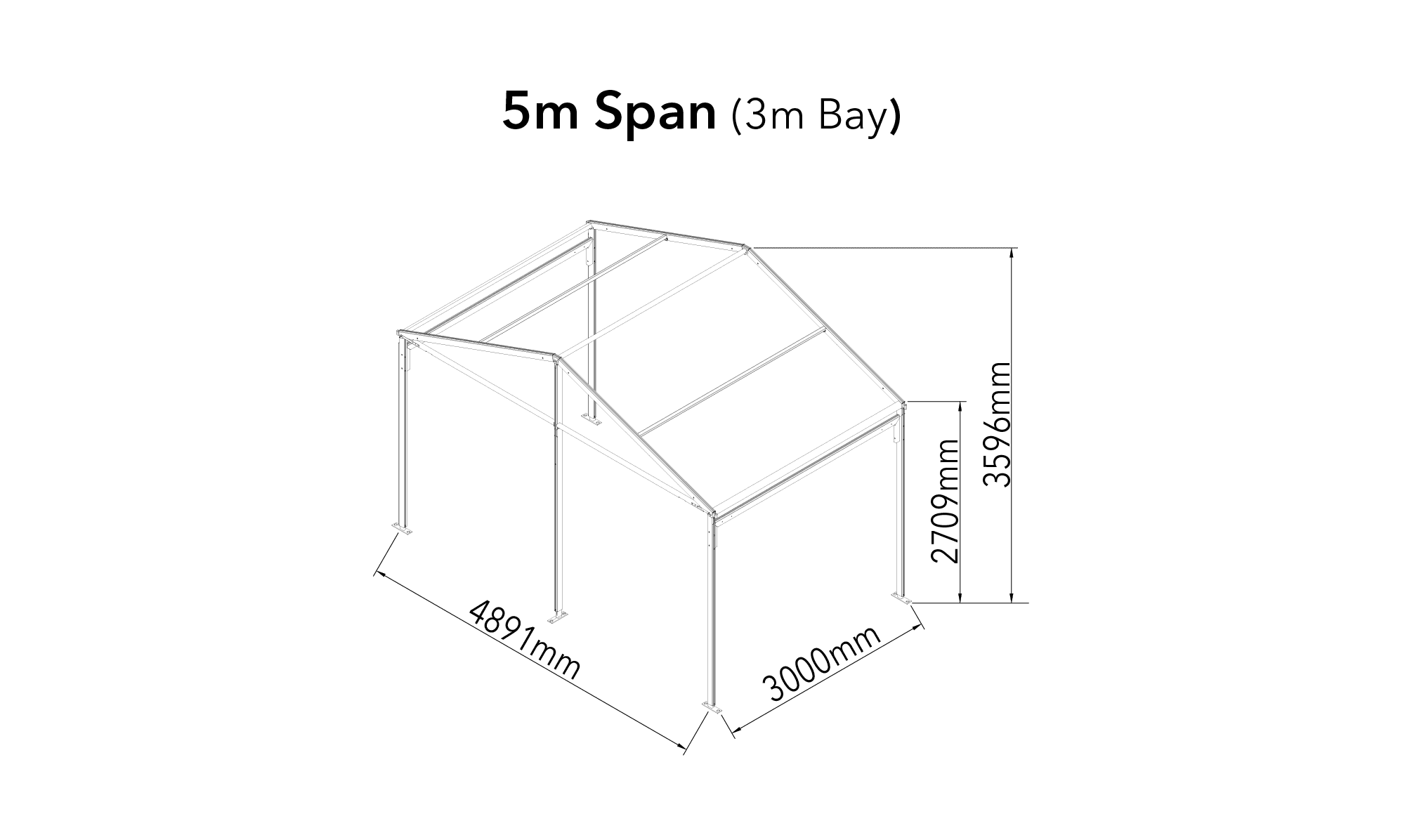

5M GABLE SPAN

Function Standard 5m x 3m Event Tent

6M GABLE SPAN

3m x 6m Wedding Function Standard White Event Marquee

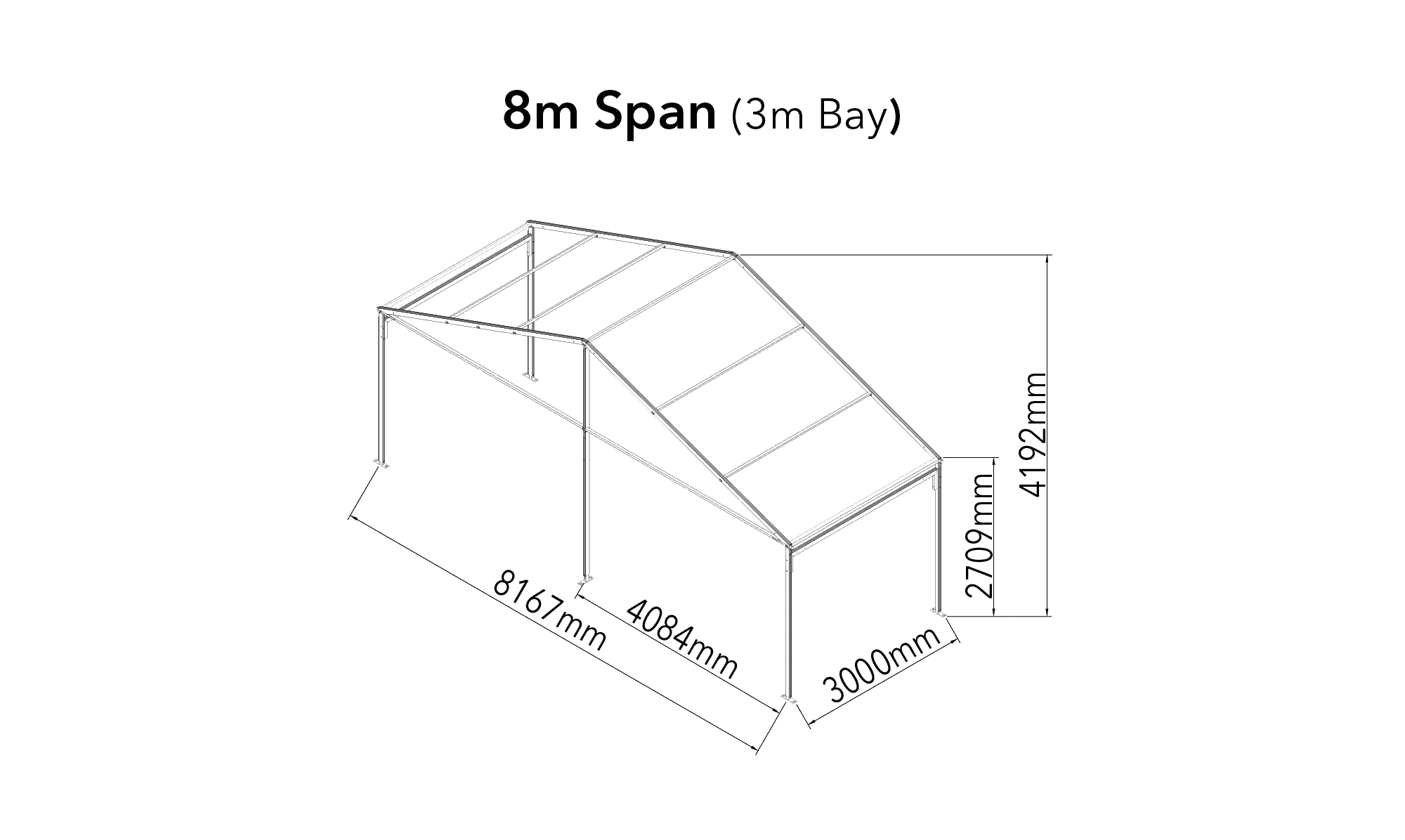

8M GABLE SPAN

Extreme Marquees Function Standard Technical Frame Drawing with Dimensions for One Bay 8m x 3m
fd series 100
Extreme Marquees Function Deluxe Series with a Clear Roof

The Deluxe mirrors the traditional functionality of the Standard. The key enhancements are a sturdy 100x 48 x 3mm framework and a new mounting for the sidewalls that improves weatherproofing and a roof tension system. The larger frame profile allows the Deluxe to extend to 10m clearspan with 3m wide bays. The Deluxe offers a robust design in an attractive, modern package.

Marquee Size
Clear-Span Width:
8m / 9m / 10m / 12m
Bay Distance: 3m
Minimum Tent Length: 3m
Maximum Tent Length: No Limit

Frame Specifications
Eave Height: 2.6m
Roof Pitch: 20º
Roof Fixing: Bar Tensioning
Main Profile:
100 x 48 x 3mm (4-channel)
Max Allowed Windspeed:
80km/hr 0.3kn/m2
Eave Connection:
Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)

Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC

Cover Material
850gsm White or Coloured PVC
950gsm Clear PVC

Printing
Full Roof Digital Printing available

Wall Fabrics
650gsm White PVC
850gsm Coloured PVC
950gsm Clear PVC

PVC Standard Colours

Extreme Marquees Event Crest Marquee Colours

Accessories
PVC Window Sidewalls
Rain Gutter
Lining & Curtains
Glass & Aluminium Door Units
Hard Walling System
Glass Walling System
Transparent PVC Cover & Sidewall
Flooring Systems
Weight Plate

1 gallery thubnails vinyard resory
1 gallery thubnails nudgee cemetery
1 gallery thubnails weastside college
1 gallery thubnails sydney uni
em gallery label tiles mcclarenvale
crest gallery tile hope ministries international 1
  • Accepted file types: pdf, png, jpg.
    Filetypes: pdf, jpg, png. Limit 2MB
  • T&C’s apply
  • This field is for validation purposes and should be left unchanged.
Clear-Span Width Bay Width Eave Height Ridge Height Max. Tent Length
8m 3m 2.6m 3.8m No Limit
9m 3m 2.6m 3.95m No Limit
10m 3m 2.6m 4.2m No Limit
12m 3m 2.6m 4.3m No Limit
Function Deluxe White Event Marquee Profile
Extreme Marquees Function Deluxe 100 Series Main Frame Profile
Extreme Marquees Function Deluxe Drawing of Frame Profile
Extreme Marquees Function Deluxe Frame Profile Drawing with Dimensions

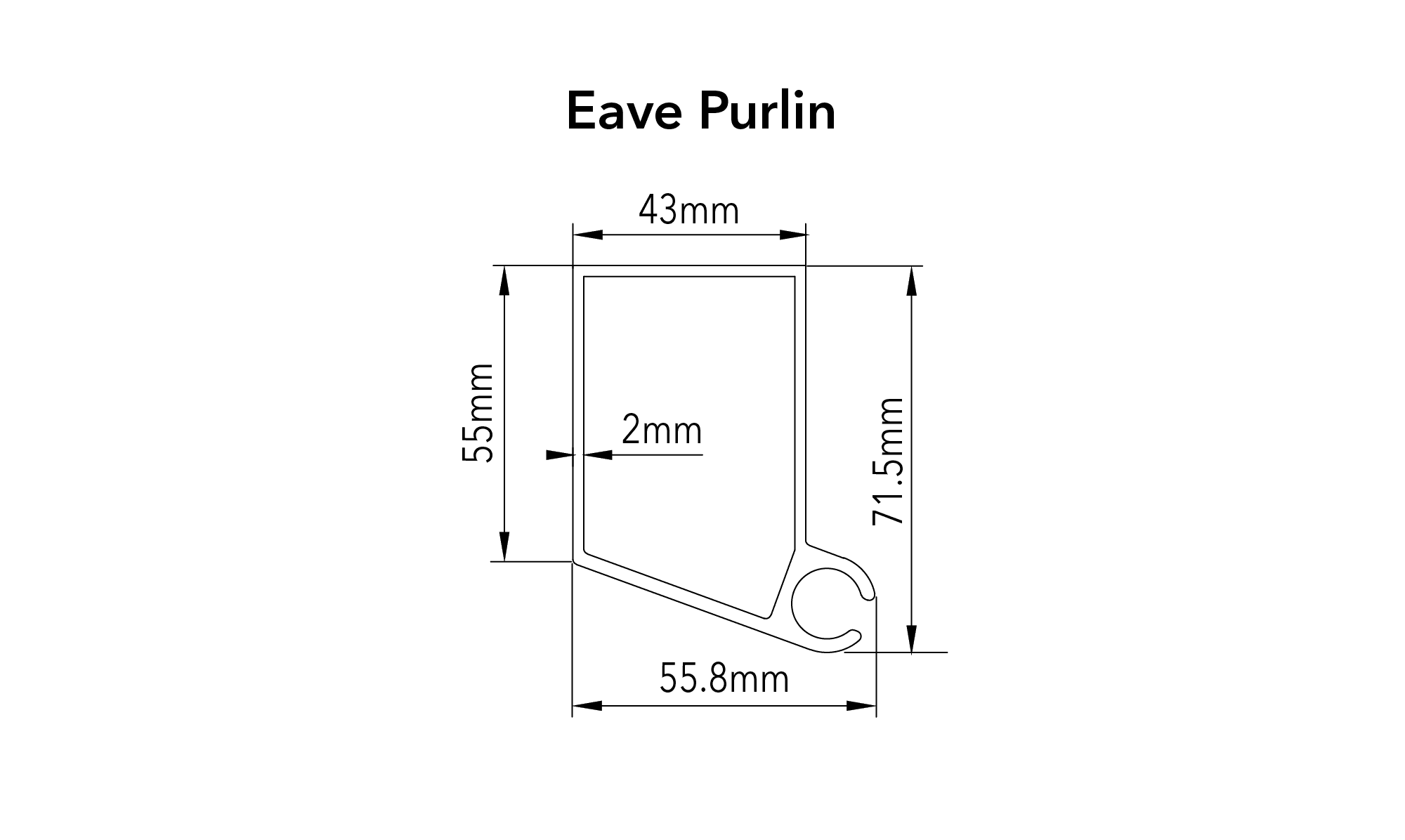

Function Deluxe Gable Eve Rail large Extreme Tent

10M GABLE SPAN

Function Deluxe 10m x 3m Big Tent Extreme Marquee

12M GABLE SPAN

Function Deluxe 12m x 3m Event Marquee

8M GABLE SPAN

Extreme Marquees Function Deluxe Single Bay Technical Drawing 8m x 3m

9M GABLE SPAN

Function Deluxe 9m x 3m Event Marquee
es series 122
Extreme Marquees Event Standard Marquee with Printed Gables and Full Clear PVC Walls

The Event Standard is the start for our professional 5m bay event range. The Event Standard 2 offers popular clear-span widths of 8m, 10m and 12m with an eave height 3m. The Event Tent series are available with a complete range of accessories including sidewalls with clear windows, roof lining glass wall & door systems ABS solid walling system & flooring system.

Marquee Size
Clear-Span Width: 8m / 10m / 12m
Bay Distance: 5m
Minimum Tent Length: 5m
Maximum Tent Length: No Limit

Frame Specifications
Eave Height: 3m
Roof Pitch: 20º
Roof Fixing: Bar Tensioning
Main Profile:
122 x 68 x 3mm (4-channel)
Max Allowed Windspeed:
80km/hr 0.3kn/m2
Eave Connection:
Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)

Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC

Cover Material
850gsm White or Coloured PVC
950gsm Clear PVC

Printing
Full Roof Digital Printing available

Wall Fabrics
650gsm White PVC
850gsm Coloured PVC
950gsm Clear PVC

PVC Standard Colours

Extreme Marquees Event Crest Marquee Colours

Accessories
PVC Window Sidewalls
Rain Gutter
Lining & Curtains
Glass & Aluminium Door Units
Hard Walling System
Glass Walling System
Transparent PVC Cover & Sidewall
Flooring Systems
Weight Plate

1 gallery thubnails redland bay
1 gallery thubnails south rugby
1 gallery thubnails gold coast uni
1 gallery thubnails bendio bank
em gallery label tiles velquip pty ltd
  • Accepted file types: pdf, png, jpg.
    Filetypes: pdf, jpg, png. Limit 2MB
  • T&C’s apply
  • This field is for validation purposes and should be left unchanged.
Clear-Span Width Bay Width Eave Height Ridge Height Max. Tent Length
8m 5m 3m 4.45m No Limit
10m 5m 3m 4.8m No Limit
12m 5m 3m 5.2m No Limit
Event Standard Large Wedding Marquee Frame Profile
Event Standard Series 122 Frame

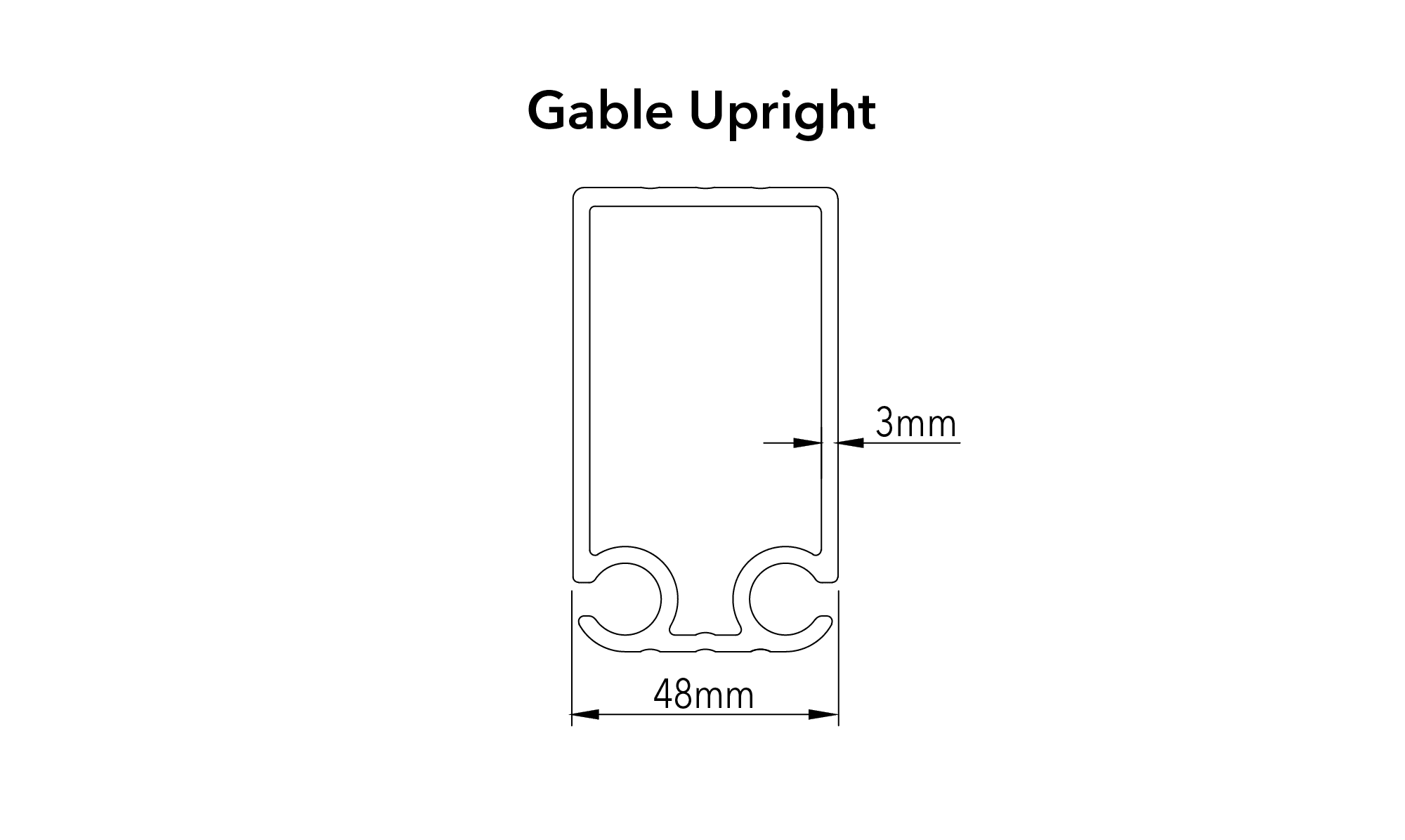

Frame Profile Drawing for Extreme Marquees Event Standard Crest Marquee
Extreme Marquees Event Standard Profile Drawing
Extreme Marquees Event Standard Frame Profile Drawing with Dimensions

8M GABLE SPAN

Extreme Marquees Event Standard Technical Drawing with Dimensions for One Bay 8m x 5m

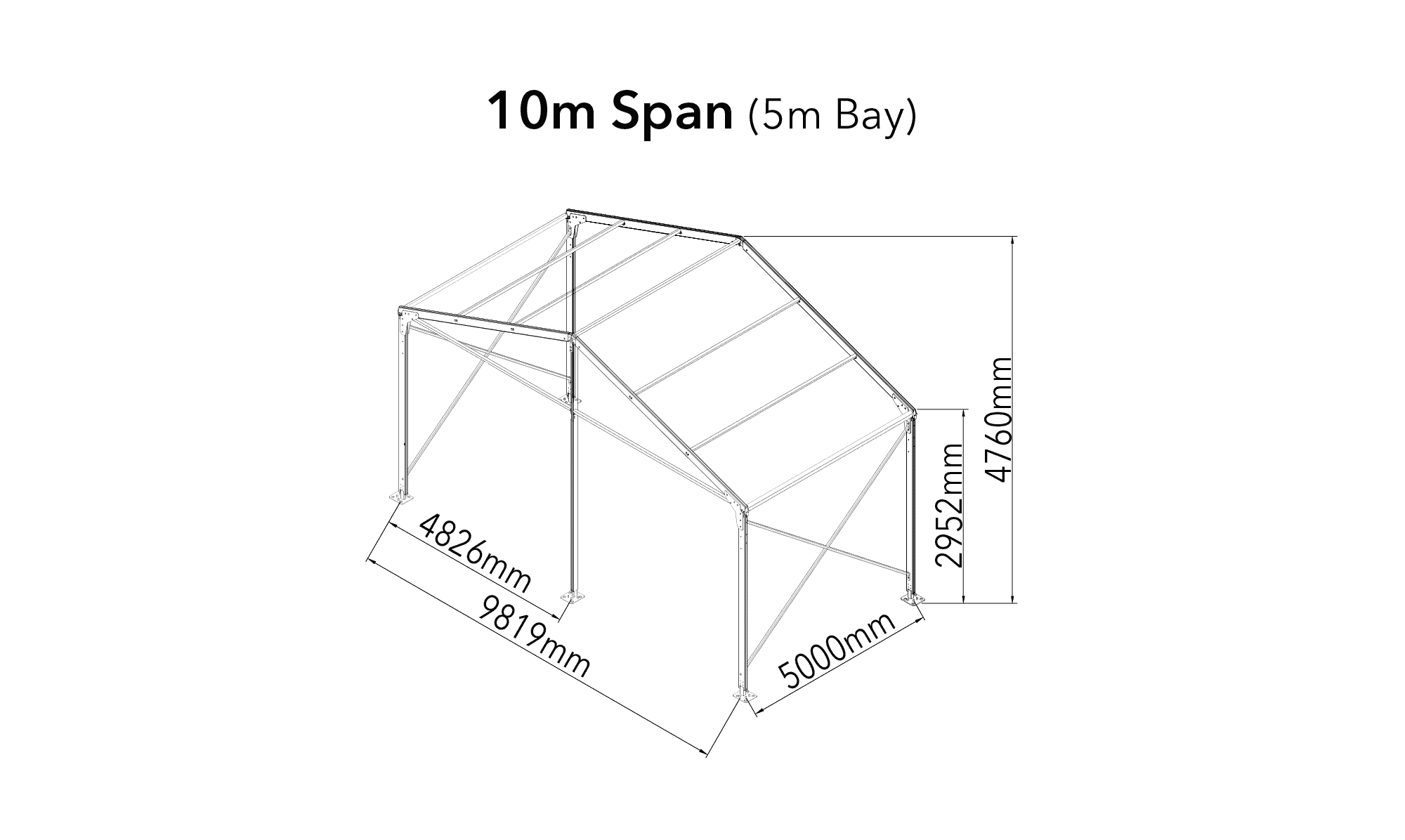

10M GABLE SPAN

Extreme Marquee Event Standard Technical Drawings with Dimensions for One Bay 10m x 5m

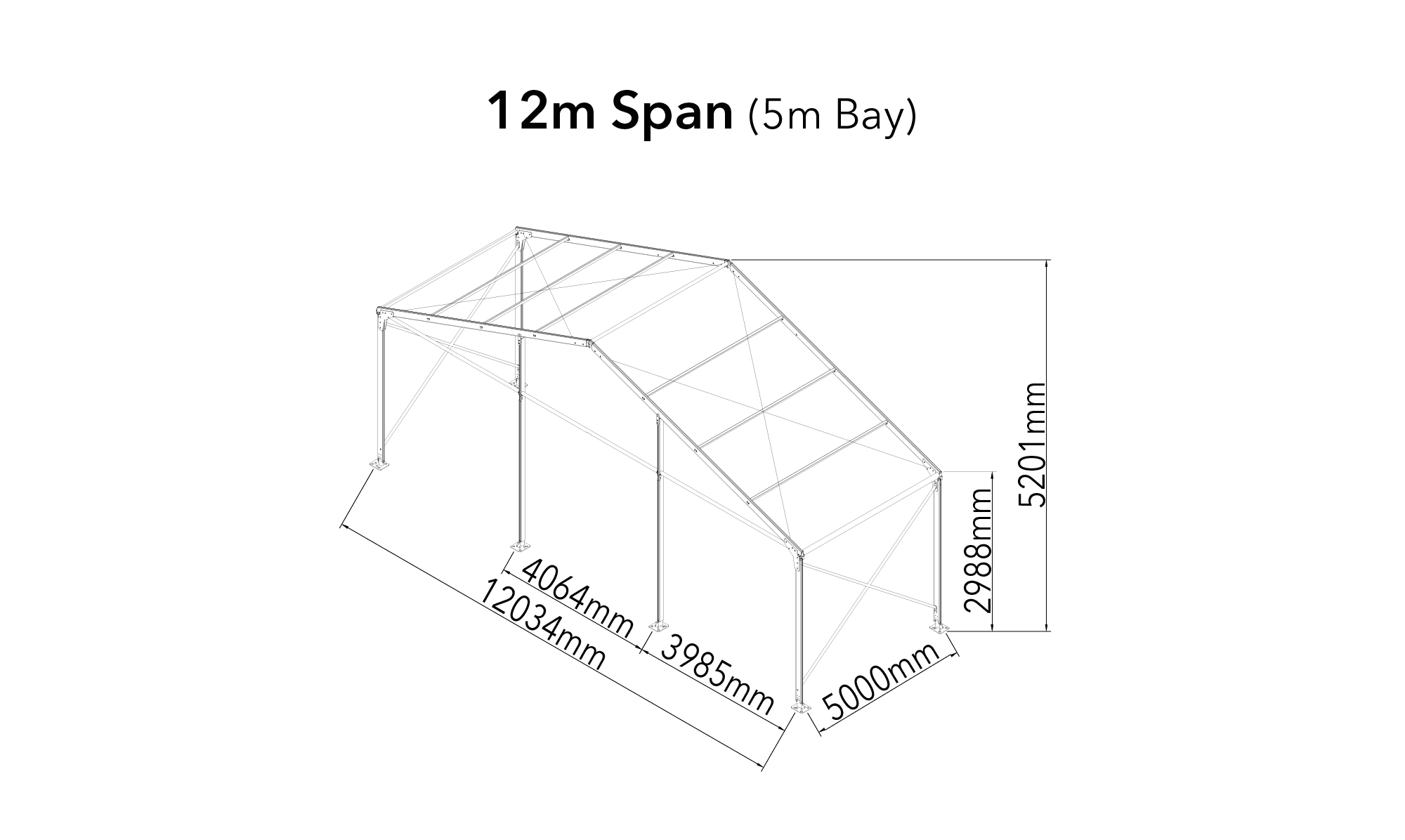

12M GABLE SPAN

Extreme Marquees Event Standard 12m x 5m Single Bay Crest
ed series 166
Extreme Marquees Event Deluxe Set Up with Full White Gables and Church Window Walls

The Event Deluxe is a robust large marquee available in 10m, 12m &15m, widths with a minimum of 15m length (3x5m bays). The Deluxe 2 employs massive 166 x 88 x 3mm profile frame that allows a wind loading of 80kmh. With a 3m eave height the Event Deluxe 2 is ideal for outdoor temporary exhibition, business promotions, sports events, temporary warehouse, workshop and emergency relief work.

Marquee Size
Clear-Span Width: 10m / 12m / 15m
Bay Distance: 5m
Minimum Tent Length: 15m
Maximum Tent Length: No Limit

Frame Specifications
Eave Height: 4m
Roof Pitch: 18°
Bay Distance: 5m
Main Profile:
166 x 88 x 3mm (4-channel)
Max Allowed Windspeed: 80km/hr
Eave Connection: Hot galvanizd steel
Eave Connection:
Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)

Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC

Cover Material
850gsm White or Coloured PVC
950gsm Clear PVC

Printing
Full Roof Digital Printing available

Wall Fabrics
650gsm White PVC
850gsm Coloured PVC
950gsm Clear PVC

PVC Standard Colours

Extreme Marquees Event Crest Marquee Colours

Accessories
PVC Window Sidewalls
Rain Gutter
Lining & Curtains
Glass & Aluminium Door Units
Hard Walling System
Glass Walling System
Transparent PVC Cover & Sidewall
Flooring Systems
Weight Plate

1 gallery thubnails higher wedding
1 gallery thubnails grand view
1 gallery thubnails hp farm
1 gallery thubnails weastside college
  • Accepted file types: pdf, png, jpg.
    Filetypes: pdf, jpg, png. Limit 2MB
  • T&C’s apply
  • This field is for validation purposes and should be left unchanged.
Clear-Span Width Bay Width Eave Height Ridge Height Max. Tent Length
10m 5m 3m 4.8m No Limit
12m 5m 3m 5.2m No Limit
15m 5m 3m 5.5m No Limit
Extreme Marquees Event Deluxe Main Frame Profile
Extreme Marquees Event Deluxe Crest Marquee Main Frame Profile
Extreme Marquees Event Deluxe Drawing of Frame Profile
Frame Profile Drawing for Extreme Marquees Event Deluxe Crest Marquee

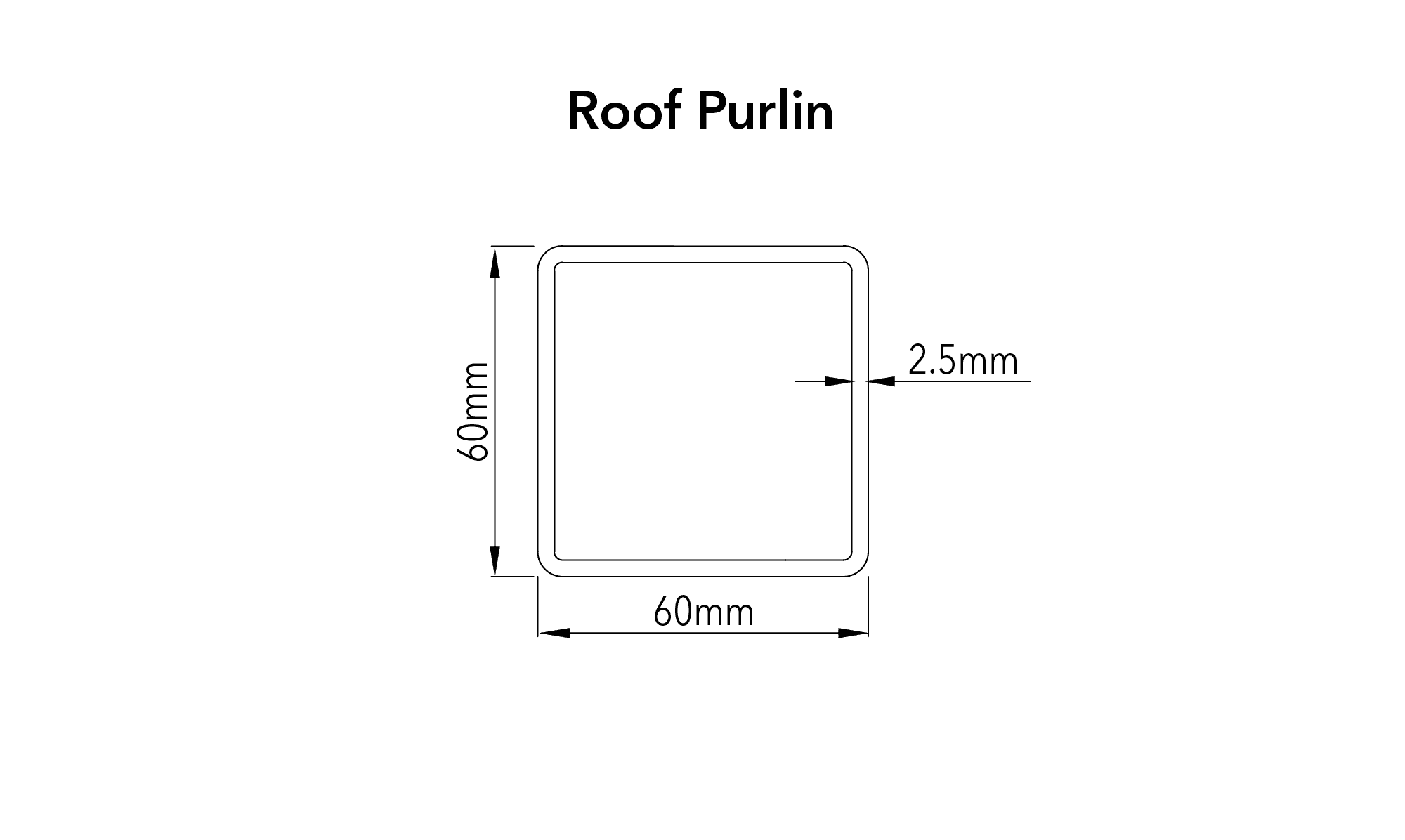

Event Deluxe Purlin Profile for Large Event Marquee

10M GABLE SPAN

Extreme Marquees Event Deluxe Technical Drawings with Dimensions

12M GABLE SPAN

Event Deluxe 12m x 5m Extreme Marquee Event Marquee Frame

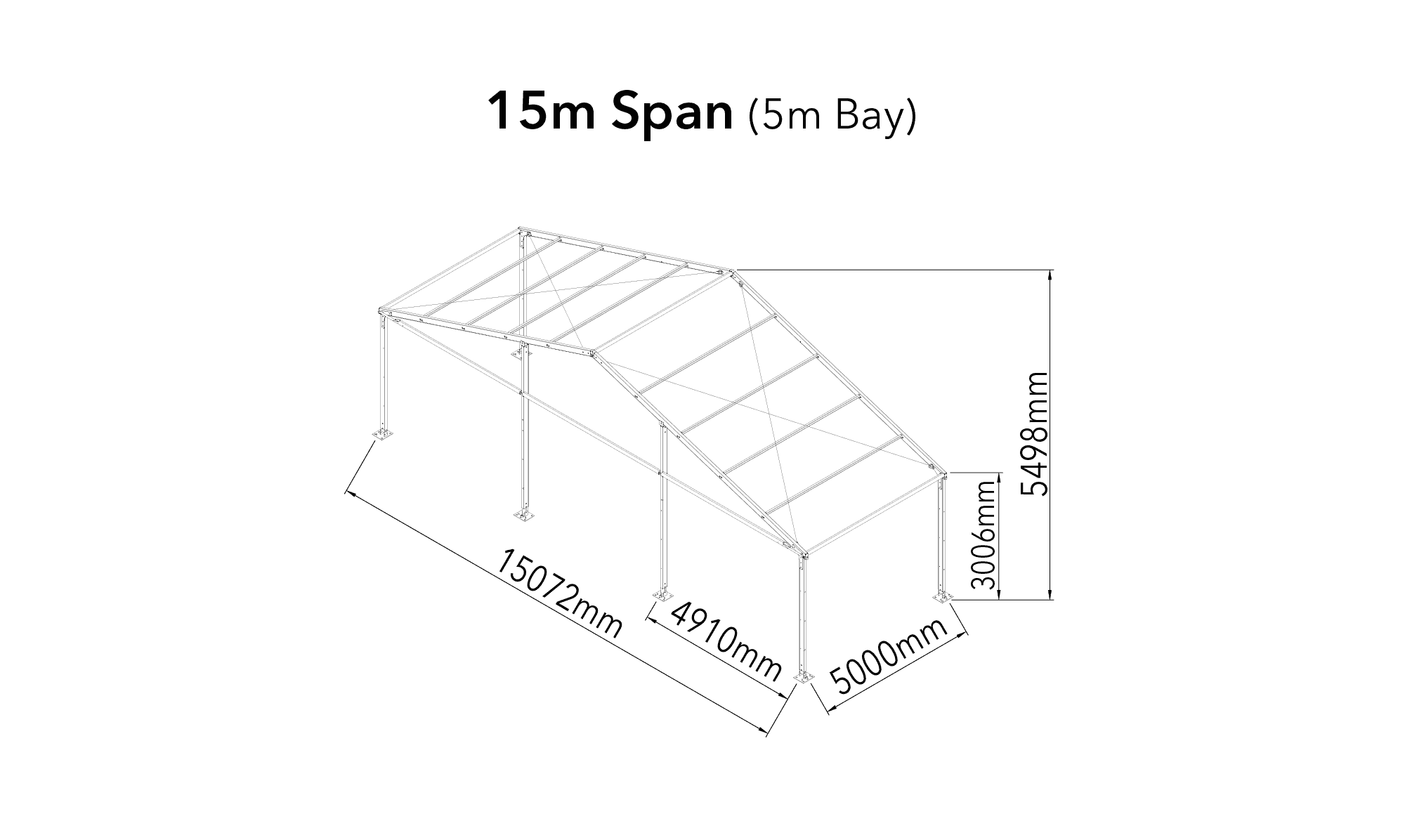

15M GABLE SPAN

Event Deluxe 15m x 5m Span Large Event Marquee
ec series 203
Extreme Marquees Extreme Crest Clear Crest Setup

The Extreme Crest is the biggest marquee structure in our range. The marquees are built to create clear spans for the largest commercial purposes. With clear spans ranging up to 60m across, these structures are at the pinnacle of marquees.

Marquee Size
Clear-Span Width:
15m / 20m / 25m
Bay Distance: 5m
Minimum Tent Length: 15m
Maxnimum Tent Length: No Limit

Frame Specifications
Eave Height: 4m
Ridge Height: 5.58m / 7.44m / 7.96m
Roof Pitch: 18º
Main Profile: 203 x 112 x 4mm
(4-channel)
Max Allowed Windspeed: 80km/hr 0.5kn/m2
Eave Connection: Hot-dip galvanized twin steel plate
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)

Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC

Cover Material
850gsm White or Coloured PVC
950gsm Clear PVC

Printing
Full Roof Digital Printing available

Wall Fabrics
650gsm White PVC
850gsm Coloured PVC
950gsm Clear PVC

PVC Standard Colours

Extreme Marquees Event Crest Marquee Colours

Accessories
PVC Window Sidewalls
Rain Gutter
Lining & Curtains
Glass & Aluminium Door Units
Hard Walling System
Glass Walling System
Transparent PVC Cover & Sidewall
Flooring Systems
Weight Plate

1 gallery thubnails mackay marina
1 gallery thubnails royal navy
1 gallery thubnails darwin free
1 gallery thubnails seventh day
  • Accepted file types: pdf, png, jpg.
    Filetypes: pdf, jpg, png. Limit 2MB
  • T&C’s apply
  • This field is for validation purposes and should be left unchanged.
Gable Span Bay Length Eave Height Ridge Height Max. Tent Length
15m 5m 4m 6.63m No Limit
20m 5m 4m 7.44m No Limit
25m 5m 4m 7.96m No Limit
Extreme Marquees Extreme Crest Main Frame Profile
Extreme Marquees Extreme Crest Main Frame Profile

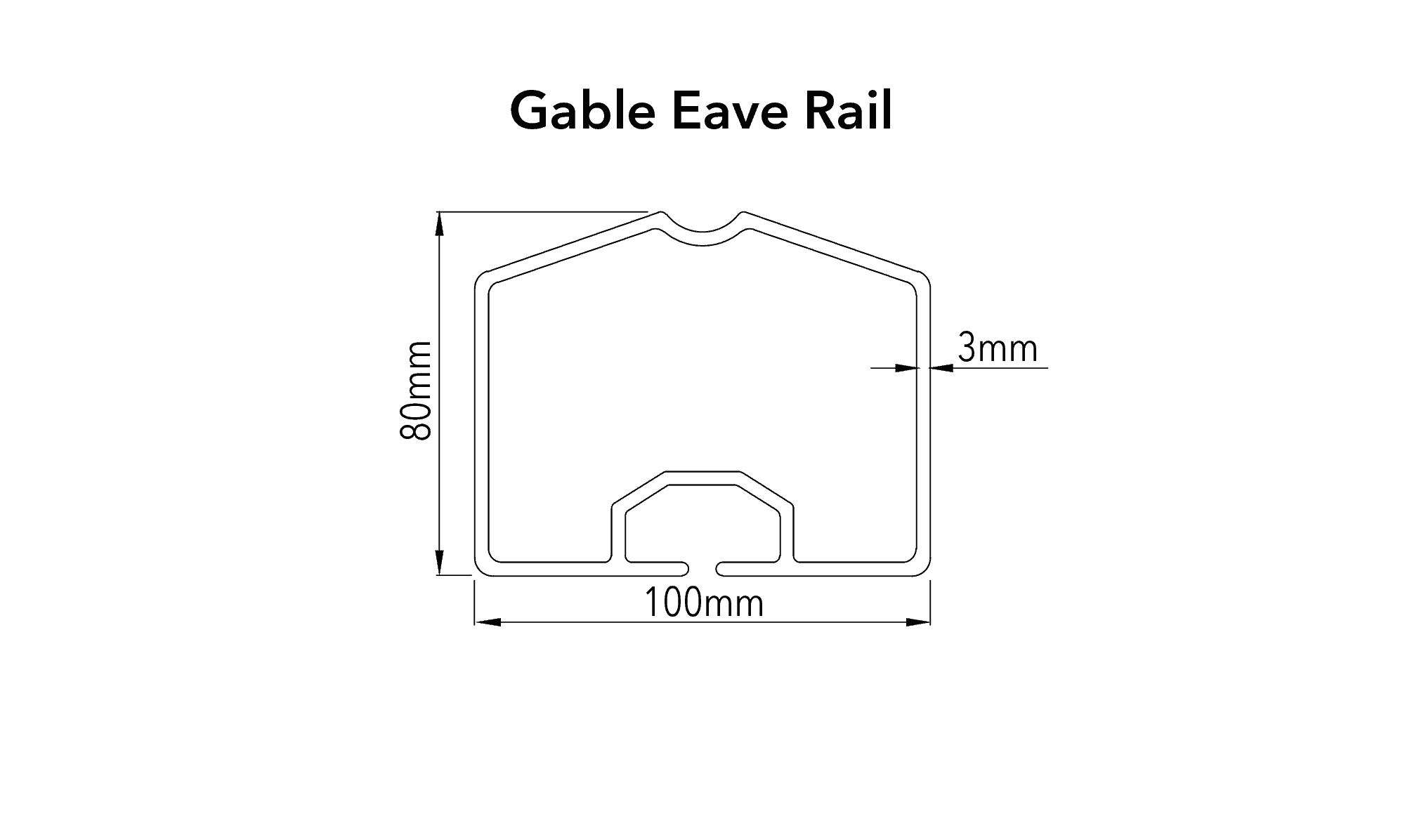

Event Crest Marquee Frame Bracket Extreme Marquees
Extreme Marquees Extreme Crest Frame Profile Drawing with Dimensions
Extreme Crest Profile Drawing with Dimensions

15M GABLE SPAN

Technical Drawings for Extreme Marquees Extreme Crest with Dimensions

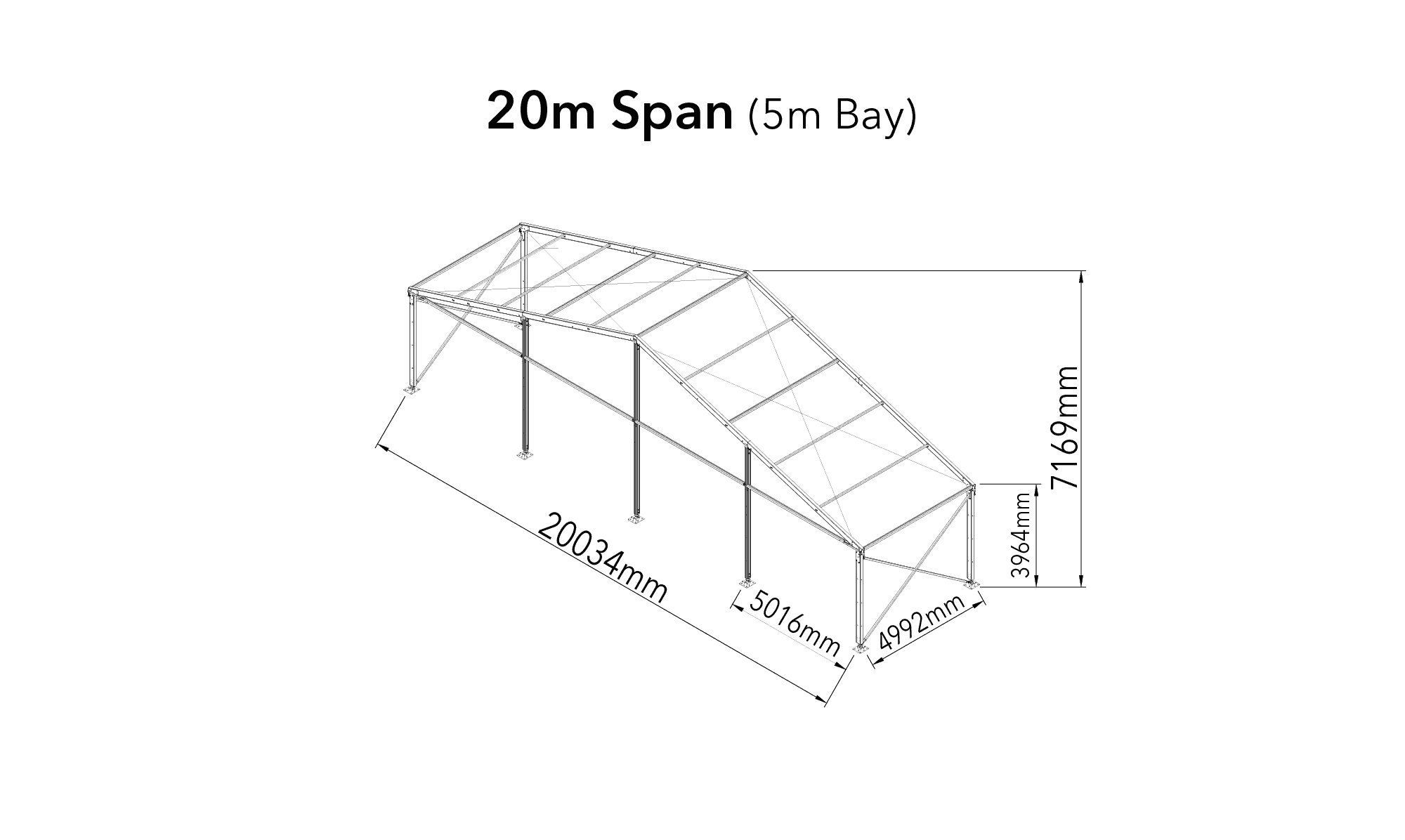

20M GABLE SPAN

Extreme Crest Technical Drawing with Dimensions for One Bay 20m x 5m

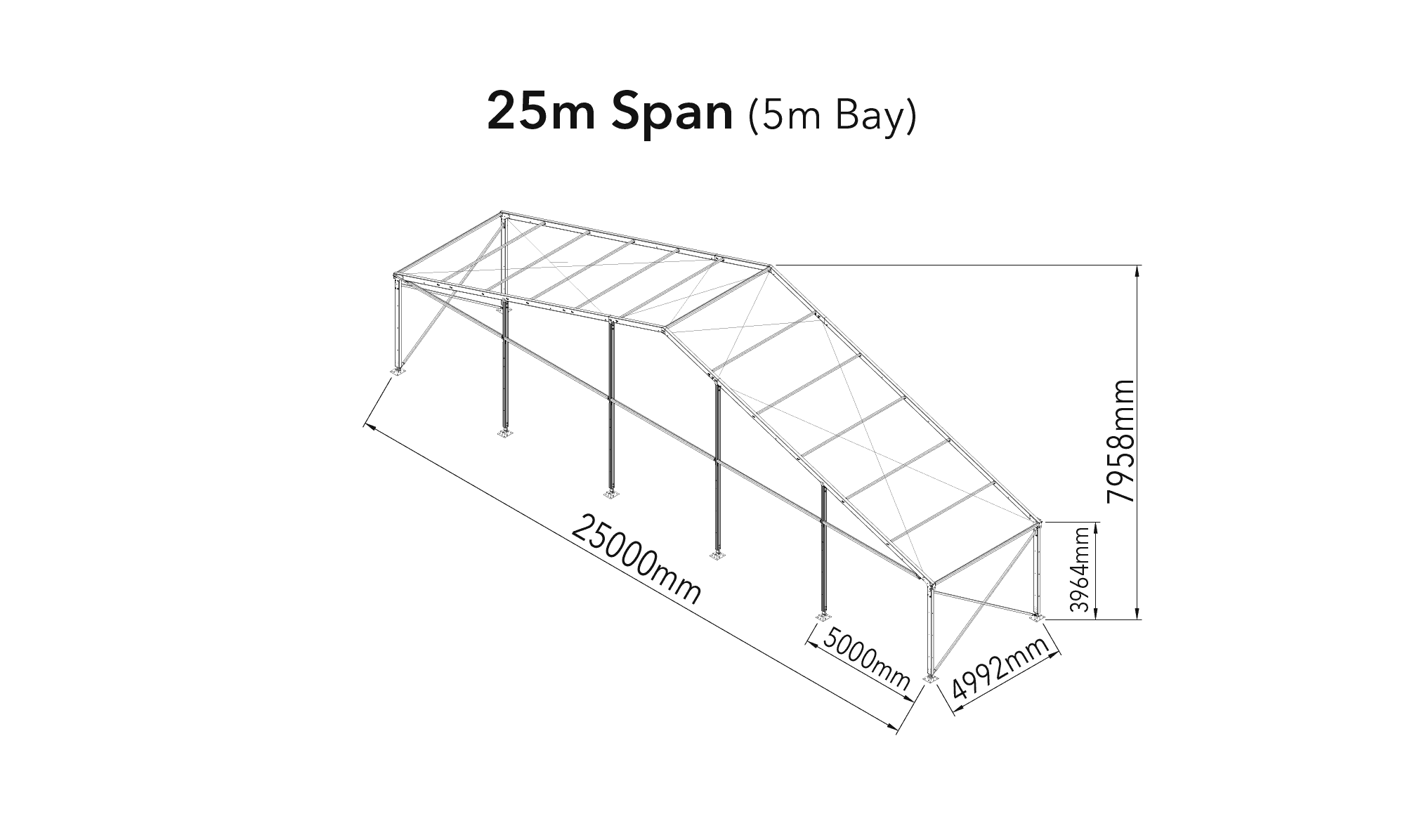

25M GABLE SPAN

Extreme Marquees Extreme Crest Technical Drawing with Dimensions for One Bay 25m x 5m


Event Crests are transported in a custom made steel frame container enclosed by a sturdy PVC cover. These transport boxes are custom to each order and are important to ensure the safety and protection of the Event Crest during transit and while in storage. Event Crests above a 12m span require a transit box however larger elements such as roof beams are shipped separate.

Transit Box Sizing
          Event Crest 3x9m – Box 3.0m x 0.6 x 0.6 (LxHxW), weight 300kgs

Event Crest 6x12m – Box 3.7m x 0.7 x 0.8 (LxHxW), weight 800kgs

Event Crest 8x15m – Box  4.4m x 0.9 x 0.9 (LxHxW), weight 950kgs

Event Crest 10x20m – Box 5.6m x 1.0 x 1.2 (LxHxW), weight 1650kgs

Event Crest 12x20m – Box 6.5m x 1.3 x 1.3 (LxHxW), weight 2000kg

crest package 1 min
crest package 04
crest package 03
crest package 06
crest package 02 min
crest package 05

Our Crest range of marquees are designed for those wanting to hold a corporate event, wedding or function. Crest marquees are available in a large range of sizes and can be completely customised to meet your requirements. The width or “clear span” of our Crest range starts at just 3 metres and can be as wide as an incredible 60 metres. The length is virtually unlimited, being made up of individual bays that can be added on as needed. Bays can be 3 or 5 metres. Popular sizes are 6×12, ideal for home party’s and 10×20 which are suitable for wedding receptions or corporate events. Modular floor systems, beautiful fabric ceilings and glass walls and doors are all options for this marquee range. The Crest range can also be fully custom printed for those wishing to transform their marquee into a major promotional product.

Flooring System
Flooring System

These flooring systems are solid, waterproof & incorporate anti-slip technology making them ideal for most events.

PVC Windows
PVC Windows

Sidewalls are available with PVC clear windows in church, square, mesh and plain window varieties.

Solid Walls
Solid Walls

This lightweight, integrated system shares the same structure as the glass panels & door units allowing these items to be easily interchanged.

Glass Doors
Glass Doors

The aluminium frame glass door system is available in both single and double-winged configurations.

Ceiling Interiors
Ceiling Interiors

Add internal drapes to your event marquee for a touch of elegance.

Awnings
Awnings

These visually striking structural additions provide extra protection from the elements.

Custom Printing
Custom Printing

Digital printing on all panels is available.
Supply your artwork or our graphics team will design a layout for you.

Transport Racks
Transport Racks

These racks make transport of glass walls, doors and solid wall panels simple and safe.

Crest Marquee Portable Air Conditioning

Extreme Marquees offer a portable air conditioning solution for any marquee within our range. The air conditioning compressor and fan unit have been built onto a steel frame that can be easily moved into position on a trolley.

Transport
Transport

The air conditioning unit on the steel frame can be easily moved into position on a trolley wherever it is needed in the crest.

Installation
Installation

The frame fits under the wall leaving the compressor outside and the fan blowing cold air into the marquee.

Install Anywhere
Install Anywhere

To install, simply place the unit at the desired location and slide the wall the over the frame.

Self Contained
Self Contained

The unit is completely self contained and can be plugged into any standard power point.

customer installations completed crest projects 1

IMPORTANT INFORMATION

The Crest Tents advertised on our website have been designed and approved by our engineers to meet regulations in Australia. These tents have been designed to comply with “Temporary Structures” regulations and cannot be left up for more than 6 months for any one event. Should the time being used at one event exceed 6 months, it is considered to be a permanent structure and we will need to redesign the frame so that it will comply. This means upgrading the aluminium profiles used so that it can withstand stronger wind gusts. We will need to know the size required and the location that it will be erected so our engineer can make sure the structure is compliant. The frame will need further upgrading if it is in an area that has snow.

There are three ways to anchor the tent to the ground.
1) Steel pins ( for use on standard ground i.e  grass or soil surfaces). This is the simplest method.
2) Weight plates. Weight plates are attached to each foot and then concrete blocks are placed on each foot. Our engineer will advise the weight required.
3) If erected on a concrete slab, the frame can be anchored by concrete fixing bolts.

Engineers notes:

The relevant Australian Standards AS1170.0:2002 General principles, AS1170.1:2002 Permanent, imposed and other actions and AS1170.2:2011 Wind actions are used. The design check is in accordance with AS/NZS 1664.1:1997 Aluminum limit state design.  Design Restrictions and Limitations 2.1 The erected structure is for temporary use only and is limited to 6 months maximum at any one site establishment. 2.2 It should be noted that if high gust wind speeds are anticipated or forecast in the locality of the tent, the temporary erected structure should be dismantled. 2.3 For forecast winds in excess of (refer to summary) – all fabric shall be removed from the frames, and the structure should be completely dismantled. (Please note that the locality squall or gust wind speed is affected by factors such as terrain exposure and site elevations.) 2.4 The structure may only be erected in regions with wind classifications no greater than the limits specified on the attached wind analysis. 2.5 The wind classifications are based upon category 2 in AS. Considerations have also been made to the regional wind terrain category, topographical location and site shielding from adjacent structures. Please note that in many instances topographical factors such as a location on the crest of a hill or on top of an escarpment may yield a higher wind speed classification than that derived for a higher wind terrain category in a level topographical region. For this reason, particular regard shall be paid to the topographical location of the structure. For localities which do not conform to the standard prescribed descriptions for wind classes as defined above, a qualified Structural Engineer may be employed to determine an appropriate wind class for that the particular site. 2.6 The structures in no circumstances shall ever be erected in tropical or severe tropical cyclonic condition. 2.7 The tent structure has not been designed to withstand snow and ice loadings such as when erected in alpine regions. 2.8 For the projects, where the site conditions approach the design limits, extra consideration should be given to pullout tests of the stakes and professional assessment of the appropriate wind classification for the site.



WATCH OUR EXTREME VIDEO

  • Accepted file types: pdf, png, jpg.
    Filetypes: pdf, jpg, png. Limit 2MB
  • This field is for validation purposes and should be left unchanged.
  • This field is for validation purposes and should be left unchanged.
